Sun Sails

HDB BTO Sales Launch Promotional Overview

Promotional overview for an HDB BTO project, announcing its sales launch in November 2020. The page features an artist's impression of the residential development, showcasing multiple modern HDB blocks with a mix of grey and dark teal exterior panels, set within a landscaped environment with roads and trees. The architectural rendering provides a visual representation of the project's scale and design. A lifestyle photograph at the bottom depicts a young couple holding baby clothes in a nursery setting, suggesting the target demographic and family-friendly nature of the development. This page serves as an introductory or cover page for the HDB BTO brochure, providing high-level project information and a visual appeal rather than detailed floor plans or block layouts.

Residential Development Artist's Impression and Project Details

Artist's impression of a residential development featuring multiple blocks. The development is bounded by Sembawang Avenue, Sembawang Road, and Sembawang Link. It comprises 8 residential blocks, ranging from 6 to 13 storeys in height. A total of 726 units are available, including 2-room Flexi, 3-room, 4-room, and 5-room flats. The design is inspired by Sembawang's maritime past, with building facades mimicking sailboats and a children's playground featuring boat structures.

Artist's Impression: Development Facilities & Lifestyle

Artist's impression of the development's common areas, featuring multi-storey residential blocks, extensive green landscaping, walking paths, and a children's playground. People are depicted enjoying the outdoor spaces. Key facilities available include: - Playgrounds - Adult and elderly fitness stations - Residents' Committee Centre - 2-storey childcare centre - Lush greenery in landscaping - Rooftop garden above the Multi-Storey Car Park All listed facilities are accessible by the public. The page also illustrates an active lifestyle with an image of two elderly individuals jogging in a park setting.

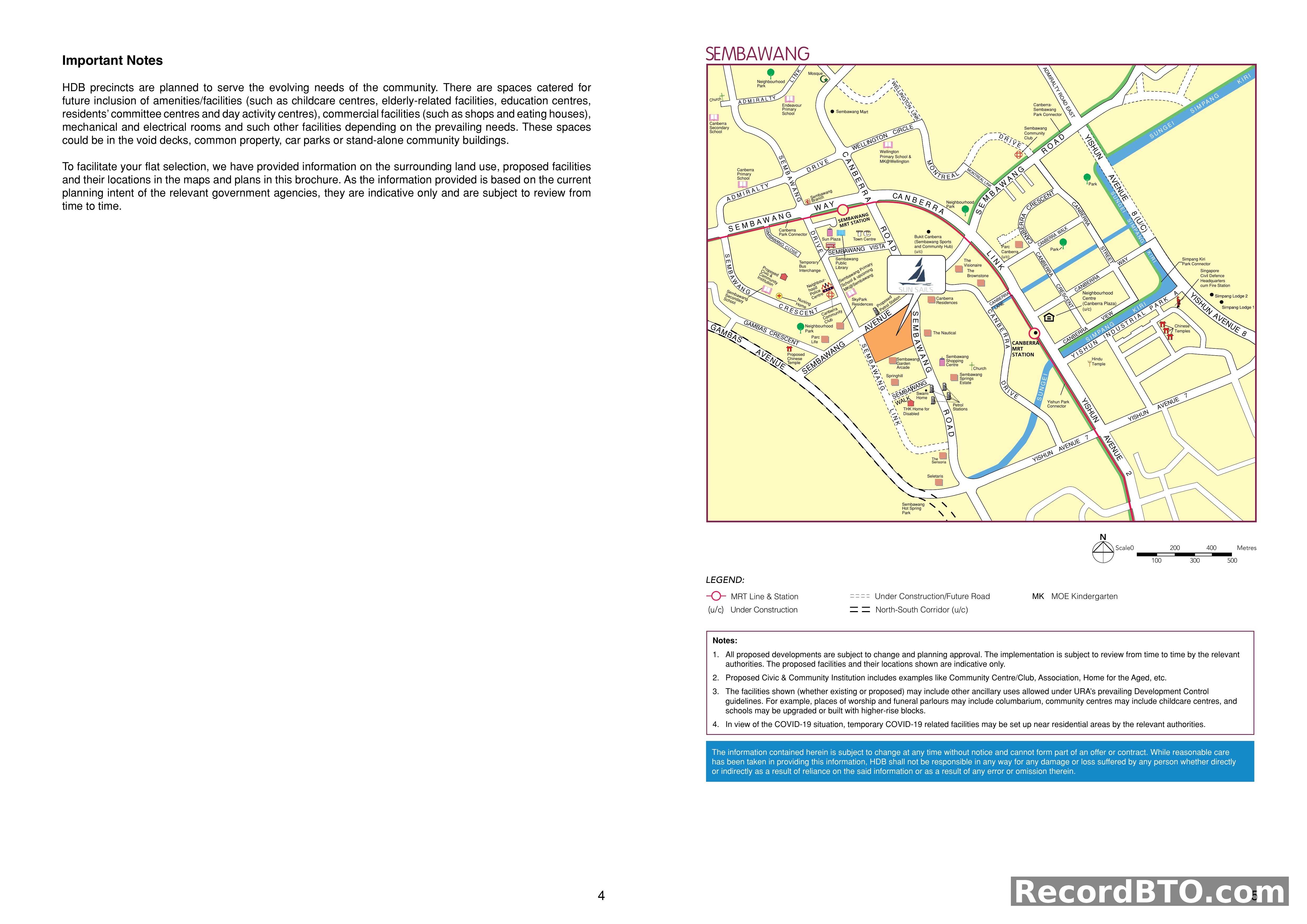

Sembawang Area Map and Important Notes

This page provides an overview of the Sembawang area and general HDB BTO information. The main feature is a detailed map of Sembawang, highlighting key amenities and infrastructure. - **MRT Stations:** Sembawang MRT Station and Canberra MRT Station are clearly marked. - **Roads:** Major roads like Sembawang Way, Canberra Road, Admiralty Road East, and Yishun Avenue are shown. - **Educational Facilities:** Includes Canberra Primary School, Sembawang Secondary School, Wellington Primary School, and MOE Kindergartens. - **Community & Commercial Hubs:** Sembawang Mart, Sun Plaza, Town Centre, Bukit Canberra (Sembawang Sports and Community Hub), Canberra Community Club, and Sembawang Shopping Centre are indicated. - **Parks & Green Spaces:** Several neighbourhood parks, Sembawang Park, and Sembawang Hot Spring Park are present. - **Residential Developments:** Existing and proposed residential areas like Sun Sails, The Visionaire, The Brownstone, and The Nautical are visible. Important Notes clarify that HDB precincts are planned for evolving community needs, with spaces for future amenities like childcare centres, elderly facilities, and commercial facilities. All information on surrounding land use and proposed facilities is indicative and subject to review. A disclaimer states that the information is subject to change and does not form part of an offer or contract.

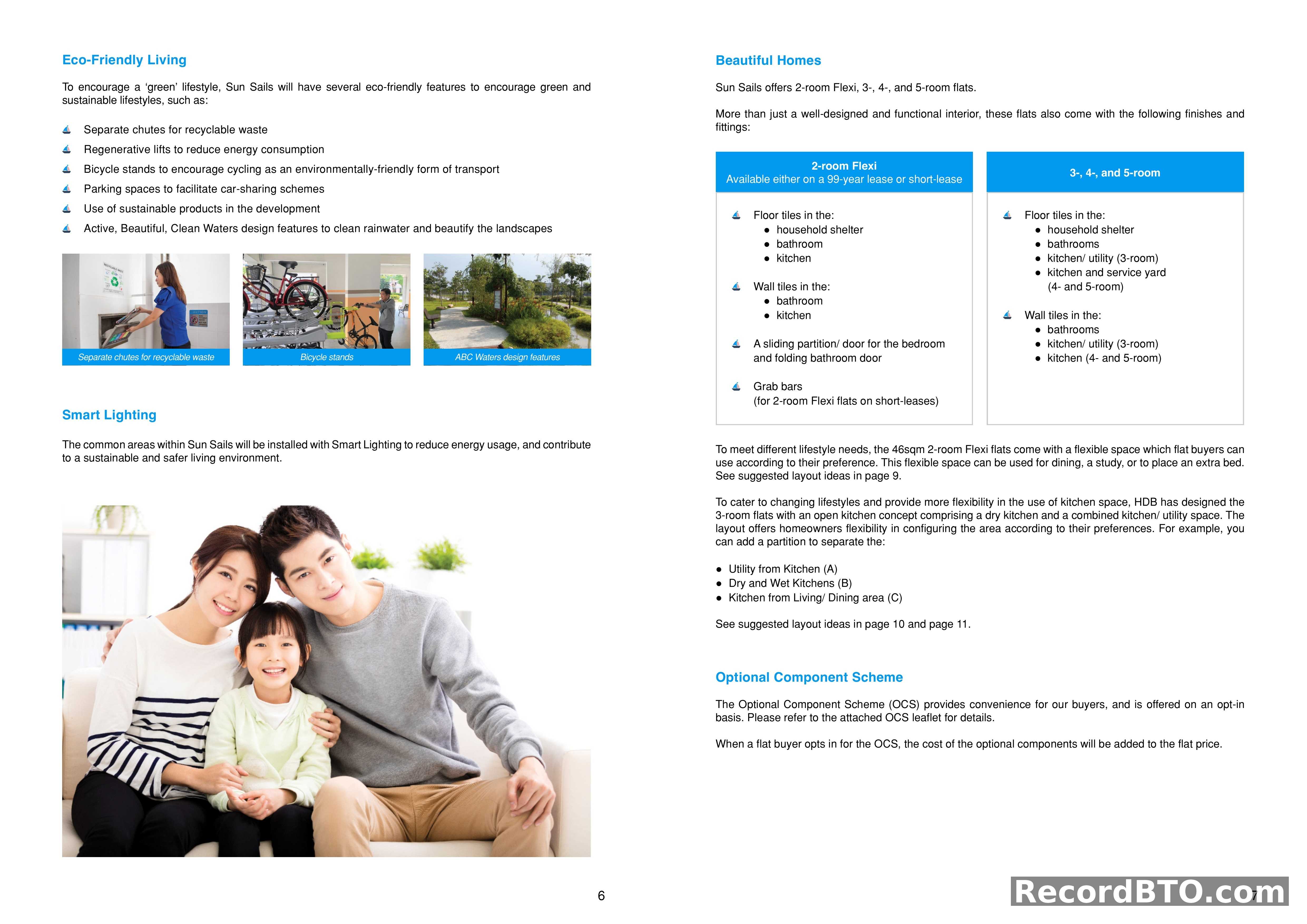

HDB BTO Project Features and Flat Type Specifications

This brochure page details the eco-friendly features and flat specifications for a new HDB BTO project. Eco-friendly features include separate recyclable waste chutes, regenerative lifts, bicycle stands, car-sharing parking, sustainable products, and Active, Beautiful, Clean Waters (ABC Waters) design. Flat types offered are 2-room Flexi, 3-room, 4-room, and 5-room. 2-room Flexi flats (46 sqm) come with floor tiles in household shelter, bathroom, kitchen; wall tiles in bathroom, kitchen; a sliding bedroom partition; a folding bathroom door; and grab bars for short-lease units. These units offer flexible space for dining, study, or an extra bed. 3-, 4-, and 5-room flats feature floor tiles in household shelter, bathrooms, kitchen/utility (3-room), and kitchen with service yard (4- & 5-room). Wall tiles are provided in bathrooms, kitchen/utility (3-room), and kitchen (4- & 5-room). 3-room flats have an open kitchen concept, allowing flexibility to partition utility from kitchen, dry from wet kitchens, or kitchen from living/dining area. Common areas will be equipped with Smart Lighting. An Optional Component Scheme (OCS) is available for buyers, with costs added to the flat price.

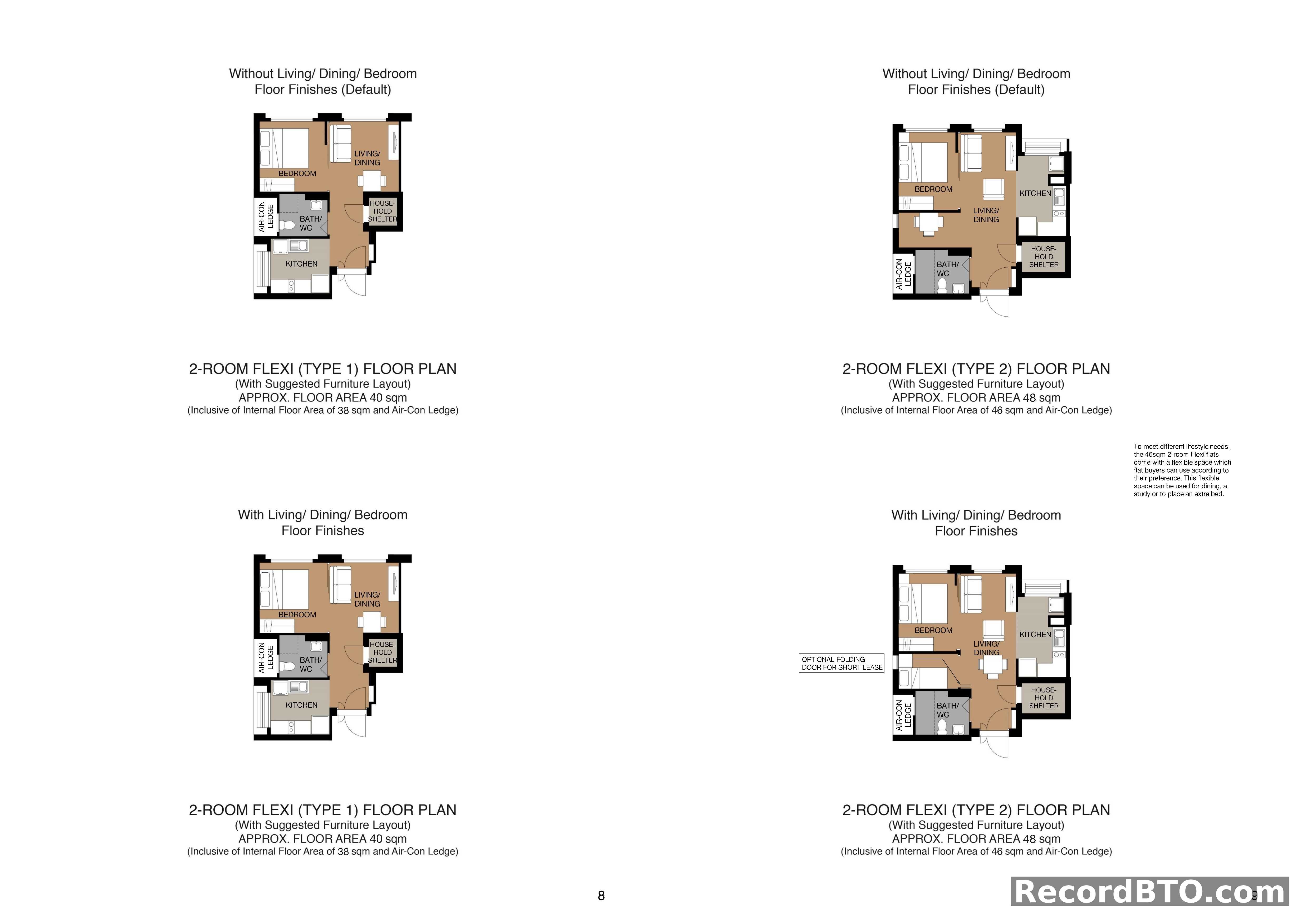

2-Room Flexi Floor Plans: Type 1 & Type 2 Layouts

Floor plans for 2-Room Flexi flats, presented with and without suggested furniture and floor finishes. 2-Room Flexi (Type 1): - Approximate total floor area: 40 sqm (38 sqm internal + air-con ledge). - Layout includes: 1 Bedroom, Living/Dining, Kitchen, Bath/WC, Household Shelter, and Air-Con Ledge. 2-Room Flexi (Type 2): - Approximate total floor area: 48 sqm (46 sqm internal + air-con ledge). - Layout includes: 1 Bedroom, Living/Dining, Kitchen, Bath/WC, Household Shelter, and Air-Con Ledge. - Features a flexible space adaptable for dining, study, or an extra bed, with an optional folding door for short lease. All plans detail essential components such as household shelters and air-con ledges.

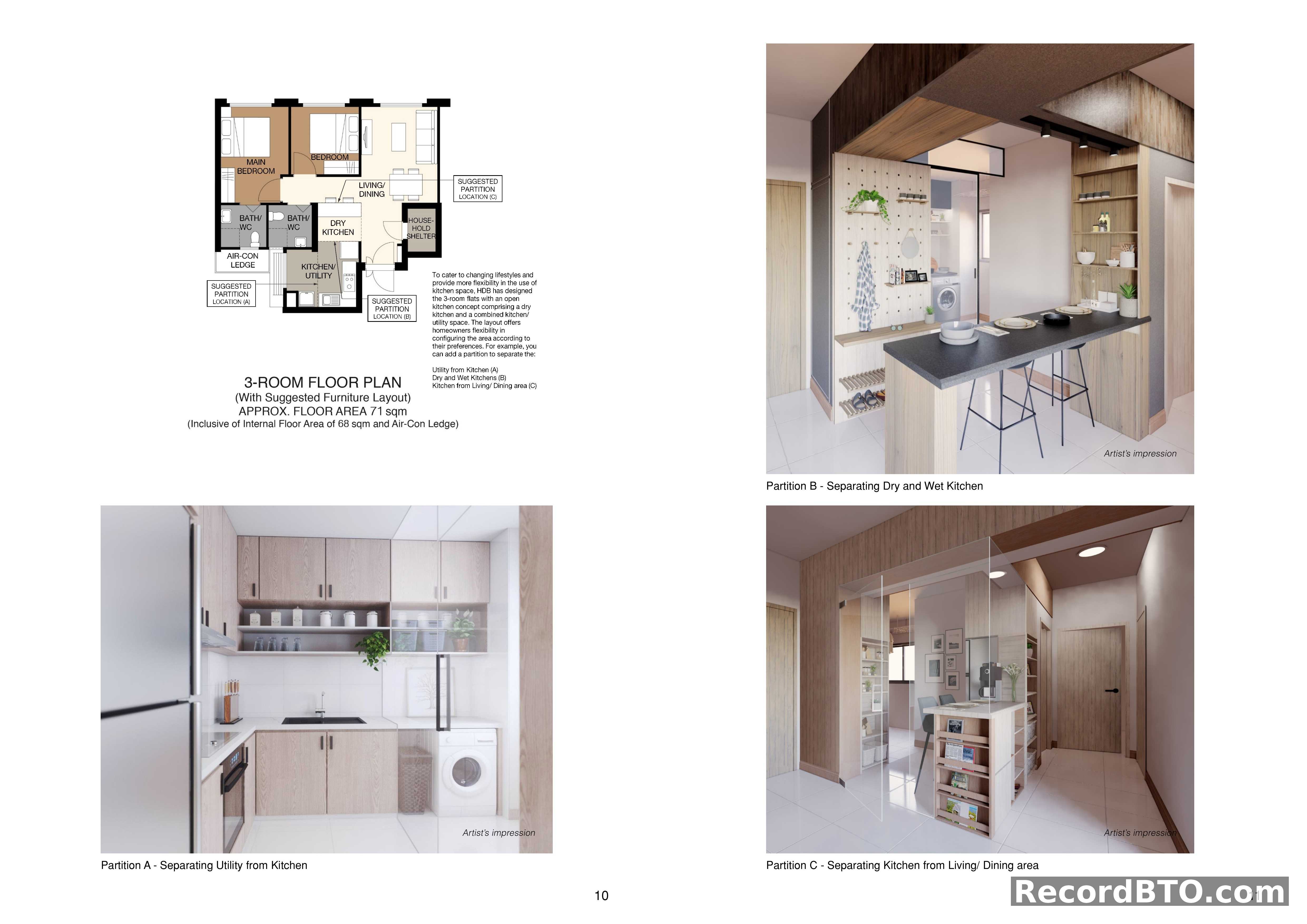

3-Room Flat Layout with Flexible Kitchen Options

3-Room flat floor plan with suggested furniture layout. The unit features a Main Bedroom, a second Bedroom, two Bathrooms (Bath/WC), a Dry Kitchen, a Living/Dining area, and a combined Kitchen/Utility space. Additional amenities include a Household Shelter and an Air-Con Ledge. The approximate total floor area is 71 sqm, comprising 68 sqm of internal floor area plus the air-con ledge. The design incorporates an open kitchen concept, providing flexibility for homeowners to configure the space. Three suggested partition options are illustrated: - Partition A: Separating Utility from Kitchen. - Partition B: Separating Dry and Wet Kitchens. - Partition C: Separating Kitchen from Living/Dining area. Artist's impressions visually demonstrate these flexible kitchen configurations.

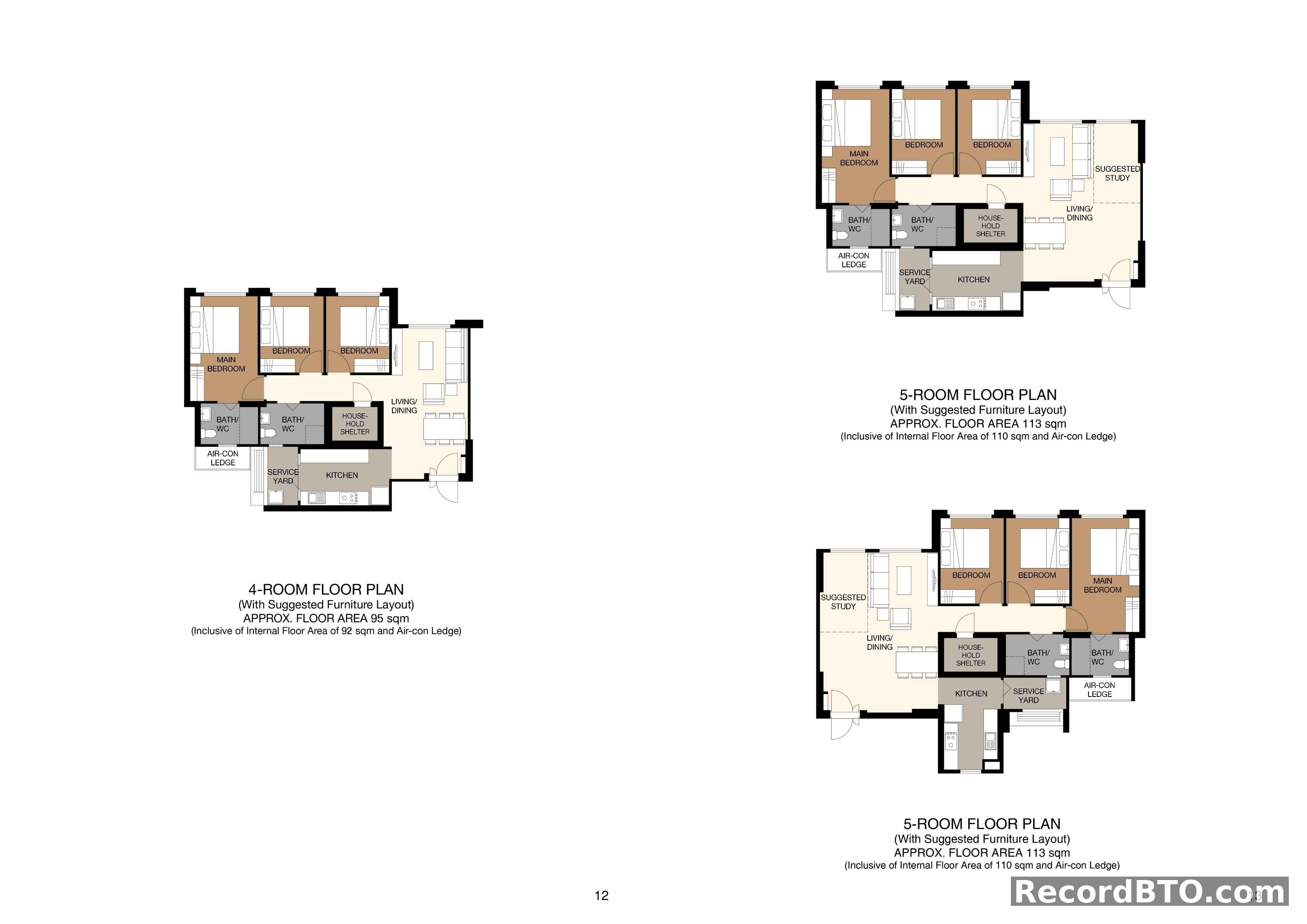

Typical 4-Room and 5-Room Flat Layouts with Suggested Furniture

Three distinct HDB BTO flat floor plans are presented, each with a suggested furniture layout. The 4-Room flat plan (top left) has an approximate floor area of 95 sqm, including an internal floor area of 92 sqm and an air-con ledge. It features a main bedroom, two additional bedrooms, two bathrooms/WCs, a household shelter, kitchen, service yard, and a combined living/dining area. Two variations of the 5-Room flat plan are shown, both with an approximate floor area of 113 sqm, including an internal floor area of 110 sqm and an air-con ledge. - The first 5-Room plan (top right) includes a main bedroom, two additional bedrooms, two bathrooms/WCs, a household shelter, kitchen, service yard, a combined living/dining area, and a dedicated suggested study area. - The second 5-Room plan (bottom right) offers the same room count and approximate area but with a different orientation or mirrored layout, particularly for the main bedroom and living/dining/study areas. All plans depict essential features like household shelters, air-con ledges, and service yards.

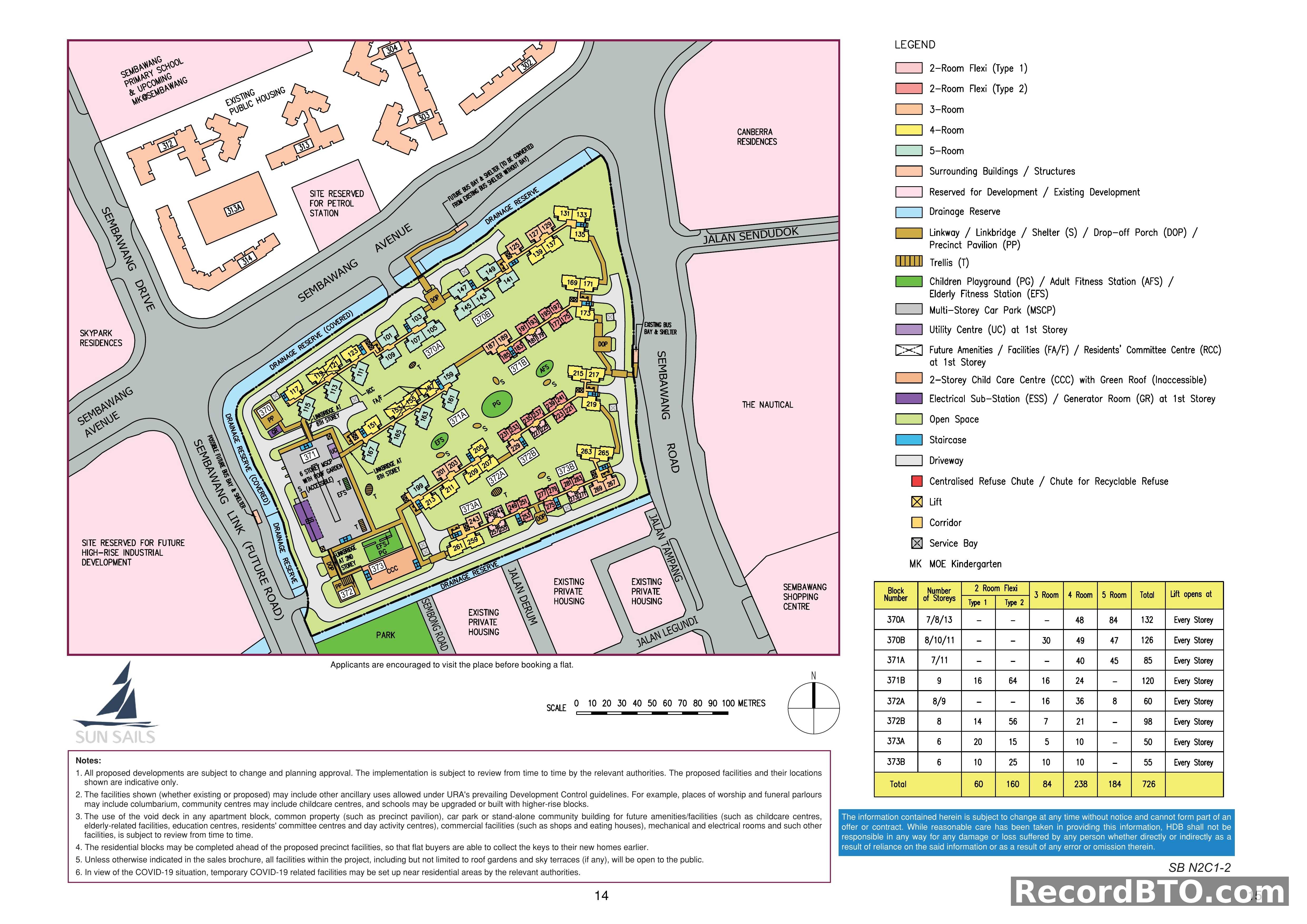

Site Plan & Unit Distribution for Multiple Blocks

Master plan of a residential development featuring blocks 370A, 370B, 371A, 371B, 372A, 372B, 373A, and 373B. The development offers 726 units in total, comprising: - 2-Room Flexi (Type 1): 60 units - 2-Room Flexi (Type 2): 160 units - 3-Room: 84 units - 4-Room: 238 units - 5-Room: 184 units Block heights vary from 6 storeys (373A, 373B) to 13 storeys (370A). Lifts open at every storey for all blocks. Key amenities include a Multi-Storey Car Park (MSCP), Children Playground (PG), Adult Fitness Station (AFS), Elderly Fitness Station (EFS), Precinct Pavilions (PP), Linkways, Drop-off Porches (DOP), Utility Centres (UC), a 2-storey Child Care Centre (CCC), and Electrical Sub-Stations (ESS) with Generator Rooms (GR). The site is bordered by Sembawang Drive, Sembawang Avenue, and Sembawang Road, with proximity to Sembawang Primary School, existing public housing, and a site reserved for a petrol station. Future developments include a high-rise industrial area. The plan also indicates drainage reserves and open spaces.

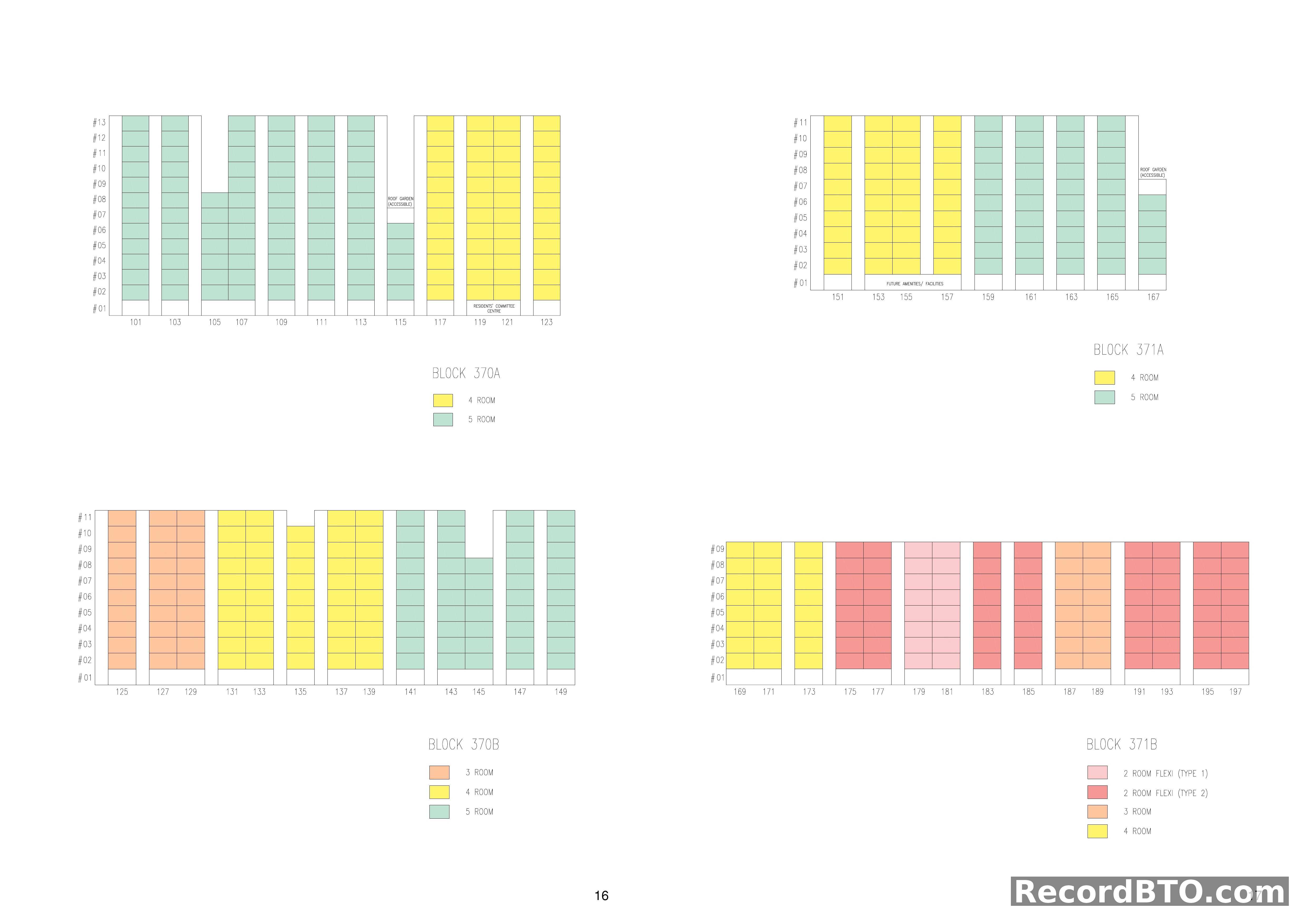

Four HDB BTO Blocks: Unit Mix and Floor Level Distribution

Floor level and unit mix information for four HDB BTO blocks. Block 370A (Floors 1-13): Features 4-Room (units 117-123) and 5-Room (units 101-115) flats. The ground floor of units 117-123 houses a Residents' Committee Centre. An accessible Roof Garden is located at unit 115 from levels 9-13. Block 371A (Floors 1-11): Offers 4-Room (units 151-157) and 5-Room (units 159-167) flats. The ground floor of units 151-157 is designated for Future Amenities/Facilities. An accessible Roof Garden is located at unit 167 from levels 9-11. Block 370B (Floors 1-11): Provides a mix of 3-Room (units 125-129), 4-Room (units 131-139), and 5-Room (units 141-149) flats. Block 371B (Floors 1-9): Includes 2-Room Flexi (Type 1: units 179-181; Type 2: units 175-177, 183-185, 191-197), 3-Room (units 187-189), and 4-Room (units 169-173) flats.

HDB BTO Block Unit and Floor Distribution Overview

Block 372A offers 9 storeys (levels #01 to #09) with unit types including 5-Room (Unit 199), 3-Room (Units 201, 203), and 4-Room (Units 205, 207, 209, 211, 213). Block 373A offers 6 storeys (levels #01 to #06) with unit types including 3-Room (Unit 243), 2-Room Flexi Type 1 (Units 245, 247, 255, 257), 2-Room Flexi Type 2 (Units 249, 251, 253), and 4-Room (Units 259, 261). Block 372B offers 8 storeys (levels #01 to #08) with unit types including 4-Room (Units 215, 217, 219), 2-Room Flexi Type 2 (Units 221, 223, 231, 233, 235, 237, 239, 241), 2-Room Flexi Type 1 (Units 225, 227), and 3-Room (Unit 229). Block 373B offers 6 storeys (levels #01 to #06) with unit types including 4-Room (Units 263, 265), 3-Room (Units 267, 269), 2-Room Flexi Type 1 (Units 271, 273), and 2-Room Flexi Type 2 (Units 275, 277, 279, 281, 283).

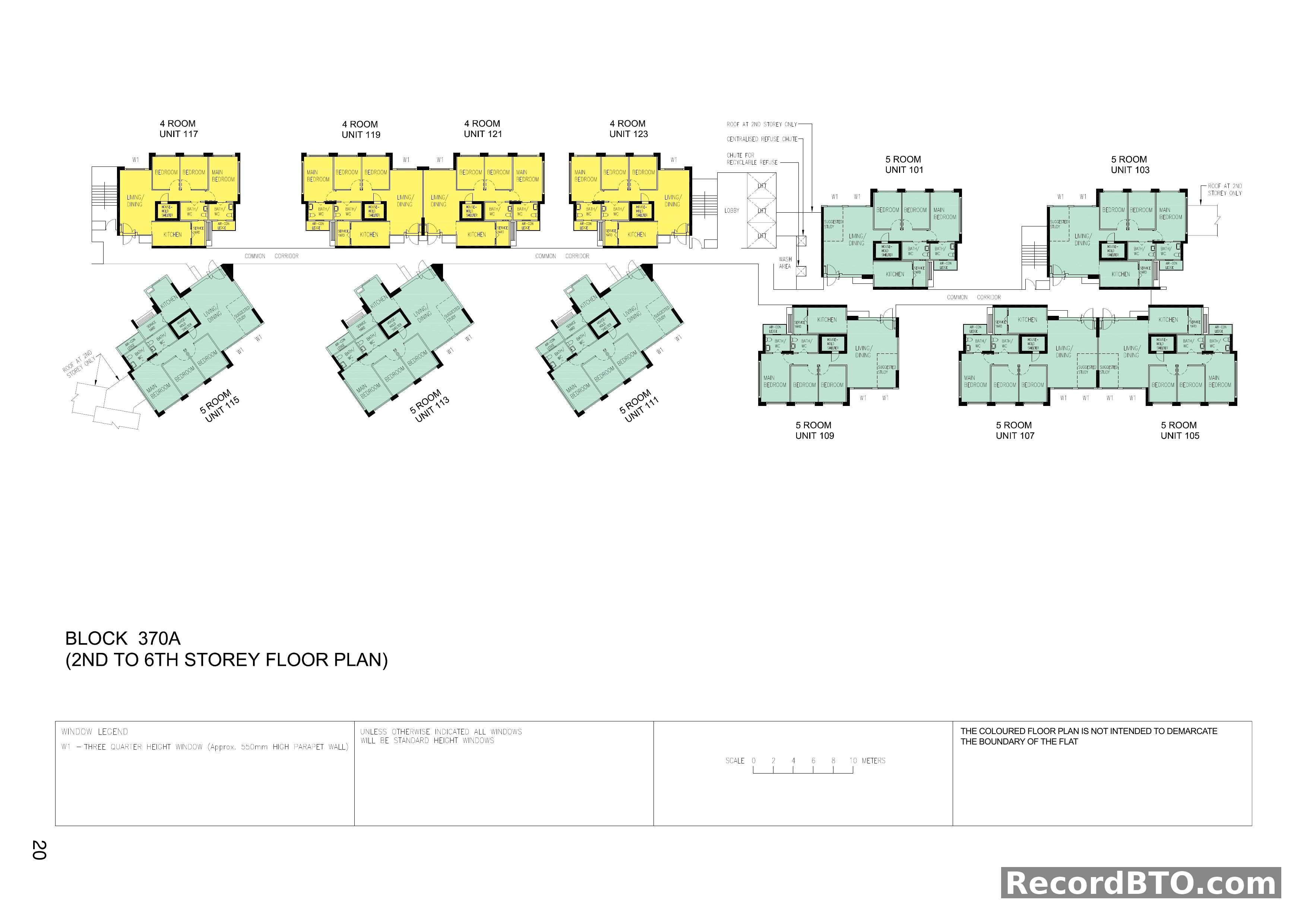

Block 370A: 2nd-6th Storey Floor Plans with 4-Room and 5-Room Units

Floor plans for Block 370A, covering the 2nd to 6th storey. The layout features a mix of 4-Room and 5-Room units accessible via a common corridor, lift lobby, and centralised refuse chute. 4-Room units (117, 119, 121, 123) include: - 3 Bedrooms (Main Bedroom, 2 additional bedrooms) - Living/Dining area - Kitchen - Household Shelter - 2 Bathrooms (Bath/WC) - Service Yard - Air-con Ledge 5-Room units (101, 103, 105, 107, 109, 111, 113, 115) include: - 3 Bedrooms (Main Bedroom, 2 additional bedrooms) - Living/Dining area - Kitchen - Household Shelter - 2 Bathrooms (Bath/WC) - Service Yard - Air-con Ledge - Suggested Study area Some units have 'Roof at 2nd Storey Only' indicated. Windows marked 'W1' are three-quarter height (approx. 550mm high parapet wall), while others are standard height. The colored floor plan is for illustration and does not demarcate the flat boundary.

7th Storey Floor Plan with 4-Room and 5-Room Units

7th storey floor plan for Block 370A. Unit types and configurations: - 4-Room flats: Units 117, 119, 121, 123. Each includes a living/dining area, kitchen, household shelter, service yard, three bedrooms (one main bedroom), and two bathrooms (Bath/WC). - 5-Room flats: Units 101, 103, 105, 107, 109, 111, 113. Each features a living/dining area, kitchen, household shelter, service yard, air-con ledge, three bedrooms (one main bedroom), two bathrooms (Bath/WC), and a suggested study area. Common facilities for the floor include a central lobby, centralised refuse chute, chute for recyclable refuse, and a wash area. Windows marked 'W1' are three-quarter height (approximately 550mm high parapet wall); all other windows are standard height. A metric scale bar is provided for reference.

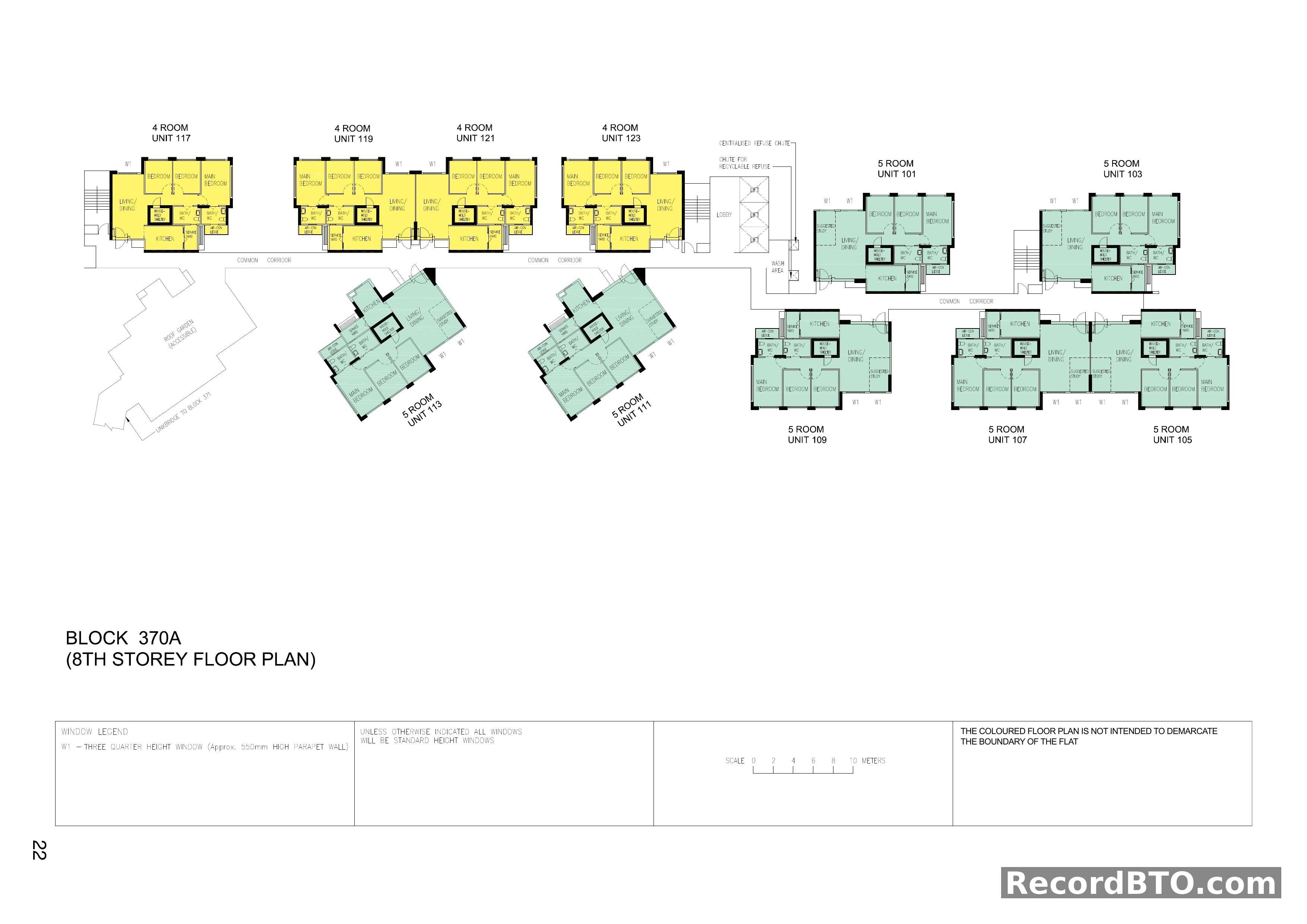

Block 370A: 8th Storey Floor Plan with 4-Room and 5-Room Units

8th storey floor plan for Block 370A. 4-Room units: 117, 119, 121, 123. These units feature 3 bedrooms (including a main bedroom), living/dining area, kitchen, household shelter, two bathrooms, service yard, and air-con ledge. 5-Room units: 101, 103, 105, 107, 109, 111, 113. These units include 3 bedrooms (including a main bedroom), living/dining area, kitchen, household shelter, two bathrooms, service yard, air-con ledge, and a suggested study area. The floor includes a common corridor, central lobby with lifts, and a centralised refuse chute for recyclable waste. An accessible roof garden is shown, connected via a linkbridge to Block 371. Windows marked 'W1' are three-quarter height (approx. 550mm high parapet wall), otherwise standard height. The colored floor plan is not intended to demarcate the boundary of the flat.

Block 370A: 9th Storey Floor Plans for 4-Room and 5-Room Units

9th storey floor plan for Block 370A, featuring both 4-Room and 5-Room flat types. 4-Room flats (Units 117, 119, 121, 123) are shown in yellow, each comprising a living/dining area, kitchen, household shelter, service yard, two bathrooms, a main bedroom, and two common bedrooms. 5-Room flats (Units 101, 103, 107, 109, 111, 113) are shown in green, each including a living/dining area, kitchen, household shelter, service yard, two bathrooms, a main bedroom, two common bedrooms, and a suggested study area. Common facilities on this floor include a common corridor, a lobby, a centralized refuse chute, and a wash area. A trellis is indicated at the 9th storey only near Unit 117. The plan also notes an inaccessible roof area adjacent to Unit 107. Window W1 is a three-quarter height window (approx. 550mm high parapet wall).

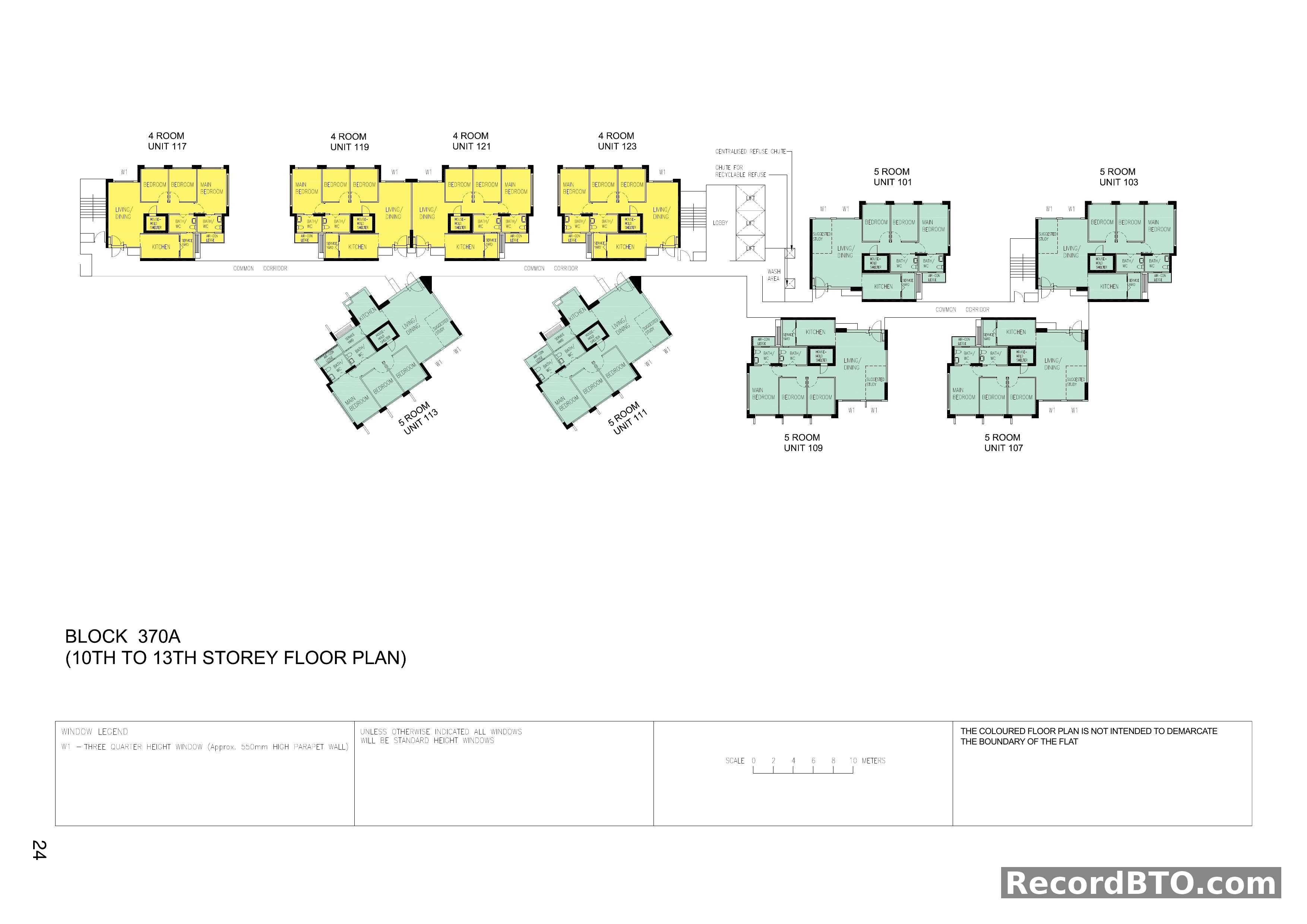

Block 370A: 10th-13th Storey Floor Plans

Floor plan layout for Block 370A, covering levels 10 through 13. Unit types available: - 4-Room flats: Units 117, 119, 121, 123. Each includes a main bedroom, two common bedrooms, living/dining area, kitchen, household shelter, service yard, and two bathrooms. - 5-Room flats: Units 101, 103, 107, 109, 111, 113. Each includes a main bedroom, two common bedrooms, living/dining area, kitchen, household shelter, service yard, two bathrooms, and a suggested study area. The floor features a central lift lobby with three lifts, a wash area, and dedicated chutes for centralised and recyclable refuse. Common corridors provide access to all units. Window 'W1' indicates a three-quarter height window with an approximate 550mm high parapet wall; other windows are standard height. A scale bar is provided for reference.

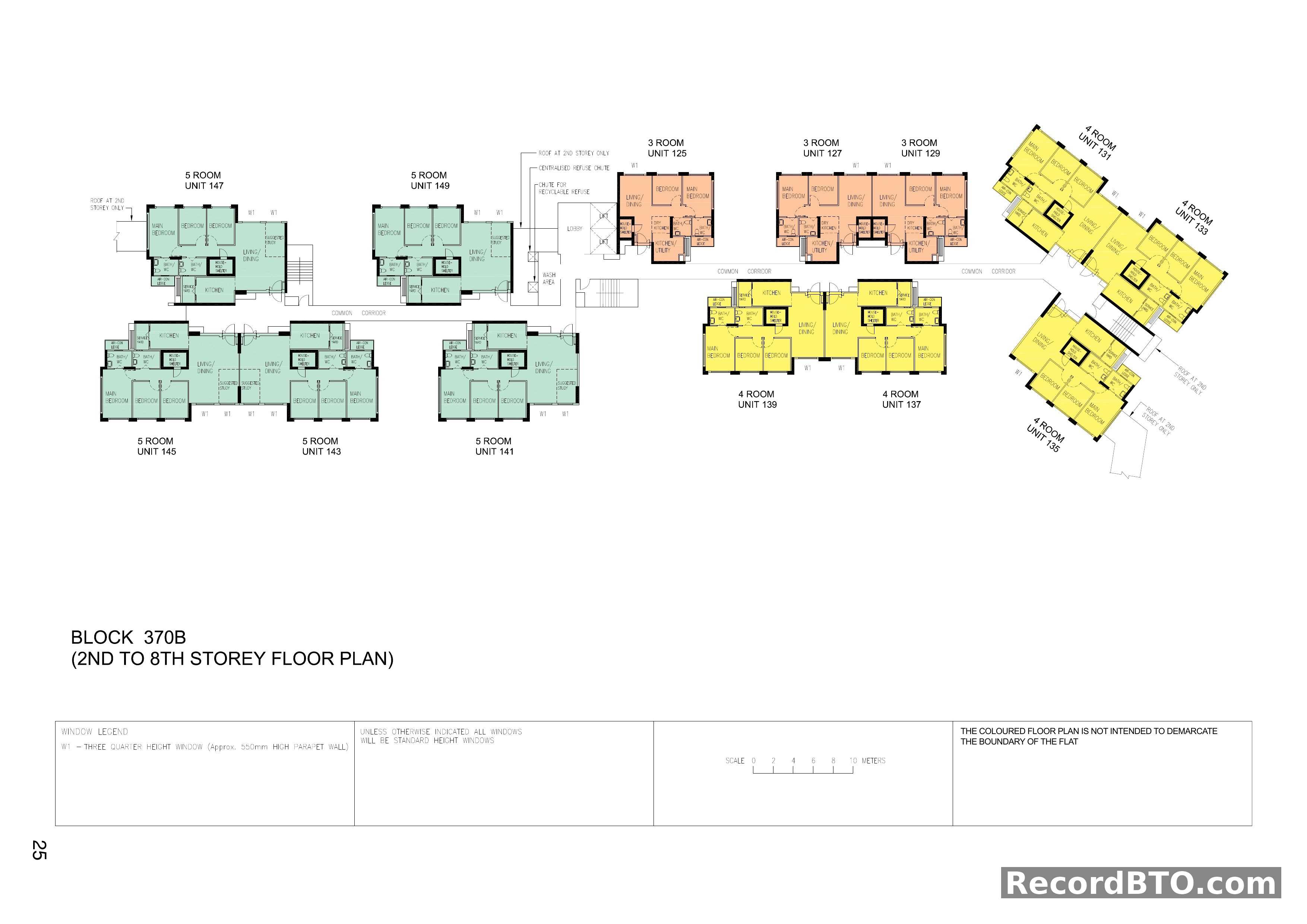

Block 370B: 2nd to 8th Storey Floor Plan

Floor plan for Block 370B, covering levels 2 through 8. Unit types and numbers shown: - 5-Room flats: Units 141, 143, 145, 147, 149. These units feature a main bedroom, two other bedrooms, living/dining area, kitchen, two bathrooms, household shelter, service yard, air-con ledge, and a suggested study area. - 3-Room flats: Units 125, 127, 129. These units include a main bedroom, one other bedroom, living/dining area, kitchen/utility, one bathroom, household shelter, and air-con ledge. - 4-Room flats: Units 131, 133, 135, 137, 139. These units comprise a main bedroom, two other bedrooms, living/dining area, kitchen, two bathrooms, household shelter, service yard, and air-con ledge. The block includes common corridors, a lobby, a centralised refuse chute, and a wash area. A window legend indicates 'W1' as a three-quarter height window (approx. 550mm high parapet wall), with all other windows being standard height. A scale bar from 0 to 10 meters is provided.

Block 370B: 9th Storey Floor Plan with 3, 4, and 5-Room Units

9th storey floor plan for Block 370B. Unit types available on this floor: - 5-Room flats: Units 141, 143, 147, 149. Each includes a living/dining area, kitchen, household shelter, service yard, two bathrooms, and three bedrooms (one main, two common), with some units featuring a suggested study area. - 3-Room flats: Units 125, 127, 129. Each includes a living/dining area, kitchen/utility, household shelter, two bathrooms, and two bedrooms (one main, one common). - 4-Room flats: Units 131, 133, 135, 137, 139. Each includes a living/dining area, kitchen, household shelter, service yard, two bathrooms, and three bedrooms (one main, two common). All units are accessed via a common corridor and share a central lift lobby with a centralized refuse chute and wash area. The plan indicates W1 windows are three-quarter height (approx. 550mm high parapet wall), with other windows being standard height. A scale bar is provided in meters.

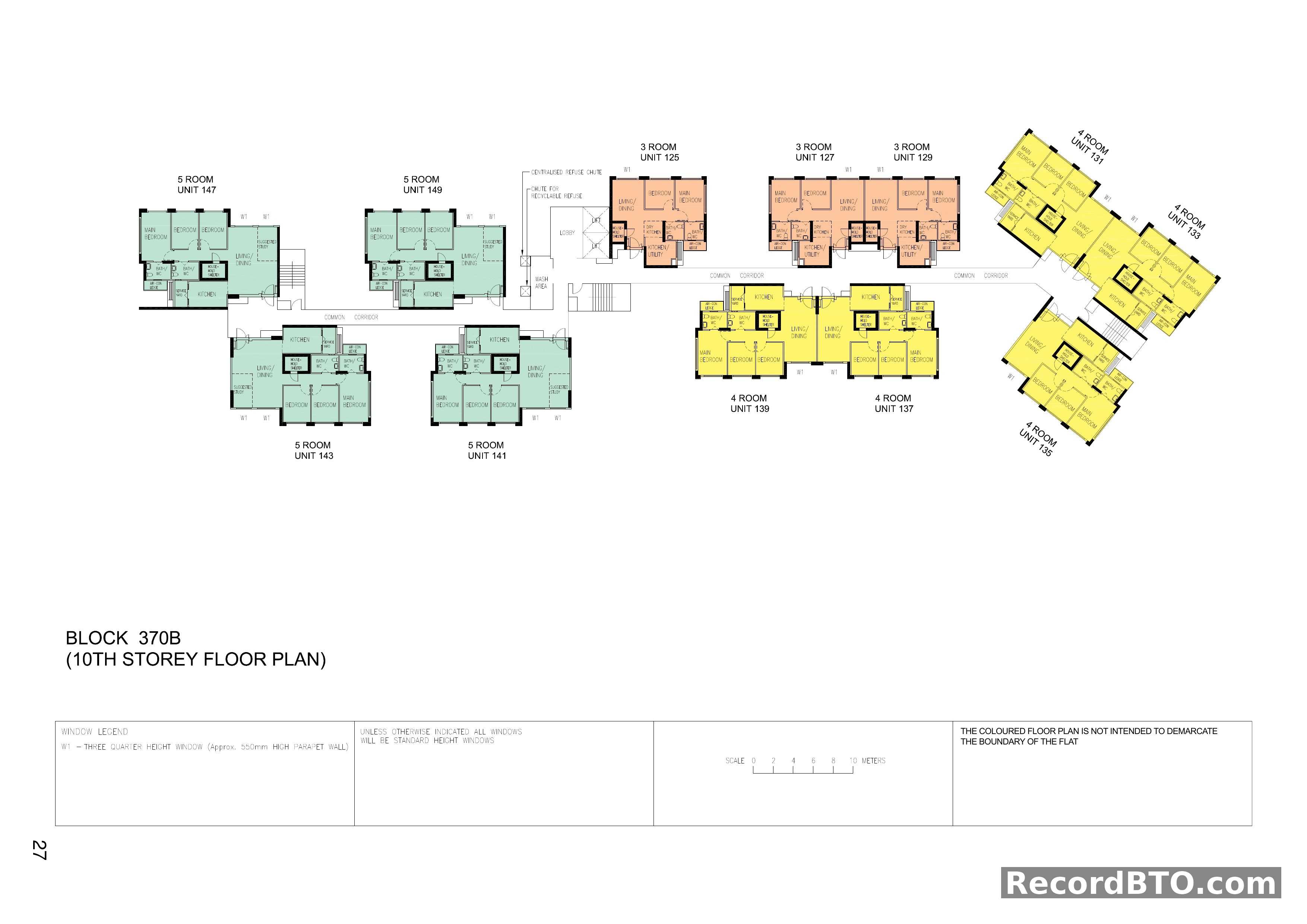

Block 370B: 10th Storey Unit Layouts

10th storey floor plan for Block 370B, featuring a total of 12 residential units. Unit types and numbers: - 5-Room flats: Units 141, 143, 147, 149 (4 units) - 3-Room flats: Units 125, 127, 129 (3 units) - 4-Room flats: Units 131, 133, 135, 137, 139 (5 units) All units are accessible via a common corridor and central lift lobby. Common facilities include a centralised refuse chute and a wash area. Each flat type includes standard features like a household shelter, kitchen, living/dining area, and bedrooms. 5-Room units and some 4-Room units (e.g., 137, 139, 141, 143, 147, 149) also feature a 'suggested study' area. Most units have a service yard and air-con ledge. The window legend indicates 'W1' as a three-quarter height window (approx. 550mm high parapet wall), with all other windows being standard height.

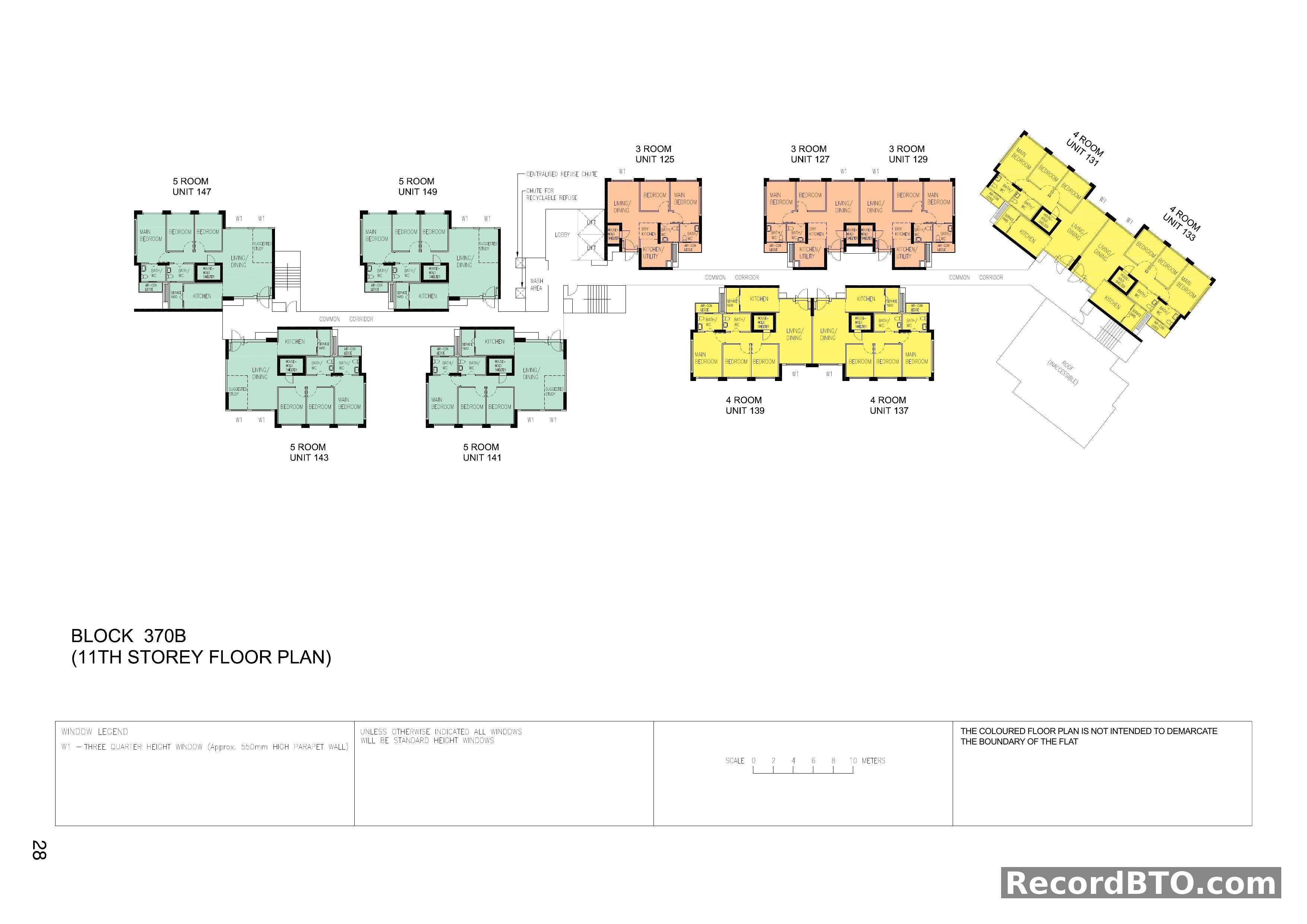

Block 370B: 11th Storey Floor Plan with Mixed Unit Types

11th storey floor plan for Block 370B, featuring a mix of 3-room, 4-room, and 5-room unit types. The floor includes: - Four 5-room units (141, 143, 147, 149), each with a suggested study area, three bedrooms (including a main bedroom), living/dining, kitchen, household shelter, two bathrooms, service yard, and air-con ledge. - Three 3-room units (125, 127, 129), each with two bedrooms (main and common), living/dining, kitchen/utility, household shelter, and two bathrooms. - Four 4-room units (131, 133, 137, 139), each with three bedrooms (main and two common), living/dining, kitchen, household shelter, two bathrooms, service yard, and air-con ledge. Common facilities include a lobby, common corridor, centralised refuse chute with a recyclable chute, and a wash area. A window legend indicates W1 as a three-quarter height window (approx. 550mm high parapet wall).

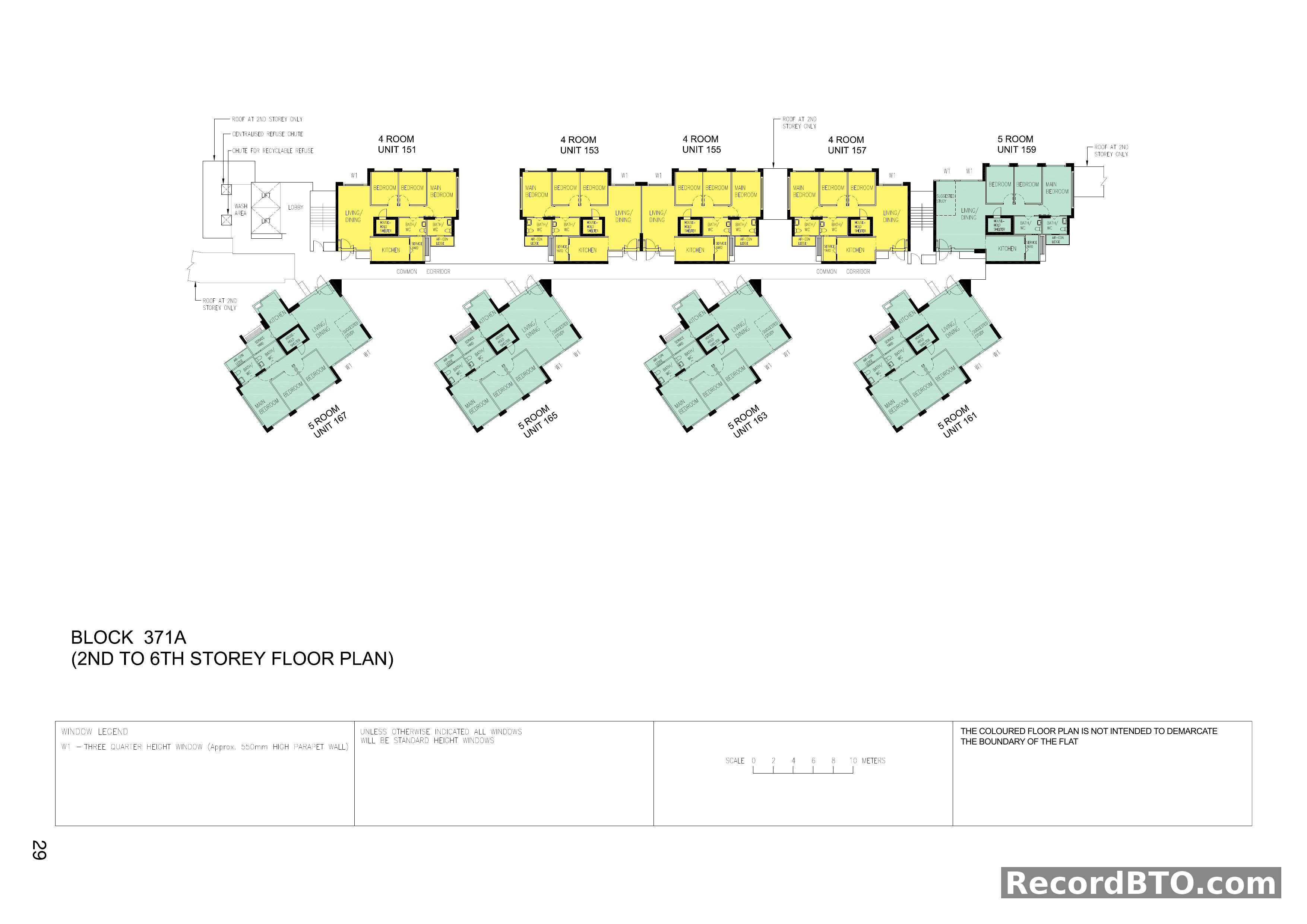

Block 371A: 2nd to 6th Storey Floor Plan

Floor plan for Block 371A, covering the 2nd to 6th storeys. The floor features a total of nine units: - Four 4-Room units: 151, 153, 155, 157. Each includes a living/dining area, kitchen, household shelter, service yard, main bedroom, two additional bedrooms, and two bathrooms. - Five 5-Room units: 159, 161, 163, 165, 167. Each includes a living/dining area, kitchen, household shelter, service yard, suggested study area, main bedroom, two additional bedrooms, and two bathrooms. Common facilities include a lift lobby, wash area, centralized refuse chute, and recyclable refuse chute. Window type W1 indicates a three-quarter height window with an approximate 550mm high parapet wall. All other windows are standard height. A scale bar from 0 to 10 meters is provided.

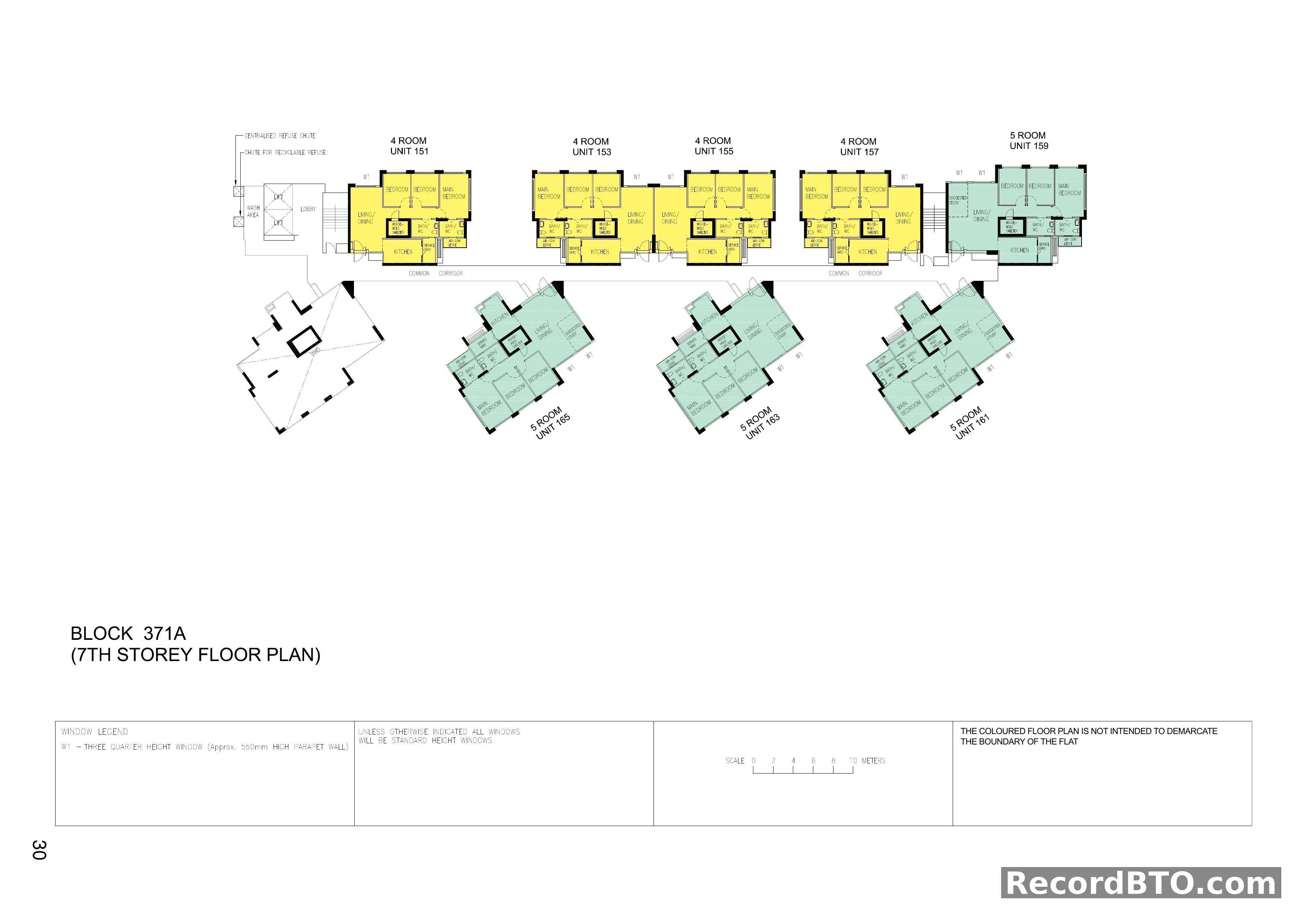

Block 371A: 7th Storey Floor Plan with 4-Room and 5-Room Units

7th storey floor plan for Block 371A, featuring a mix of 4-Room and 5-Room residential units. The floor layout includes a central lobby with two lifts, a wash area, centralized refuse chute, and a chute for recyclable refuse. Units are arranged along a common corridor. Unit types and their features: - 4-Room units (151, 153, 155, 157): Each includes a living/dining area, kitchen, household shelter, service yard, air-con ledge, two bathrooms (Bath/WC), and three bedrooms (Main Bedroom, Bedroom, Bedroom). - 5-Room units (159, 161, 163, 165): Each includes a living/dining area, kitchen, household shelter, service yard, air-con ledge, two bathrooms (Bath/WC), three bedrooms (Main Bedroom, Bedroom, Bedroom), and a suggested study area. Window legend indicates W1 as a three-quarter height window (approx. 550mm high parapet wall), with all other windows being standard height unless specified. A metric scale bar from 0 to 10 meters is provided.

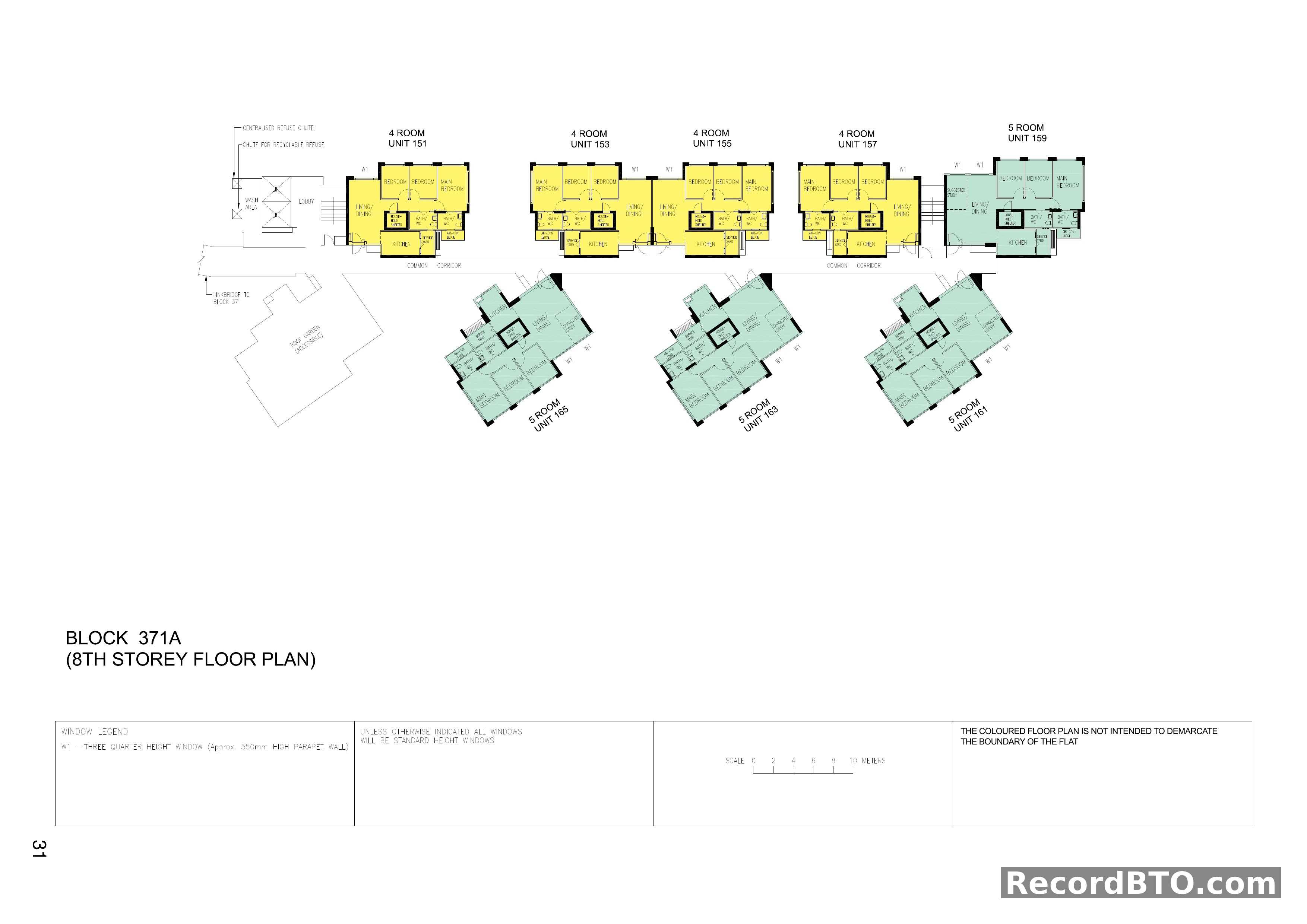

Block 371A: 8th Storey Floor Plans for 4-Room and 5-Room Units

Floor plan for Block 371A, specifically for the 8th storey. This floor features a total of eight residential units: - Four 4-Room units: Units 151, 153, 155, 157. Each includes a living/dining area, kitchen, household shelter, service yard, two bathrooms, and three bedrooms (main bedroom + two others). - Four 5-Room units: Units 159, 161, 163, 165. Each includes a living/dining area, kitchen, household shelter, service yard, two bathrooms, three bedrooms (main bedroom + two others), and a suggested study area. Common facilities on this level include a centralized refuse chute, a chute for recyclable refuse, a lift lobby, and a wash area. An accessible roof garden and a linkbridge connecting to Block 371 are also present. Window 'W1' indicates a three-quarter height window with an approximate 550mm high parapet wall, while other windows are standard height.

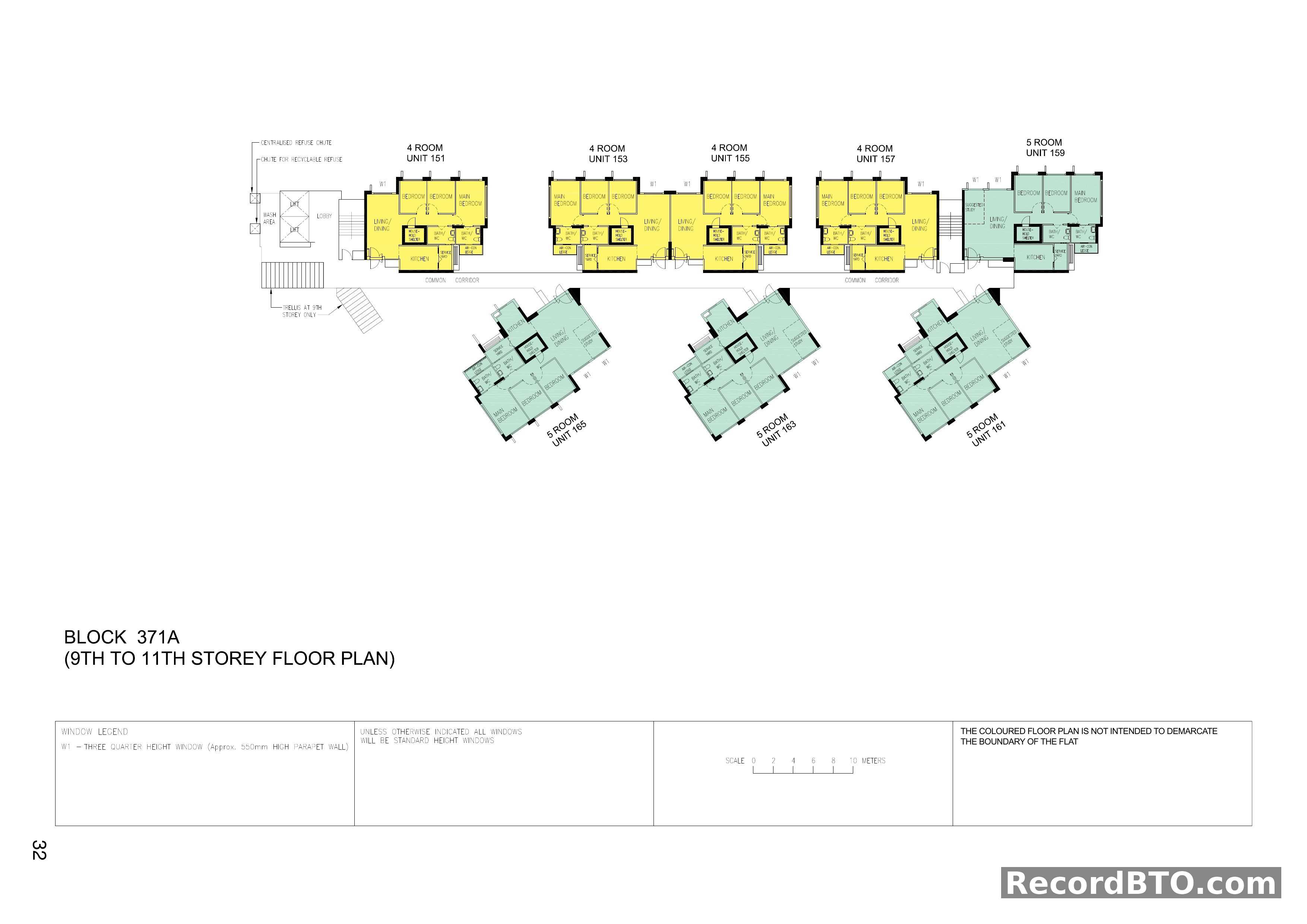

Block 371A: 9th-11th Storey Floor Plans

Floor plan layout for Block 371A covering levels 9 through 11. Unit types available: - 4-Room flats: Units 151, 153, 155, 157. Each features a living/dining area, kitchen, household shelter, service yard, two bathrooms, and three bedrooms (main bedroom, two common bedrooms). - 5-Room flats: Units 159, 161, 163, 165. Each features a living/dining area with a suggested study, kitchen, household shelter, service yard, two bathrooms, and three bedrooms (main bedroom, two common bedrooms). Common facilities include a lobby with two lifts, a wash area, centralized refuse chute, and a chute for recyclable refuse. A common corridor connects the 4-room units. A trellis is indicated at the 9th storey only. Windows marked 'W1' are three-quarter height (approx. 550mm high parapet wall); otherwise, windows are standard height.

Block 371B: 2nd-9th Storey Floor Plans

Floor plan for Block 371B, covering the 2nd to 9th storey levels. Unit types available include: - 3-Room flats: Units 187, 189 - 2-Room Flexi (Type 2): Units 191, 193, 195, 197, 185, 177, 175 - 2-Room Flexi (Type 1): Units 181, 179 - 4-Room flats: Units 169, 171, 173 All units feature a living/dining area, kitchen, bath/WC, and household shelter. 3-Room units include a main bedroom, bedroom, and kitchen/utility. 4-Room units have a main bedroom, two additional bedrooms, a service yard, and an air-con ledge. Common areas shown are corridors, a lobby, a wash area, and centralized refuse chutes. A note specifies that for 2-Room Flexi flats, the number of sliding partition panels between the bedroom and living room depends on the Optional Component Scheme (OCS) selection. Some areas are indicated as 'ROOF AT 2ND STOREY ONLY'. Windows labeled 'W1' are three-quarter height (approx. 550mm high parapet wall), while others are standard height.

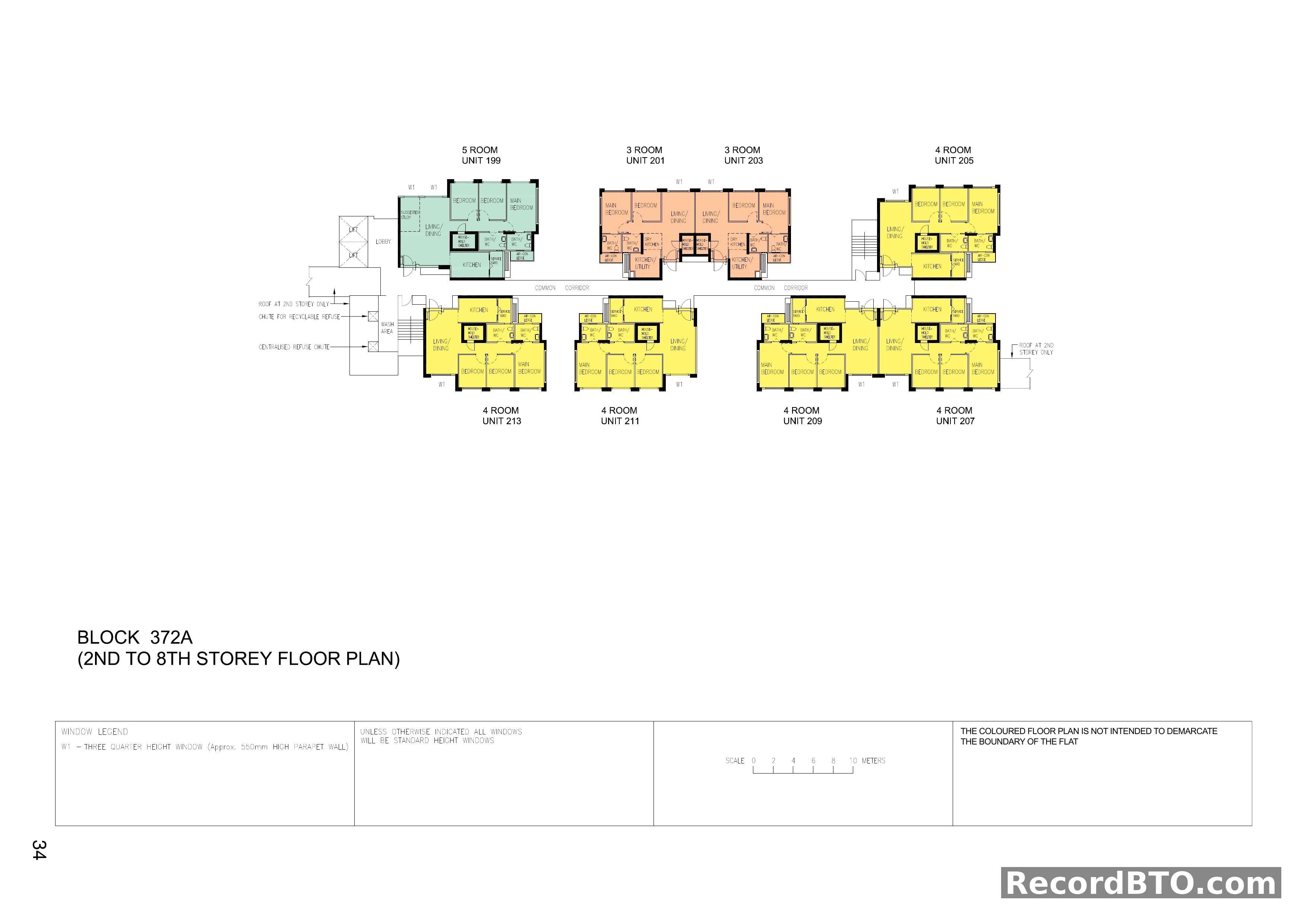

Block 372A: 2nd-8th Storey Floor Plans

Floor plan for Block 372A, covering the 2nd to 8th storeys. This level features eight units: - One 5-Room unit (Unit 199) which includes a suggested study area. - Two 3-Room units (Units 201, 203) featuring a kitchen/utility space. - Five 4-Room units (Units 205, 207, 209, 211, 213). All units include a living/dining area, bedrooms, kitchen, household shelter, bath/WC, and service yard (or kitchen/utility for 3-room units). Air-con ledges are indicated. Common facilities include a lift lobby with two lifts, a common corridor, centralized refuse chute, and a chute for recyclable refuse with an adjacent wash area. A window legend indicates 'W1' as a three-quarter height window (approx. 550mm high parapet wall), with all other windows being standard height. The plan includes a 10-meter scale bar.

Block 372A: 9th Storey Floor Plan

Floor plan for Block 372A, specifically for the 9th storey. The floor features four residential units: - 5-Room: Unit 199 (includes Living/Dining, Kitchen, Household Shelter, Service Yard, Air-con Ledge, 2 Bath/WC, Main Bedroom, 2 Bedrooms, and a Suggested Study area). - 3-Room: Unit 201 and Unit 203 (each includes Living/Dining, Kitchen/Utility, Household Shelter, Service Yard, Air-con Ledge, 2 Bath/WC, Main Bedroom, and 1 Bedroom). - 4-Room: Unit 205 (includes Living/Dining, Kitchen, Household Shelter, Service Yard, Air-con Ledge, 2 Bath/WC, Main Bedroom, and 2 Bedrooms). Common facilities on this floor include a lobby with two lifts, a common corridor, a wash area, and chutes for recyclable and centralised refuse. Window legend indicates W1 as a three-quarter height window (approx. 550mm high parapet wall), with all other windows being standard height unless otherwise indicated.

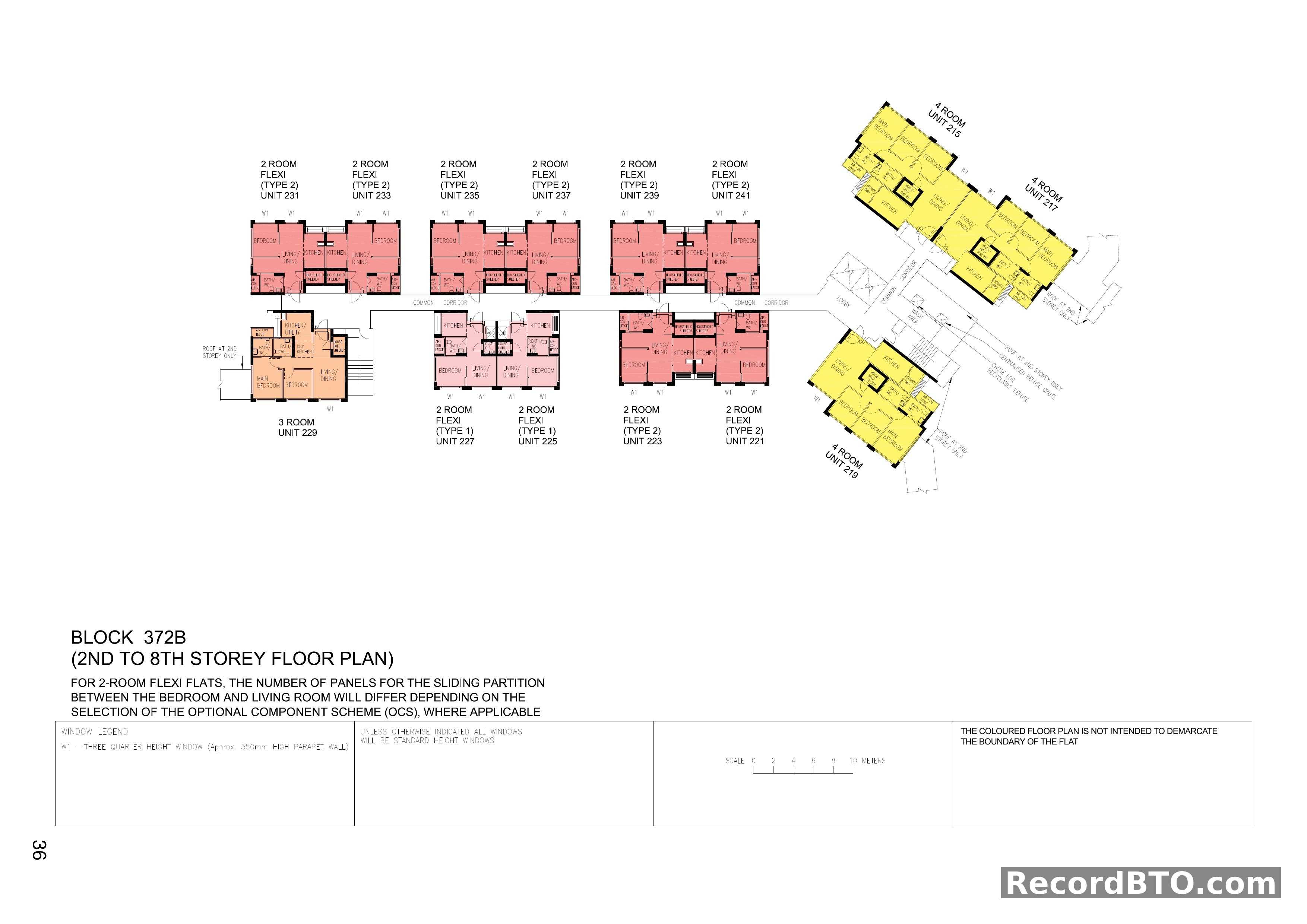

Block 372B: 2nd to 8th Storey Floor Plans

Floor plan layout for Block 372B, covering levels 2 through 8. Unit types available include: - 2-Room Flexi (Type 2): Units 221, 223, 231, 233, 235, 237, 239, 241 - 2-Room Flexi (Type 1): Units 225, 227 - 3-Room: Unit 229 - 4-Room: Units 215, 217, 219 All units feature a living/dining area, kitchen, bedroom(s), household shelter, and bath/WC. Some units include a utility area or service yard. Common amenities shown are a lobby, wash area, stairs, common corridors, centralized refuse chute, and chute for recyclable refuse. Areas marked 'ROOF AT 2ND STOREY ONLY' indicate lower roof sections. For 2-Room Flexi flats, the number of panels for the sliding partition between the bedroom and living room varies based on the Optional Component Scheme (OCS).

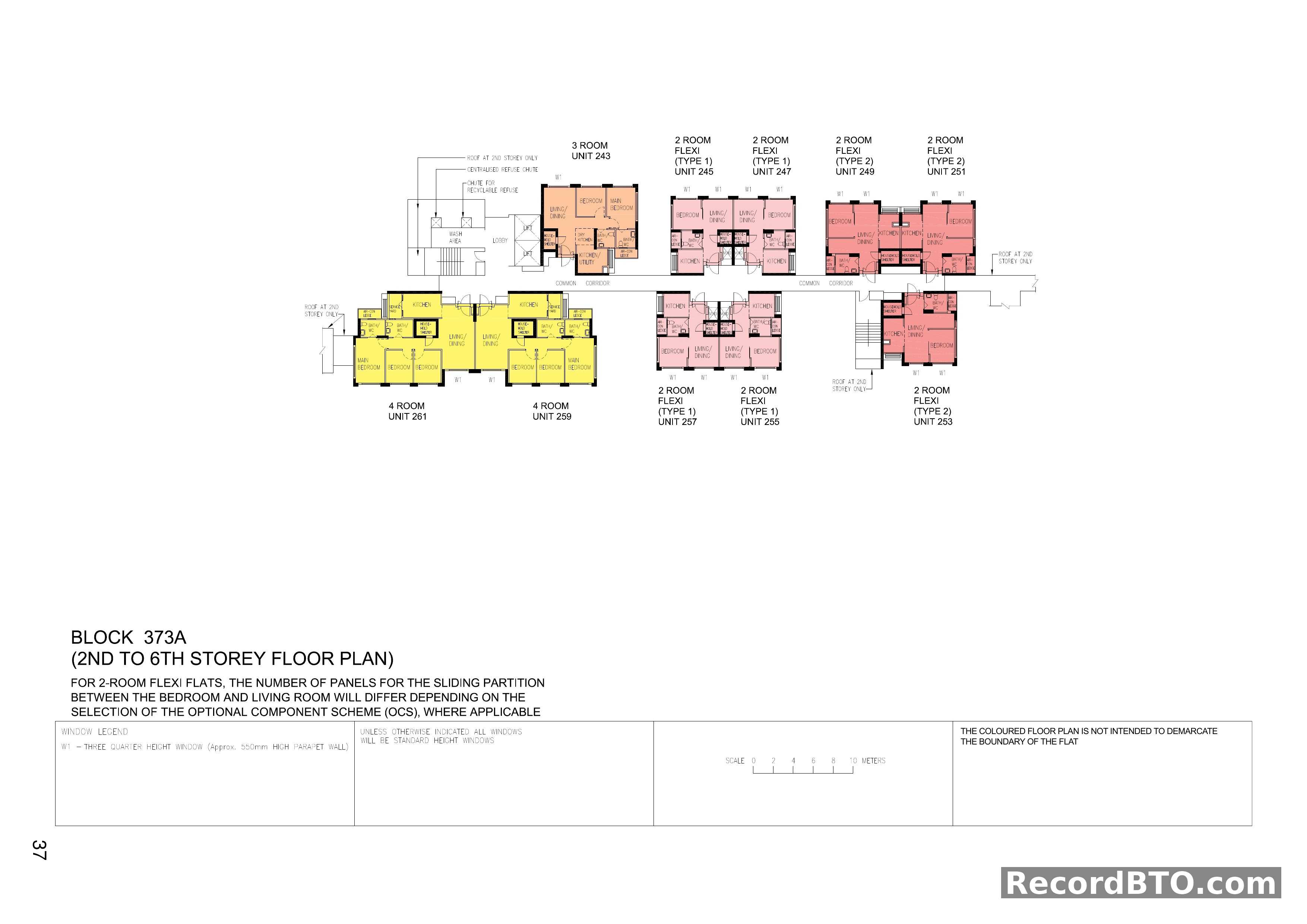

Block 373A: 2nd-6th Storey Floor Plans

Floor plans for Block 373A, covering the 2nd to 6th storeys. Unit types available include: - 3-Room: Unit 243 - 4-Room: Units 259, 261 - 2-Room Flexi (Type 1): Units 245, 247, 255, 257 - 2-Room Flexi (Type 2): Units 249, 251, 253 Each unit features a living/dining area, kitchen, bedroom(s), bathroom(s), and a household shelter. Common amenities on this floor include lifts, a lobby, a wash area, and centralized refuse chutes. For 2-Room Flexi flats, the number of panels for the sliding partition between the bedroom and living room will differ depending on the selection of the Optional Component Scheme (OCS). Windows marked 'W1' are three-quarter height (approx. 550mm high parapet wall); all other windows are standard height.

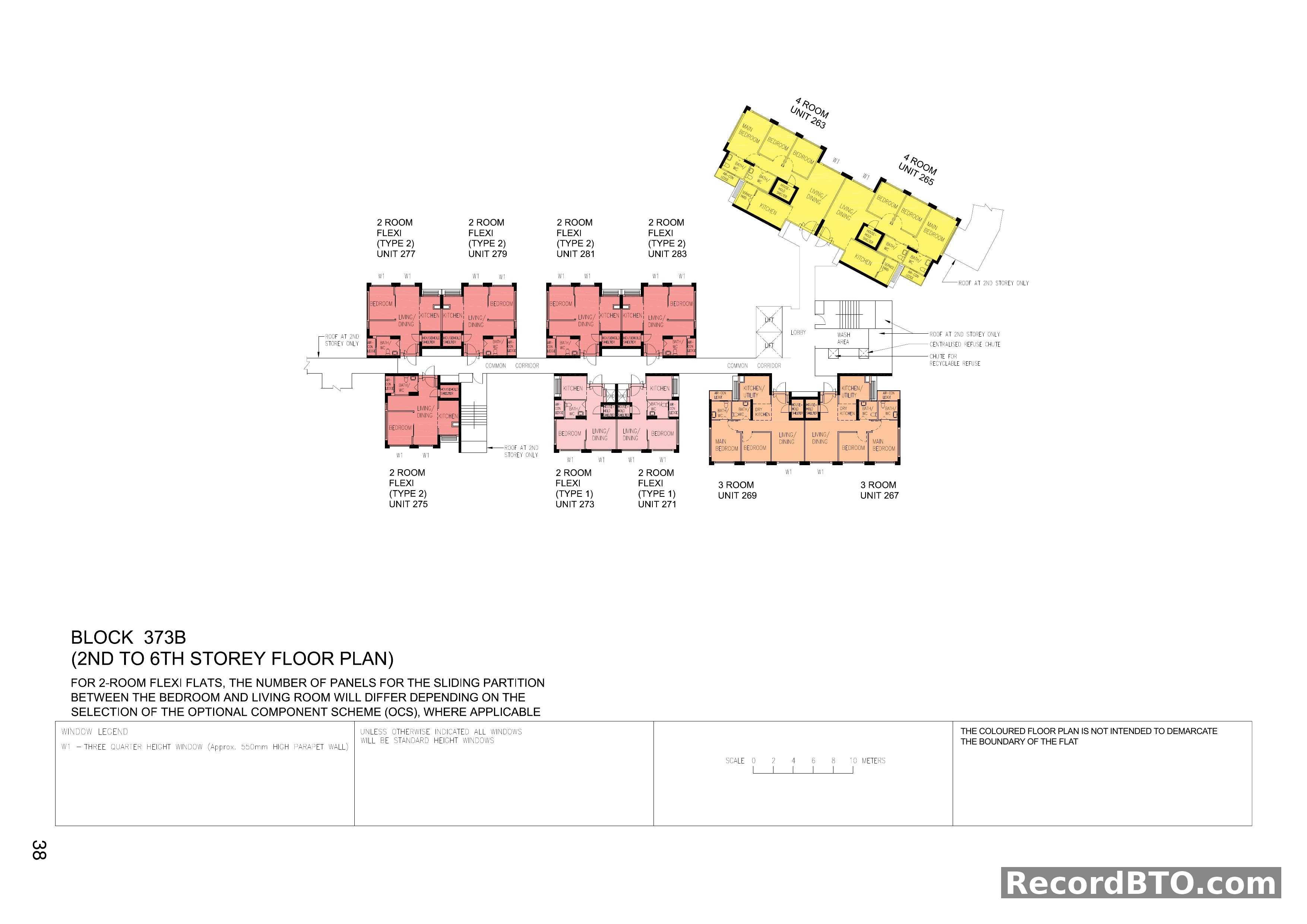

Block 373B: 2nd to 6th Storey Floor Plans

Floor plan layout for Block 373B, covering levels 2 through 6. Unit types available on these floors include: - 2-Room Flexi (Type 2): Units 275, 277, 279, 281, 283. These units feature a bedroom, living/dining, kitchen, household shelter, and bath/WC. - 2-Room Flexi (Type 1): Units 271, 273. These units also include a bedroom, living/dining, kitchen, household shelter, and bath/WC. - 3-Room: Units 267, 269. These units typically have a main bedroom, a second bedroom, living/dining, kitchen, household shelter, and bath/WC. - 4-Room: Units 263, 265. These units feature a main bedroom, two additional bedrooms, living/dining, kitchen, household shelter, bath/WC, and a service yard. Common facilities shown include a central lobby with lifts and stairs, a common corridor, wash area, centralised refuse chute, and a chute for recyclable refuse. For 2-Room Flexi flats, the number of panels for the sliding partition between the bedroom and living room can vary based on the Optional Component Scheme (OCS). Windows marked 'W1' are three-quarter height, approximately 550mm high parapet wall.

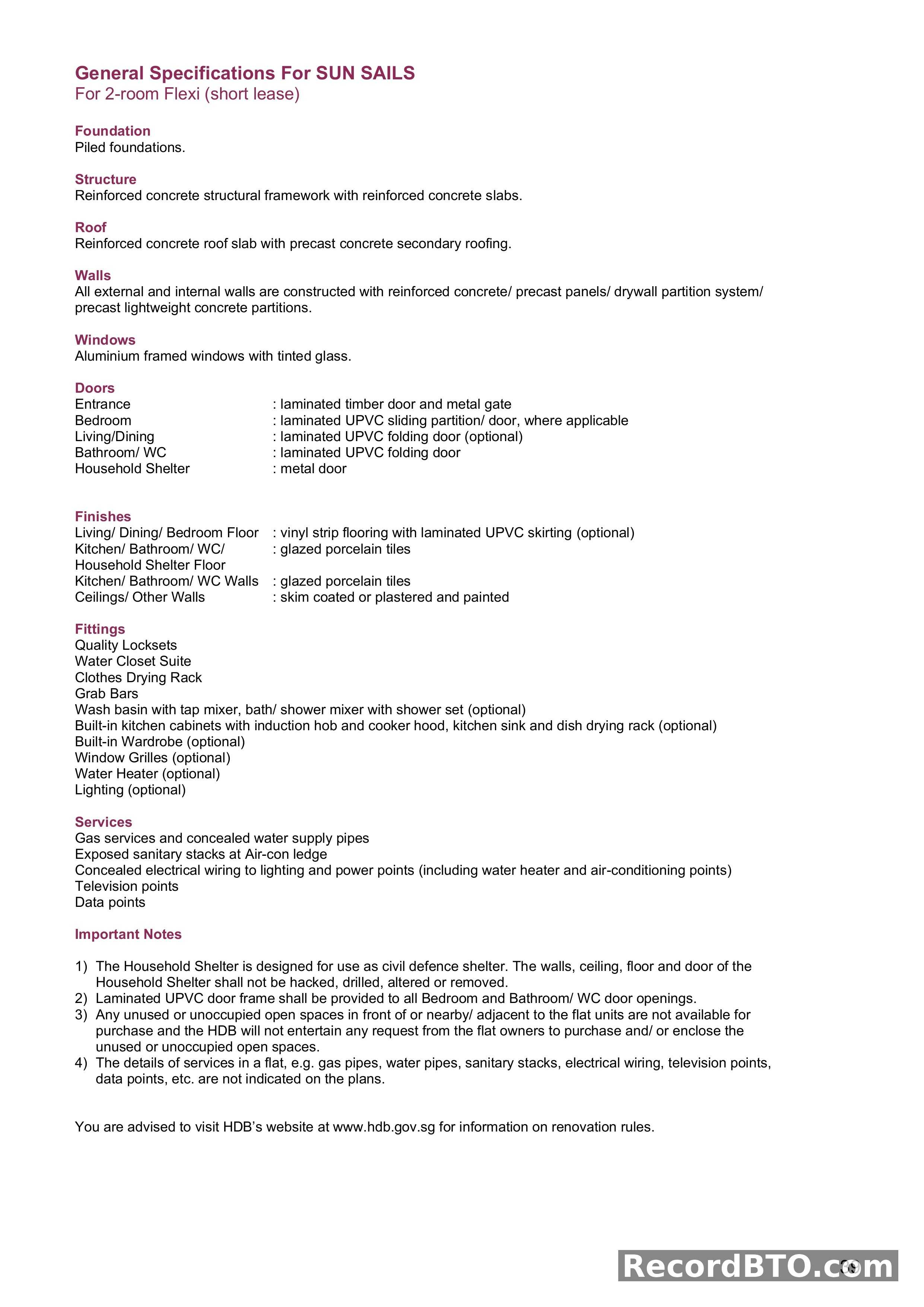

General Specifications for 2-Room Flexi (Short Lease)

General specifications for 2-room Flexi (short lease) units. **Construction:** - Foundation: Piled foundations. - Structure: Reinforced concrete structural framework with reinforced concrete slabs. - Roof: Reinforced concrete roof slab with precast concrete secondary roofing. - Walls: External and internal walls constructed with reinforced concrete, precast panels, drywall partition system, or precast lightweight concrete partitions. - Windows: Aluminium framed with tinted glass. **Doors:** - Entrance: Laminated timber door and metal gate. - Bedroom: Laminated UPVC sliding partition/door (where applicable). - Living/Dining: Laminated UPVC folding door (optional). - Bathroom/WC: Laminated UPVC folding door. - Household Shelter: Metal door. **Finishes:** - Living/Dining/Bedroom Floor: Vinyl strip flooring with laminated UPVC skirting (optional). - Kitchen/Bathroom/WC/Household Shelter Floor: Glazed porcelain tiles. - Kitchen/Bathroom/WC Walls: Glazed porcelain tiles. - Ceilings/Other Walls: Skim coated or plastered and painted. **Fittings:** - Standard: Quality locksets, water closet suite, clothes drying rack, grab bars. - Optional: Wash basin with tap mixer/bath/shower mixer, built-in kitchen cabinets (induction hob, cooker hood, sink, dish drying rack), built-in wardrobe, window grilles, water heater, lighting. **Services:** - Gas services and concealed water supply pipes. - Exposed sanitary stacks at air-con ledge. - Concealed electrical wiring for lighting, power points (including water heater and air-conditioning points), television points, and data points. **Important Notes:** - Household Shelter is a civil defence shelter; its components cannot be altered. - Laminated UPVC door frames are provided for Bedroom and Bathroom/WC openings. - Unused/unoccupied open spaces near units are not for purchase/enclosure. - Service details (gas, water, electrical, TV, data points) are not indicated on plans. - Advised to visit HDB's website for renovation rules.

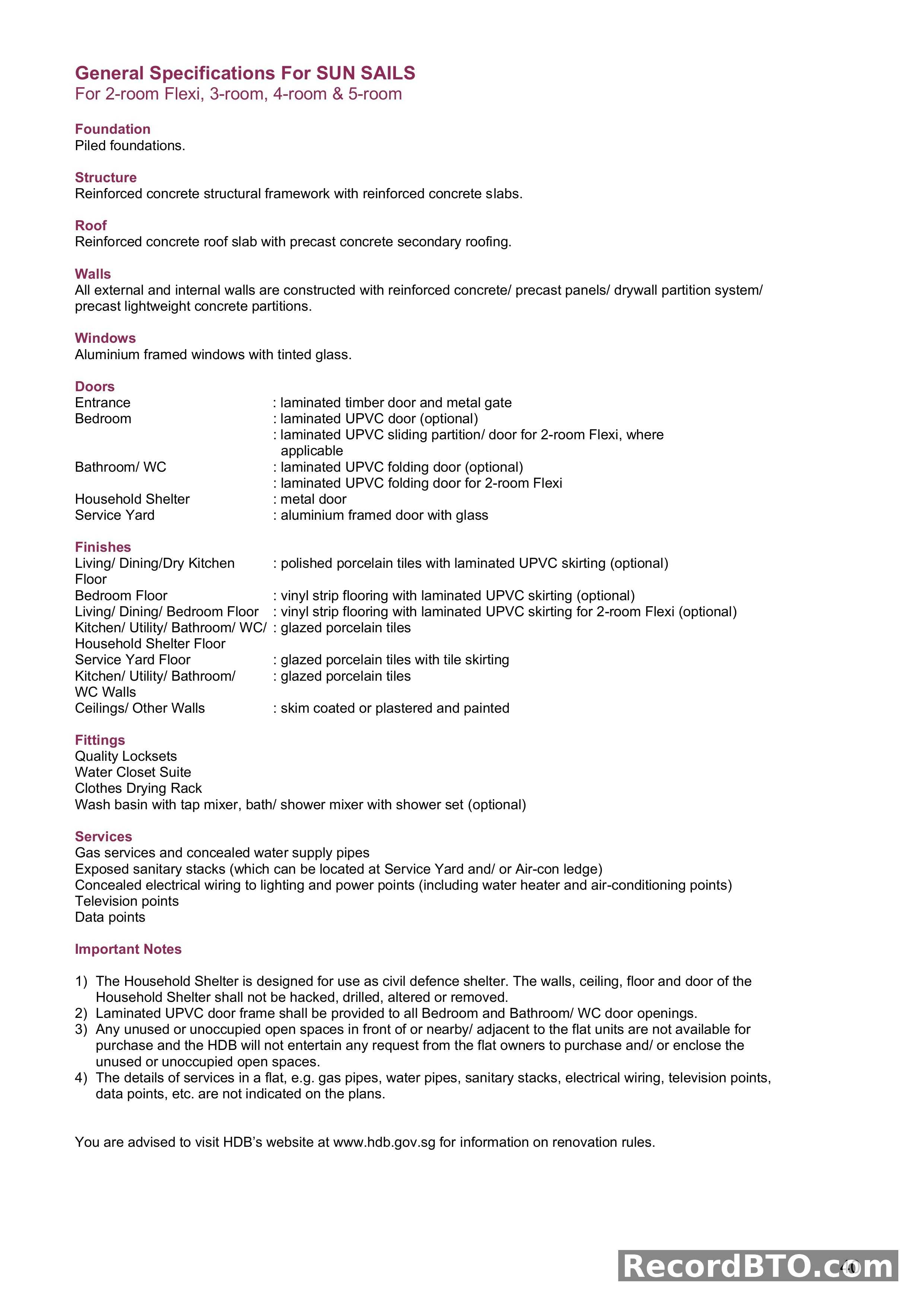

General Specifications for HDB Flat Types

General specifications for HDB 2-room Flexi, 3-room, 4-room, and 5-room flats. Building components include: - Foundation: Piled foundations. - Structure: Reinforced concrete structural framework and slabs. - Roof: Reinforced concrete roof slab with precast concrete secondary roofing. - Walls: Reinforced concrete, precast panels, drywall, or precast lightweight concrete partitions. - Windows: Aluminium framed with tinted glass. Door types vary by location: - Entrance: Laminated timber door and metal gate. - Bedrooms: Laminated UPVC door (optional), with sliding partition/door for 2-room Flexi. - Bathrooms/WCs: Laminated UPVC folding door (optional), with folding door for 2-room Flexi. - Household Shelter: Metal door. - Service Yard: Aluminium framed door with glass. Finishes include: - Living/Dining/Dry Kitchen floors: Polished porcelain tiles with optional laminated UPVC skirting. - Bedroom floors: Vinyl strip flooring with optional laminated UPVC skirting. - Kitchen/Utility/Bathroom/WC/Household Shelter floors: Glazed porcelain tiles. - Service Yard floor: Glazed porcelain tiles with tile skirting. - Walls: Glazed porcelain tiles for wet areas, skim coated or plastered and painted for others. Fittings and services provided: - Quality locksets, water closet suite, clothes drying rack, wash basin with tap mixer, and optional bath/shower mixer with shower set. - Gas services, concealed water supply pipes, exposed sanitary stacks, concealed electrical wiring (lighting, power, water heater, air-conditioning points), television points, and data points. Important notes specify that Household Shelters are civil defence shelters and cannot be altered, UPVC door frames are provided for bedrooms and bathrooms, and adjacent open spaces are not available for purchase. Service details are not indicated on floor plans.

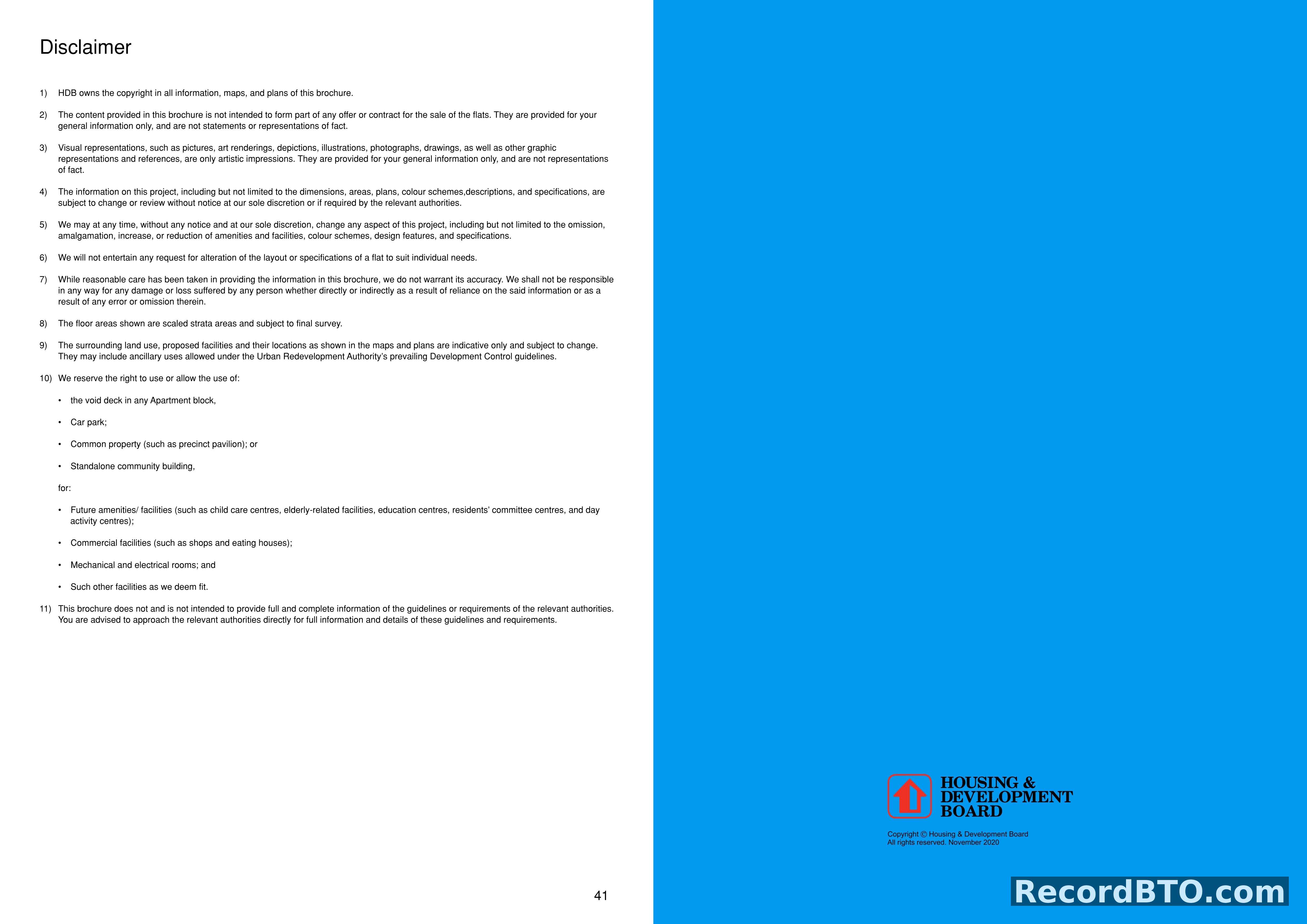

HDB BTO Property Brochure: Disclaimer Page

Disclaimer page from an HDB BTO property brochure. Key points include: - HDB owns copyright to all brochure content. - Content is for general information only, not an offer or contract, and not factual representations. - Visuals are artistic impressions, not factual. - Project information (dimensions, plans, colors, specifications) is subject to change without notice or authority requirement. - HDB reserves the right to change project aspects (amenities, facilities, colors, design features, specifications) at any time. - No alterations to flat layout or specifications will be entertained. - Accuracy of information is not warranted; HDB is not responsible for reliance on it or errors. - Floor areas are scaled strata areas, subject to final survey. - Land use and facilities shown are indicative and subject to change, including ancillary uses under URA guidelines. - HDB reserves the right to use void decks, car parks, common property (precinct pavilions), and standalone community buildings for future amenities (child care, elderly facilities, education, residents' committee, day activity centers), commercial facilities (shops, eating houses), mechanical/electrical rooms, and other deemed fit facilities. - The brochure is not intended as full information; readers are advised to contact relevant authorities for complete details. Page number 41 is displayed at the bottom.

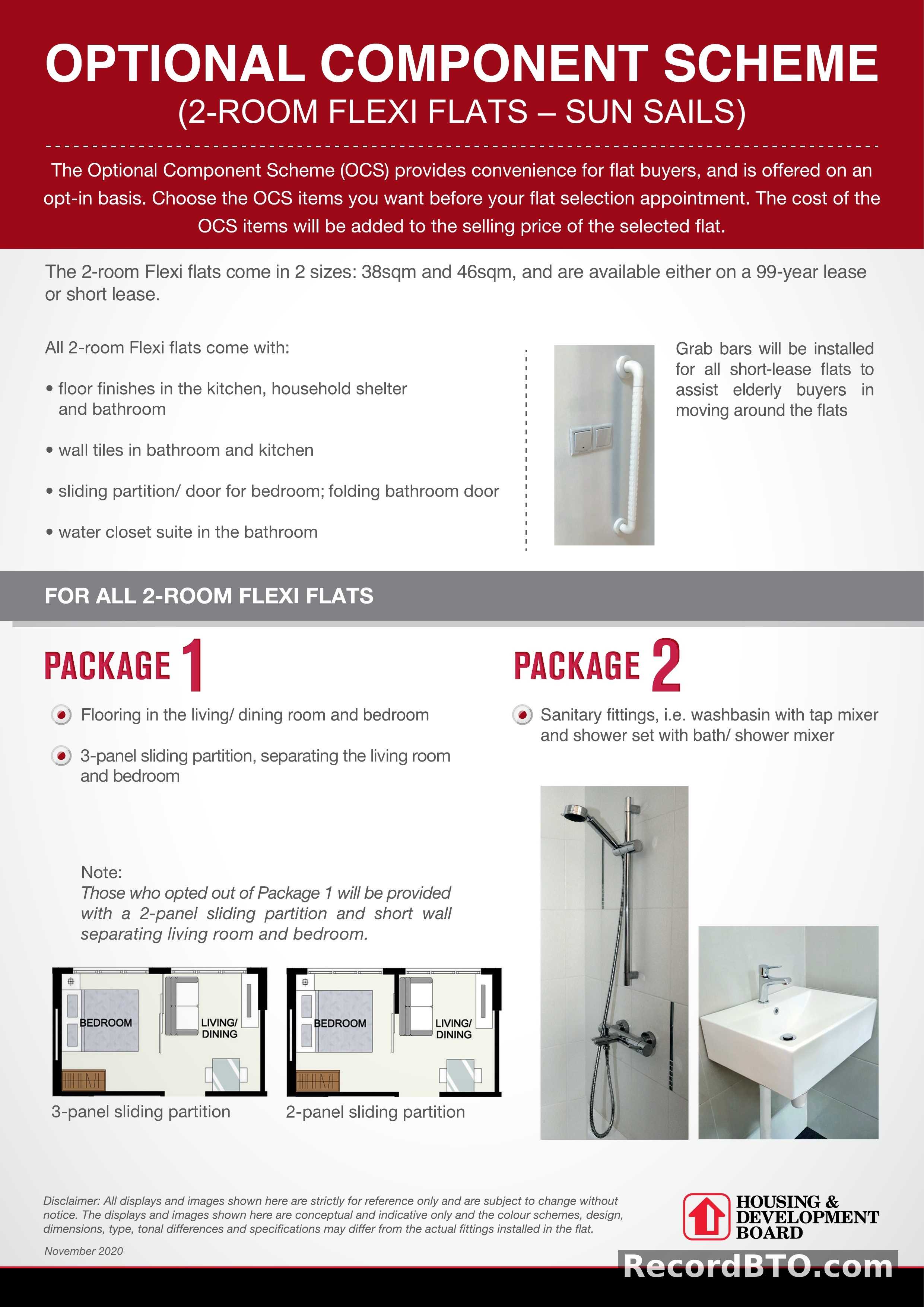

Optional Component Scheme for 2-Room Flexi Flats

Details of the Optional Component Scheme (OCS) for 2-Room Flexi flats. This scheme allows flat buyers to opt-in for additional items, with the cost added to the flat's selling price. 2-Room Flexi flats are available in two sizes: 38 sqm and 46 sqm, with options for a 99-year lease or a short lease. All 2-Room Flexi flats include: - Floor finishes in the kitchen, household shelter, and bathroom. - Wall tiles in the bathroom and kitchen. - Sliding partition/door for the bedroom. - Folding bathroom door. - Water closet suite in the bathroom. Optional Packages: - **Package 1:** Includes flooring in the living/dining room and bedroom, and a 3-panel sliding partition separating the living room and bedroom. If Package 1 is opted out, a 2-panel sliding partition and short wall are provided instead. - **Package 2:** Includes sanitary fittings, specifically a washbasin with tap mixer and a shower set with a bath/shower mixer. Grab bars will be installed in all short-lease flats to assist elderly buyers.

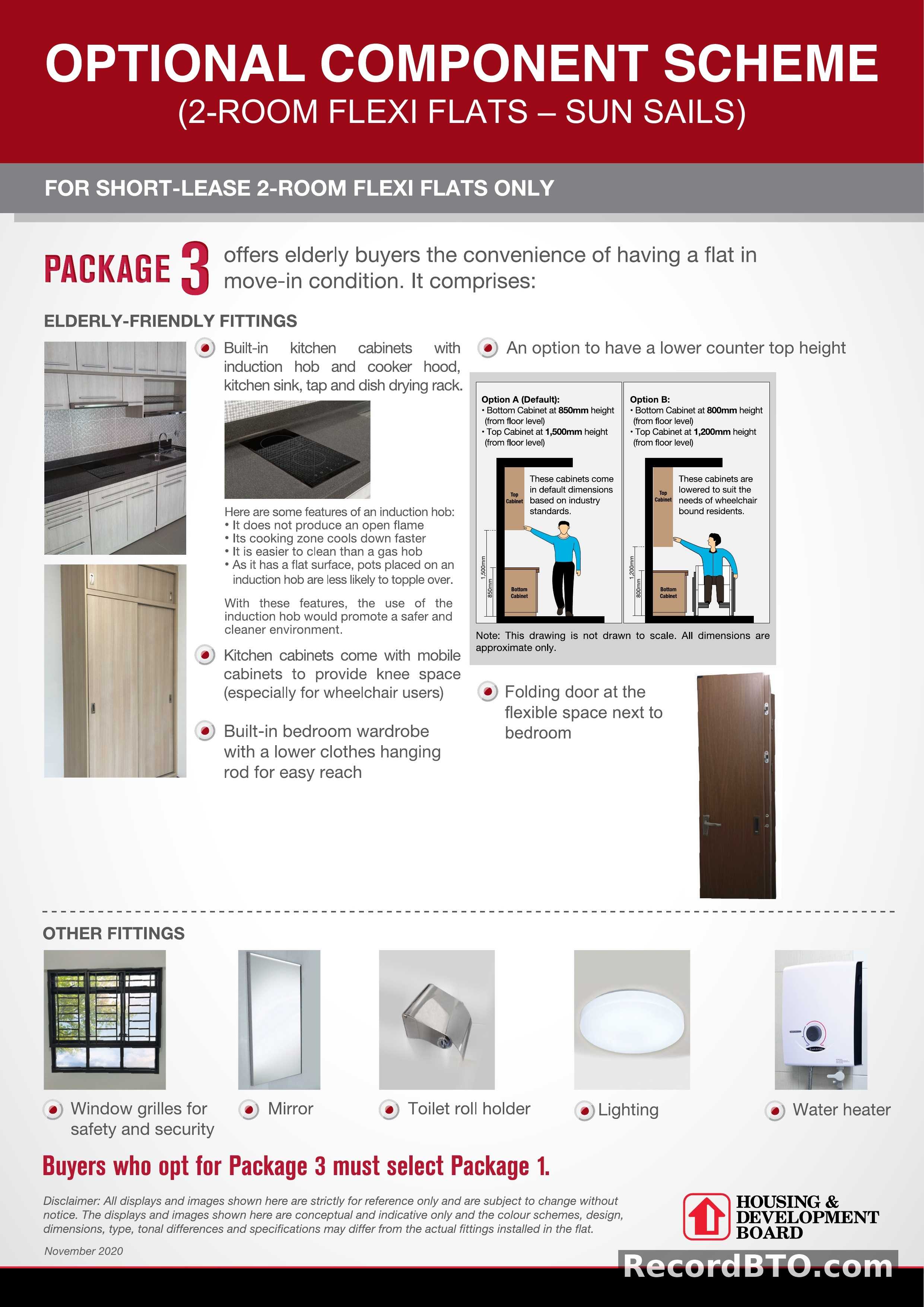

HDB 2-Room Flexi Flats: Elderly-Friendly Package 3 Fittings

The Optional Component Scheme, Package 3, is detailed for short-lease 2-Room Flexi Flats, designed for elderly buyers seeking move-in condition. Elderly-friendly fittings include: - Built-in kitchen cabinets with induction hob, cooker hood, sink, tap, and dish drying rack. The induction hob offers safety and ease of cleaning. - Kitchen cabinets with mobile sections to provide knee space for wheelchair users. - Built-in bedroom wardrobe with a lower clothes hanging rod. - An option for lower kitchen counter heights: Default (bottom 850mm, top 1500mm) or Lowered (bottom 800mm, top 1200mm) for wheelchair-bound residents. - A folding door for the flexible space next to the bedroom. Other standard fittings provided are window grilles, a mirror, toilet roll holder, lighting, and a water heater. Buyers opting for Package 3 must also select Package 1.

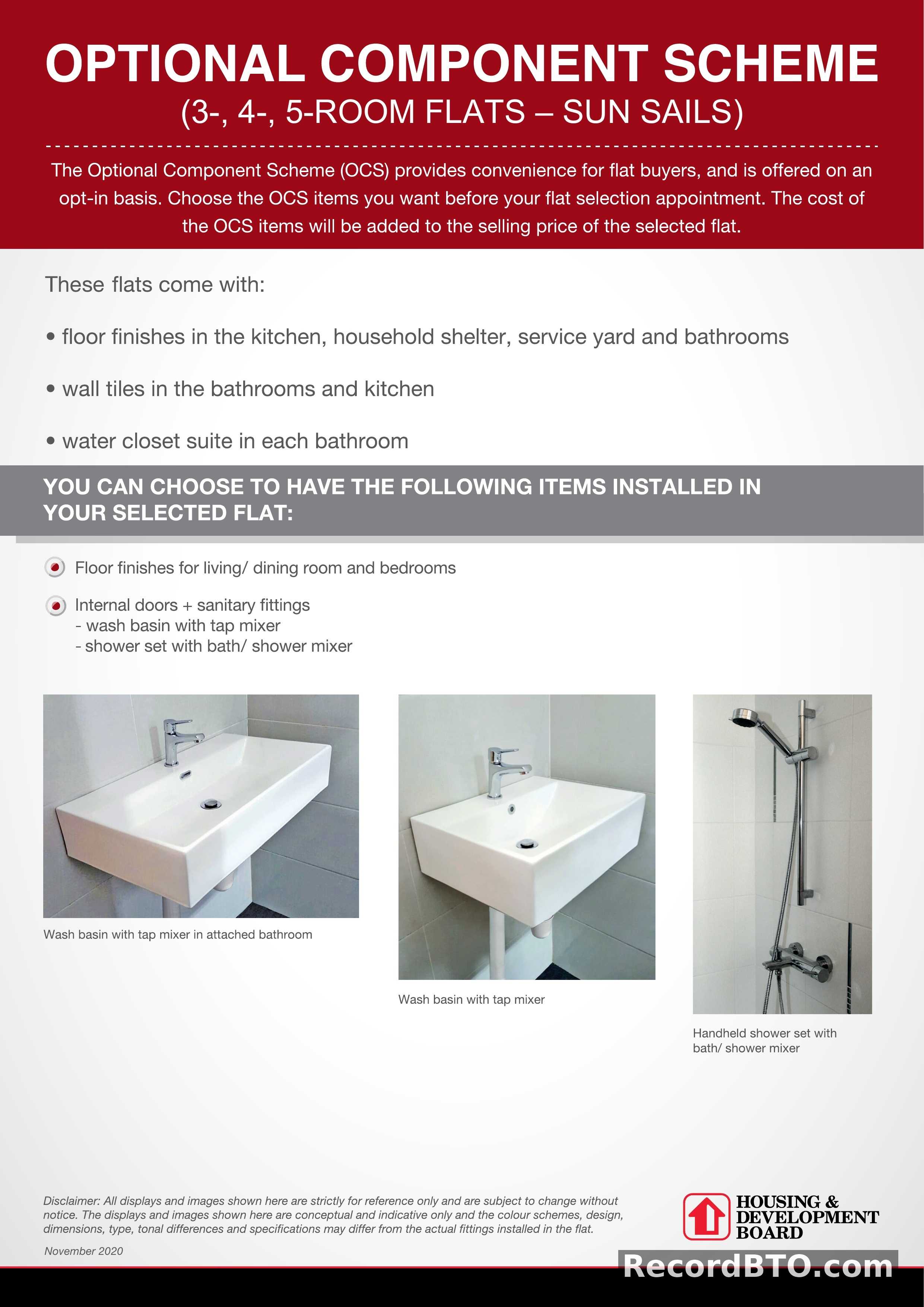

Optional Component Scheme for 3-, 4-, 5-Room Flats

Information on the Optional Component Scheme (OCS) for 3-, 4-, and 5-room HDB flats. The OCS is an opt-in scheme, and the cost of selected items will be added to the flat's selling price. Flats come standard with: - Floor finishes in the kitchen, household shelter, service yard, and bathrooms. - Wall tiles in the bathrooms and kitchen. - Water closet suite in each bathroom. Optional items that can be installed under OCS include: - Floor finishes for the living/dining room and bedrooms. - Internal doors and sanitary fittings, specifically: - Wash basin with tap mixer (two variations shown). - Shower set with bath/shower mixer.
