Bishan Ridges

HDB BTO Sales Launch Overview

This is the introductory page for an HDB BTO sales launch. The page features the project name 'Bishan RIDGES' and announces 'HDB's Sales Launch November 2020'. A prominent artist's impression showcases multiple modern residential blocks surrounded by extensive green spaces and a water body, under a clear blue sky, illustrating the development's environment. The lower section includes a lifestyle photograph of a smiling couple holding a blue baby romper, set in a nursery-like room with a baby crib, conveying a family-centric and aspirational theme for potential homeowners.

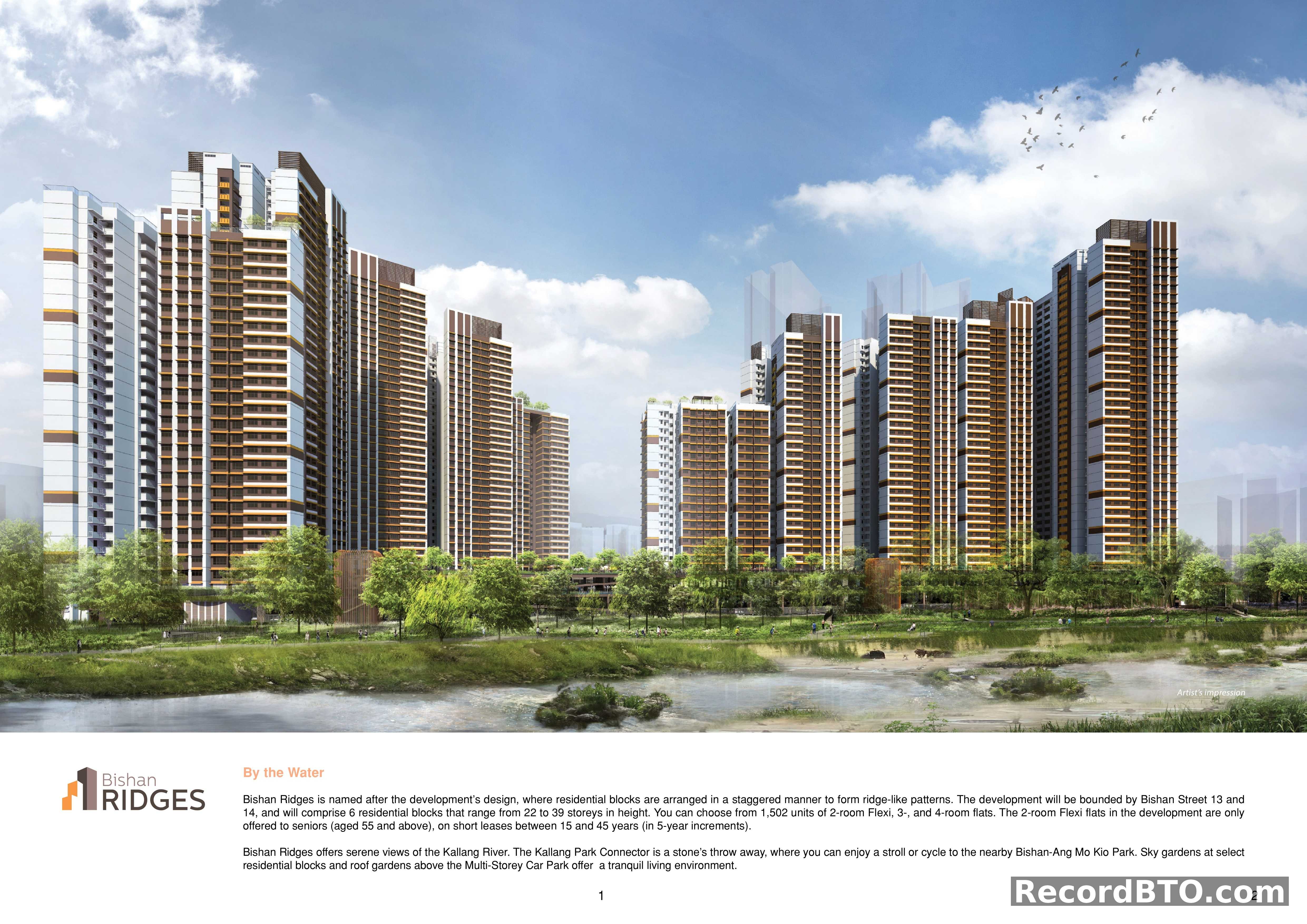

HDB BTO Project Overview: Artist's Impression and Key Details

Residential development overview for a project named Bishan Ridges. The development is located between Bishan Street 13 and 14, comprising 6 residential blocks that range from 22 to 39 storeys in height. It offers a total of 1,502 units, including 2-room Flexi, 3-room, and 4-room flat types. 2-room Flexi flats are exclusively for seniors (aged 55 and above), available on short leases between 15 and 45 years (in 5-year increments). The architectural design features residential blocks arranged in a staggered manner to form ridge-like patterns. Amenities include serene views of the Kallang River, proximity to the Kallang Park Connector, and nearby Bishan-Ang Mo Kio Park. Sky gardens at select residential blocks and roof gardens above the Multi-Storey Car Park are also provided.

Development Overview: Facilities & Green Spaces

Artist's impression of the development's communal spaces and amenities. The impression showcases high-rise residential buildings surrounded by lush green landscaping, featuring children's playgrounds with colorful equipment and winding pedestrian pathways. Described facilities include: - Fitness stations, children's playgrounds, and a hard court. - An elderly facility, childcare centre, and Residents' Committee Centre. - Retail shops, a mini-mart, and an eating house. These facilities are stated to be open to the public. A photograph of two elderly individuals jogging in a park is also included. The page number is 3.

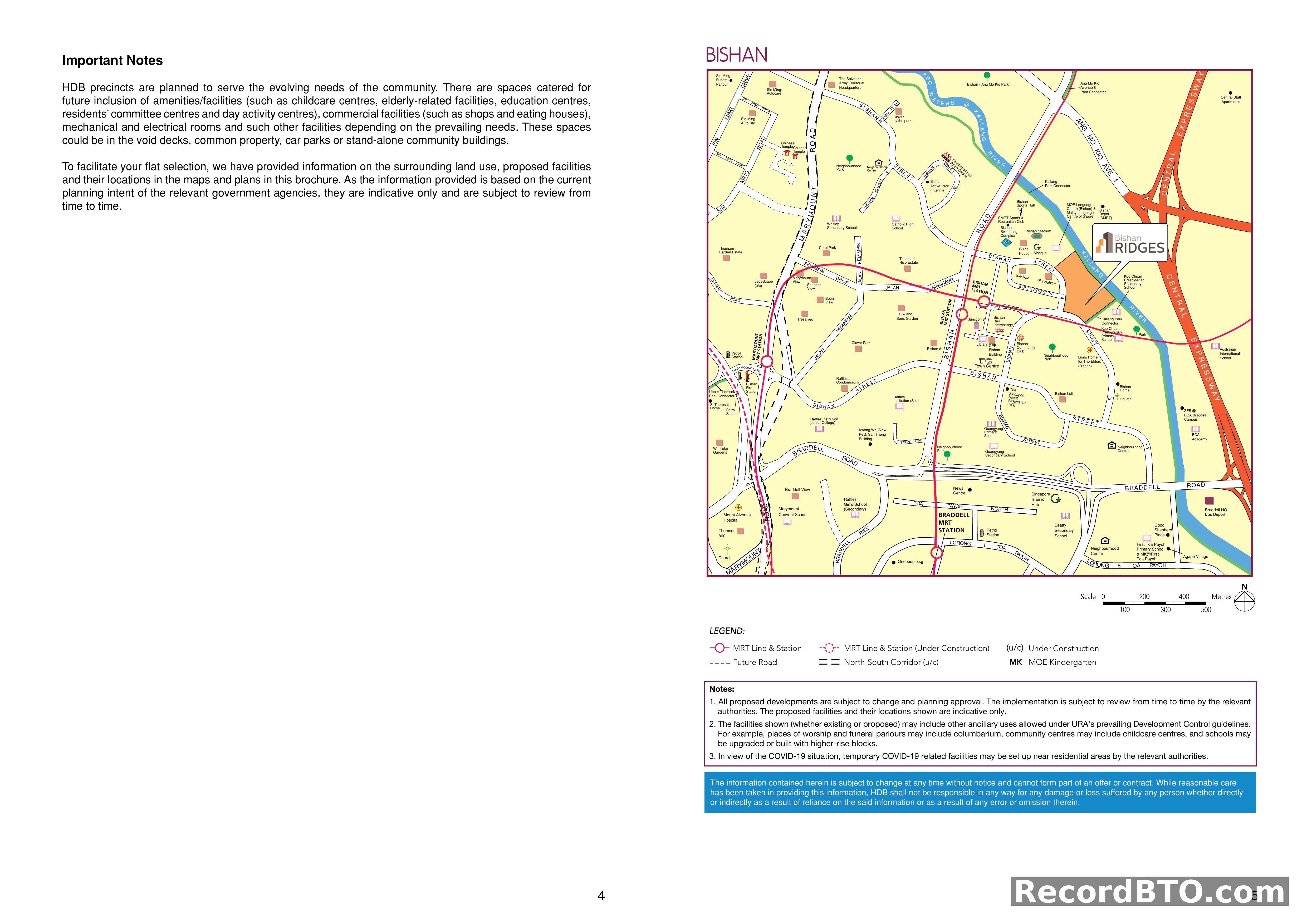

Bishan HDB BTO Area Map and General Information

Location map for the Bishan area, featuring the Bishan RIDGES project. Key transport infrastructure includes: - MRT Stations: Bishan (North-South & Circle Lines), Marymount (Circle Line), Braddell (North-South Line). - Major roads: Marymount Road, Bishan Street, Braddell Road, Central Expressway. - Future North-South Corridor (under construction). Nearby amenities and facilities: - Schools: Catholic High School, Whitley Secondary School, Raffles Institution, Kuo Chuan Presbyterian Primary School, Beatty Secondary School, First Toa Payoh Primary School, Guangyang Secondary School. - Parks: Bishan - Ang Mo Kio Park, Kallang Park Connector, Neighbourhood Park. - Community & Commercial: Bishan Community Club, Library, Junction 8, Lions Home for The Elders. - Healthcare: Mount Alvernia Hospital. General notes specify that HDB precincts are planned for evolving community needs, with provisions for amenities like childcare centres, elderly-related facilities, education centres, shops, and eating houses. All presented information is indicative and subject to review and planning approval.

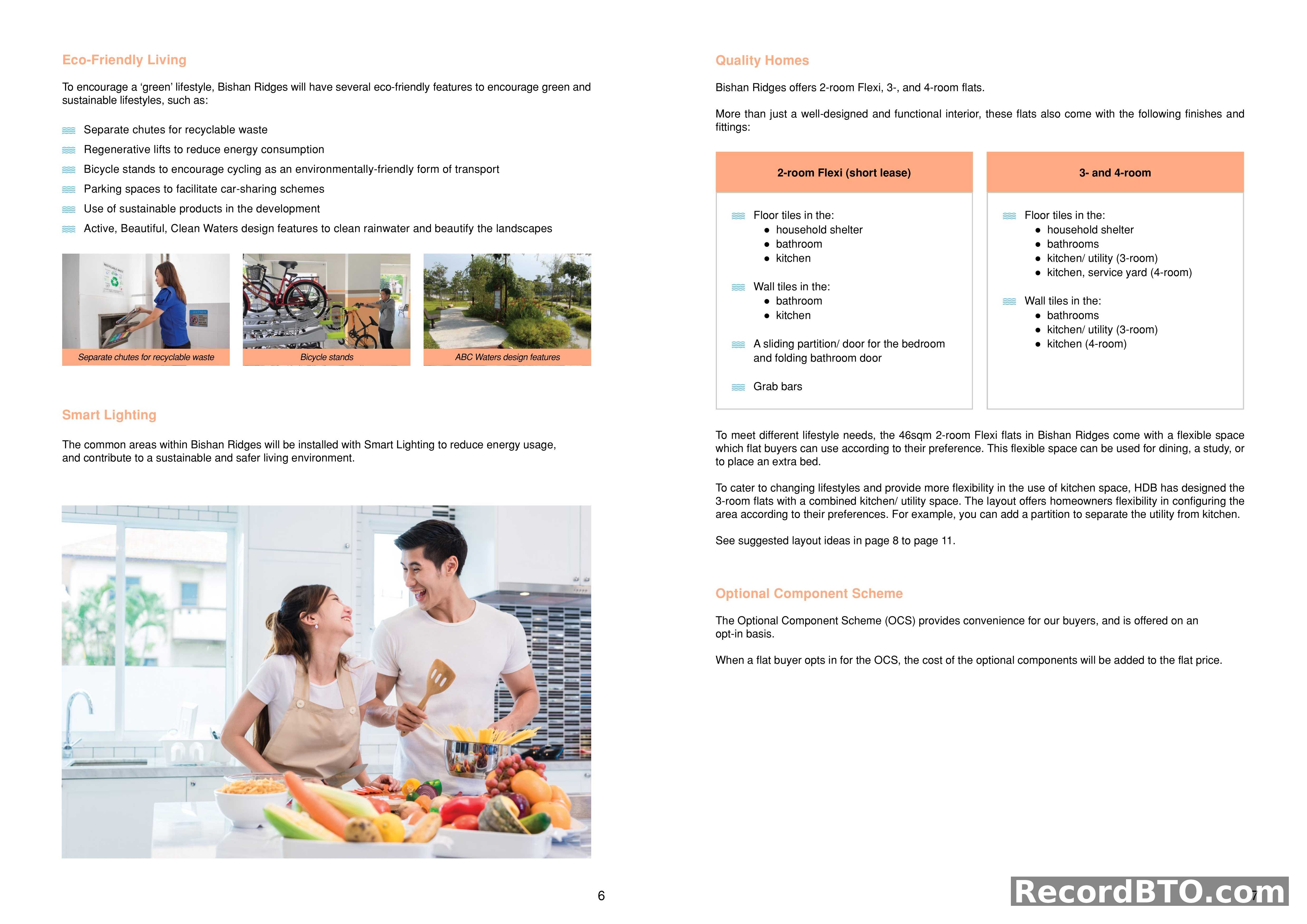

HDB BTO Features, Finishes, and Schemes

Various features and schemes for HDB BTO residential units are detailed on this page. **Eco-Friendly Living:** Includes separate chutes for recyclable waste, regenerative lifts, bicycle stands, parking for car-sharing, use of sustainable products, and Active, Beautiful, Clean Waters (ABC Waters) design features. **Quality Homes (Finishes and Fittings):** - **2-room Flexi (short lease):** Features floor tiles in household shelter, bathroom, and kitchen; wall tiles in bathroom and kitchen; a sliding partition/door for the bedroom; a folding bathroom door; and grab bars. - **3- and 4-room flats:** Include floor tiles in household shelter, bathrooms, kitchen/utility (3-room), and kitchen/service yard (4-room); wall tiles in bathrooms, kitchen/utility (3-room), and kitchen (4-room). **Smart Lighting:** Common areas will be equipped with smart lighting to reduce energy usage and enhance safety. **Flat Type Specifics:** - 46sqm 2-room Flexi flats offer flexible space for dining, study, or an extra bed. - 3-room flats feature a combined kitchen/utility space, allowing homeowners flexibility in configuring the area. **Optional Component Scheme (OCS):** This scheme provides convenience for buyers and is offered on an opt-in basis, with the cost added to the flat price.

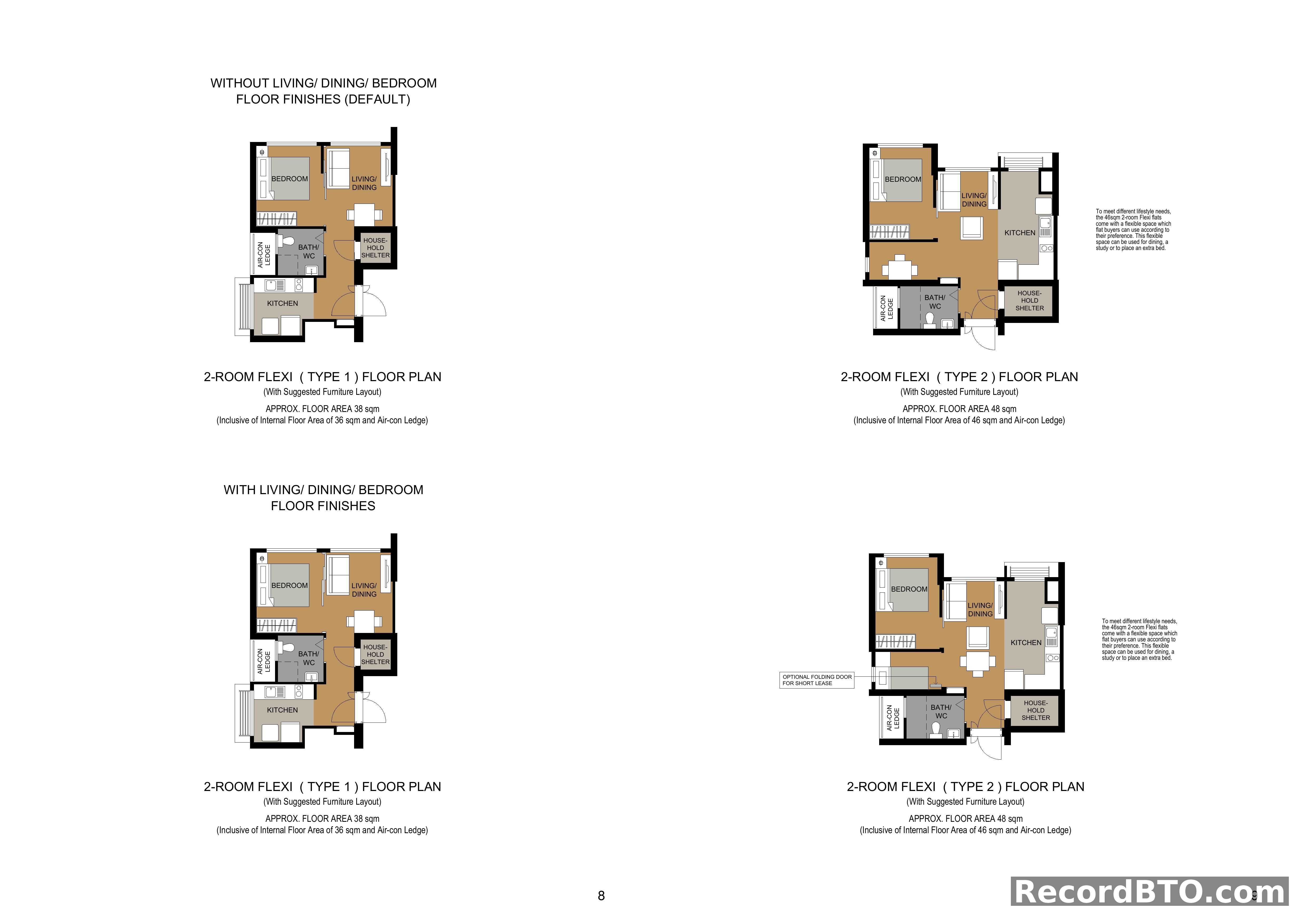

2-Room Flexi Floor Plans: Default & With Finishes

Floor plans for 2-Room Flexi flats are presented, showing both default layouts and layouts with suggested furniture and floor finishes. Two types of 2-Room Flexi flats are detailed: - Type 1: Approximately 38 sqm total floor area (36 sqm internal + Air-con Ledge). - Type 2: Approximately 48 sqm total floor area (46 sqm internal + Air-con Ledge). Both Type 1 and Type 2 layouts include a bedroom, living/dining area, kitchen, bathroom/WC, household shelter, and an air-con ledge. The Type 2 flat features a flexible space that can be adapted for dining, a study, or an extra bed, and an optional folding door for short lease is indicated for this type.

HDB BTO 3-Room and 4-Room Flat Layouts

This page presents detailed floor plans for 3-Room and 4-Room HDB BTO flats, complete with suggested furniture layouts. The 3-Room flat features: - Two bedrooms (one main, one secondary) - Two bathrooms (Bath/WC) - A household shelter - An air-con ledge - A combined kitchen/utility area, designed for flexibility with a suggested partition location - A living/dining area - Approximate total floor area of 68 sqm (65 sqm internal area plus air-con ledge). The 4-Room flat (shown twice with identical layouts) features: - Three bedrooms (one main, two secondary) - Two bathrooms (Bath/WC) - A household shelter - An air-con ledge - A separate kitchen and service yard - A living/dining area - Approximate total floor area of 93 sqm (90 sqm internal area plus air-con ledge).

Precinct Layout, Block Facilities, and Flat Type Summary

Overall site plan for the Bishan Ridges precinct, showing the arrangement of residential blocks 532A, 532B, 532C, 533, 535A, 535B, and 535C, adjacent to the Kallang River and Park Connector. Surrounding landmarks include the MOE Language Centre, Bishan Depot (SMRT), Sky Habitat, and Kuo Chuan Presbyterian Secondary School. On-site amenities visible include children's playgrounds, adult and elderly fitness stations, hard courts, multi-storey carparks, and various linkways. Block 533 features commercial and social communal facilities on its 1st storey (Minimart, Shop, Eating House, Residents' Committee Centre, Elderly Facilities, Generator Room, Bin Centre) and 2nd storey (Child Care Centre, Future Amenities/Facilities, Elderly Facilities). Flat type distribution across the blocks: - Block 532A (39 storeys): 221 4-Room units. - Block 532B (33 storeys): 244 4-Room units. - Block 532C (22/30 storeys): 38 2-Room Flexi Type 1, 118 2-Room Flexi Type 2, 54 3-Room, 56 4-Room (total 266 units). - Block 535A (27/34 storeys): 230 4-Room units. - Block 535B (39 storeys): 301 4-Room units. - Block 535C (27/36 storeys): 70 3-Room, 170 4-Room (total 240 units). All listed blocks have lifts that open at every storey. The total number of units across these blocks is 1502.

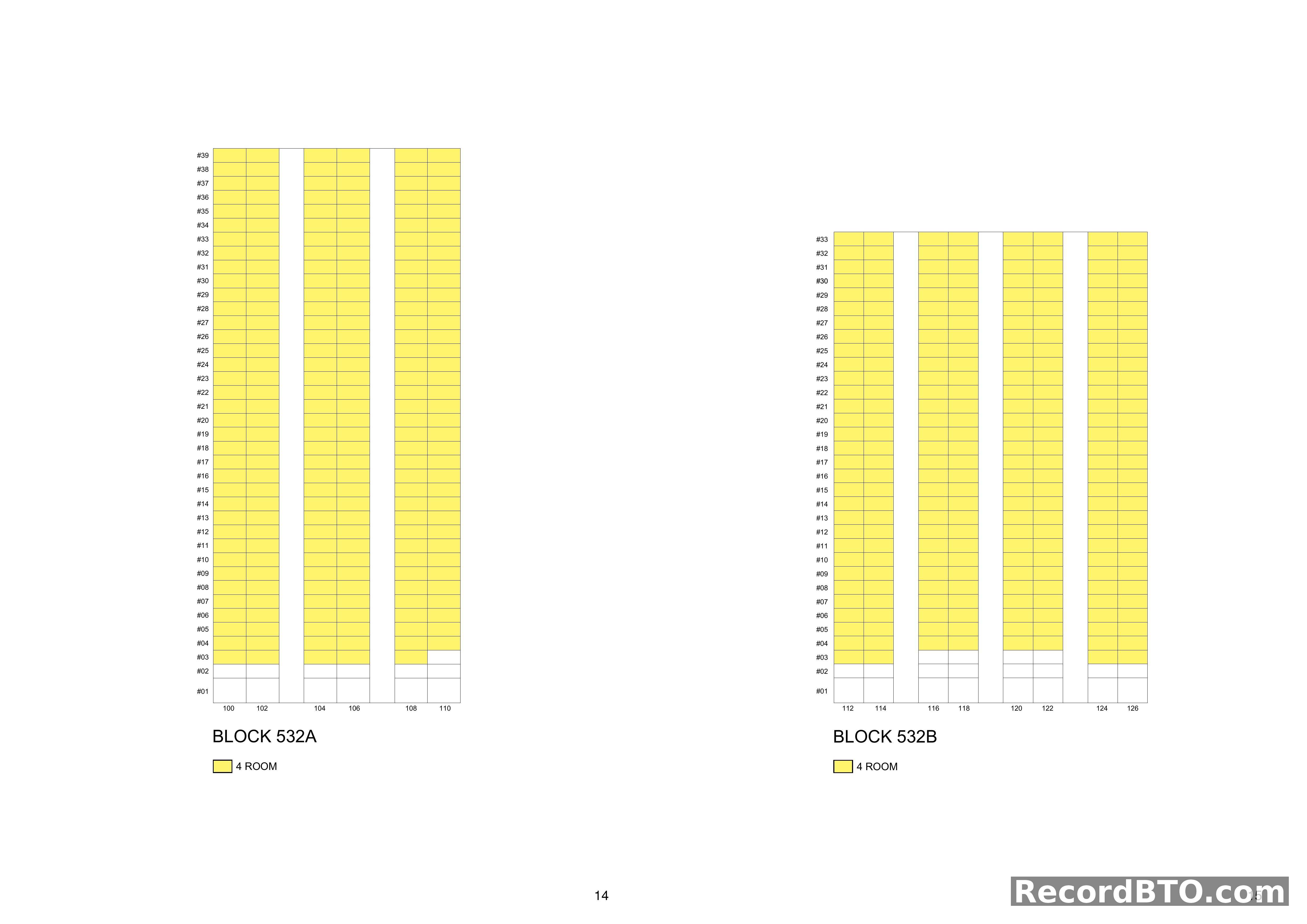

Block 532A & 532B: Available 4-Room Units by Floor Level

Availability chart for 4-Room units in Block 532A and Block 532B. Block 532A: - 4-Room units 100, 102, 104, 106, 108 are available from the 2nd storey (#02) to the 39th storey (#39). - 4-Room unit 110 is available from the 3rd storey (#03) to the 39th storey (#39). - Each floor, where available, has 6 units. Block 532B: - 4-Room units 112, 114, 116, 118, 120, 122, 124, 126 are available from the 2nd storey (#02) to the 33rd storey (#33). - Each floor, where available, has 8 units. Yellow cells indicate available units, while white cells indicate unavailable units on specific floors.

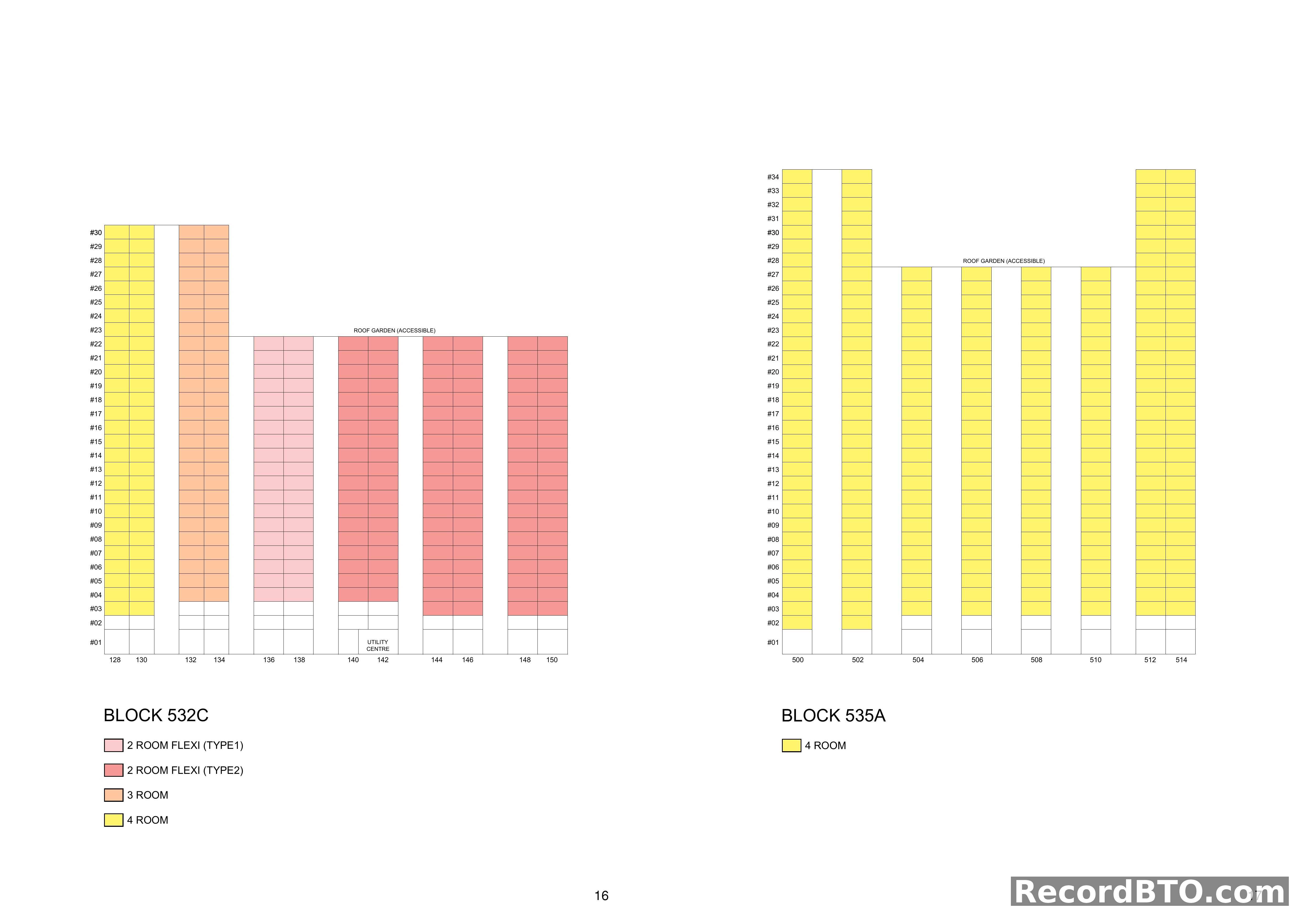

Block 532C & 535A: Unit Type and Floor Distribution

Vertical unit distribution for HDB BTO Blocks 532C and 535A. **Block 532C:** - Features 2-Room Flexi (Type 1 & 2), 3-Room, and 4-Room flats. - Units 128, 130 are 4-Room flats from 2nd to 30th storey. - Units 132, 134 are 3-Room flats from 2nd to 30th storey. - Units 136, 138, 140, 142, 144, 146, 148, 150 are 2-Room Flexi (Type 2) flats from 2nd to 22nd storey. - An accessible roof garden is located above the 22nd storey for units 136-150. - Unit 142 has a Utility Centre at the 1st storey. **Block 535A:** - Consists solely of 4-Room flats. - Units 500, 502, 504, 506, 508, 510, 512, 514 are 4-Room flats from 2nd to 34th storey. - An accessible roof garden is located above the 27th storey for units 504, 506, 508, 510. - The 1st storey for all units in Block 535A appears to be non-residential or common space.

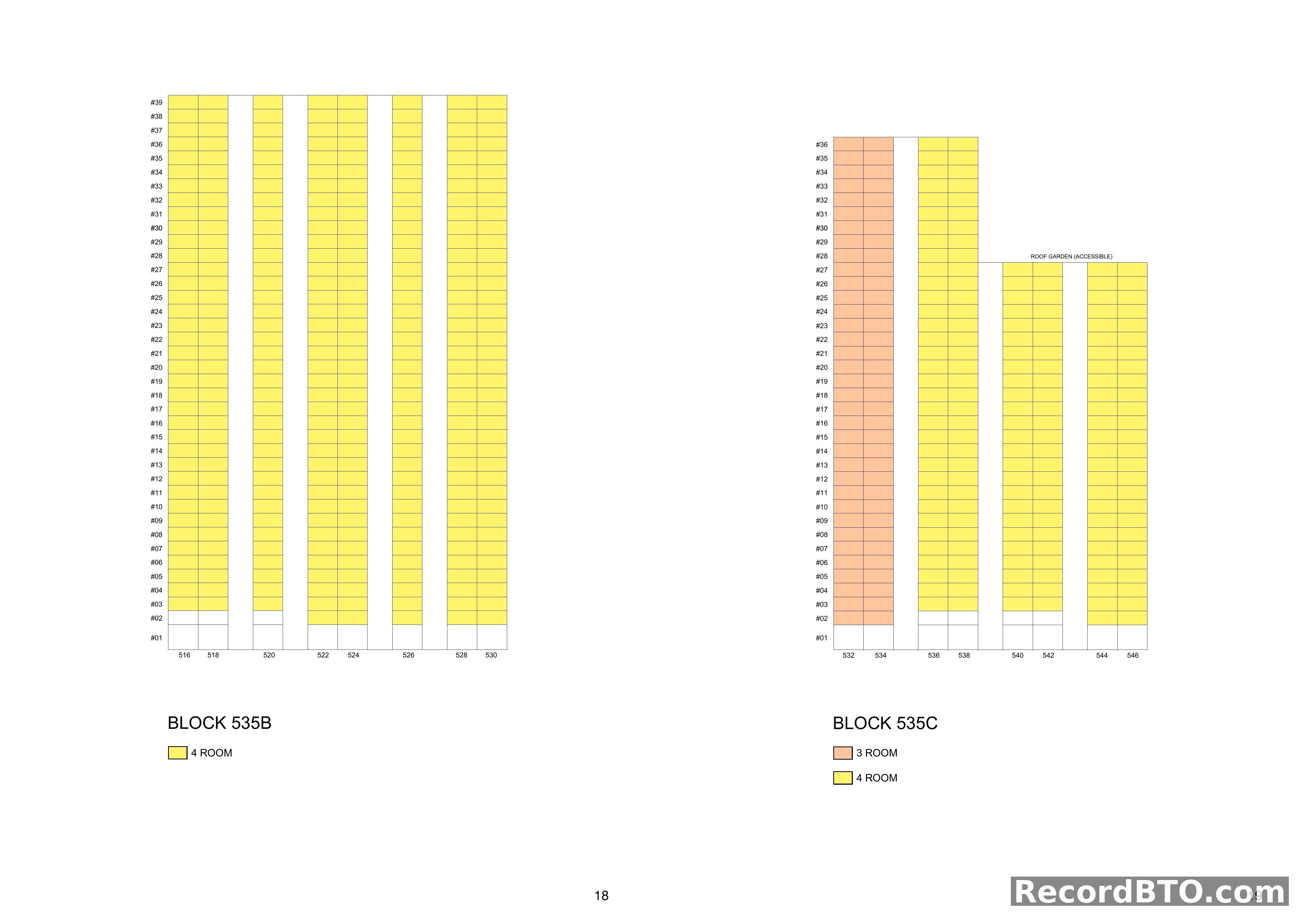

Block 535B & 535C: Unit Distribution and Floor Levels

Block 535B unit distribution and floor levels: All units are 4-Room flats (yellow). Comprises 8 stacks: 516, 518, 520, 522, 524, 526, 528, 530. Each stack extends from level #01 to #39. Block 535C unit distribution and floor levels: Features both 3-Room (orange) and 4-Room (yellow) flats. 3-Room flats are in stacks 532 and 534, from level #01 to #27. 4-Room flats are in stacks 536, 538, 540, 542, 544, 546. Stacks 536 and 538 are 4-Room flats from level #01 to #36. Stacks 540, 542, 544, and 546 are 4-Room flats from level #01 to #27. An accessible roof garden is located above level #27 for stacks 540, 542, 544, and 546.

Block 532A: 3rd Storey Floor Plan with 4-Room Units

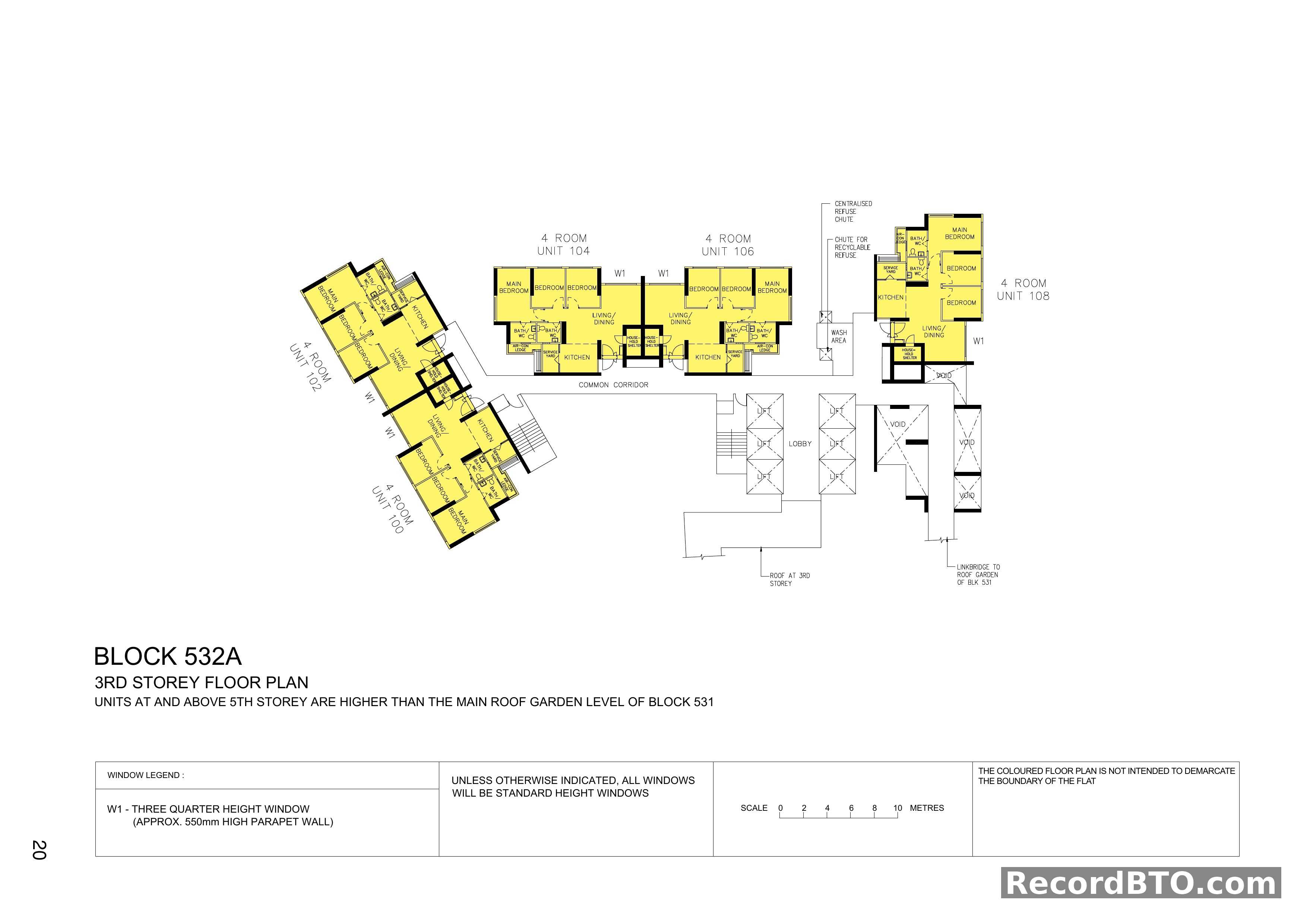

3rd storey floor plan for Block 532A, detailing the layout of five 4-Room units (100, 102, 104, 106, 108). Units at and above the 5th storey are noted as being higher than the main roof garden level of Block 531. Each 4-Room unit typically comprises: - Main Bedroom - Two additional Bedrooms - Living/Dining area - Kitchen - Two Bath/WC (one en-suite to Main Bedroom) - Household Shelter - Service Yard - Air-con Ledge Common facilities include a central lobby with multiple lifts and staircases, a common corridor, a wash area, and centralized refuse chutes (including one for recyclable refuse). A linkbridge connects to the roof garden of Block 531. Windows marked 'W1' are three-quarter height (approx. 550mm high parapet wall), while others are standard height unless specified. The scale is provided in meters.

Block 532A: 4th to 39th Storey Floor Plan

Floor plan for Block 532A, covering levels 4 through 39. All units shown are 4-Room flats. Units on this floor include: 100, 102, 104, 106, 108, and 110. Each 4-Room unit features a living/dining area, kitchen, main bedroom, two additional bedrooms, two bathrooms (Bath/WC), a household shelter, service yard, and air-con ledge. Common facilities include a central lobby with lifts and stairs, a common corridor, a wash area, and centralized refuse chutes (general and recyclable). Window specifications note 'W1' as a three-quarter height window (approx. 550mm high parapet wall), with other windows being standard height. Units at and above the 5th storey are noted to be higher than the main roof garden level of Block 531.

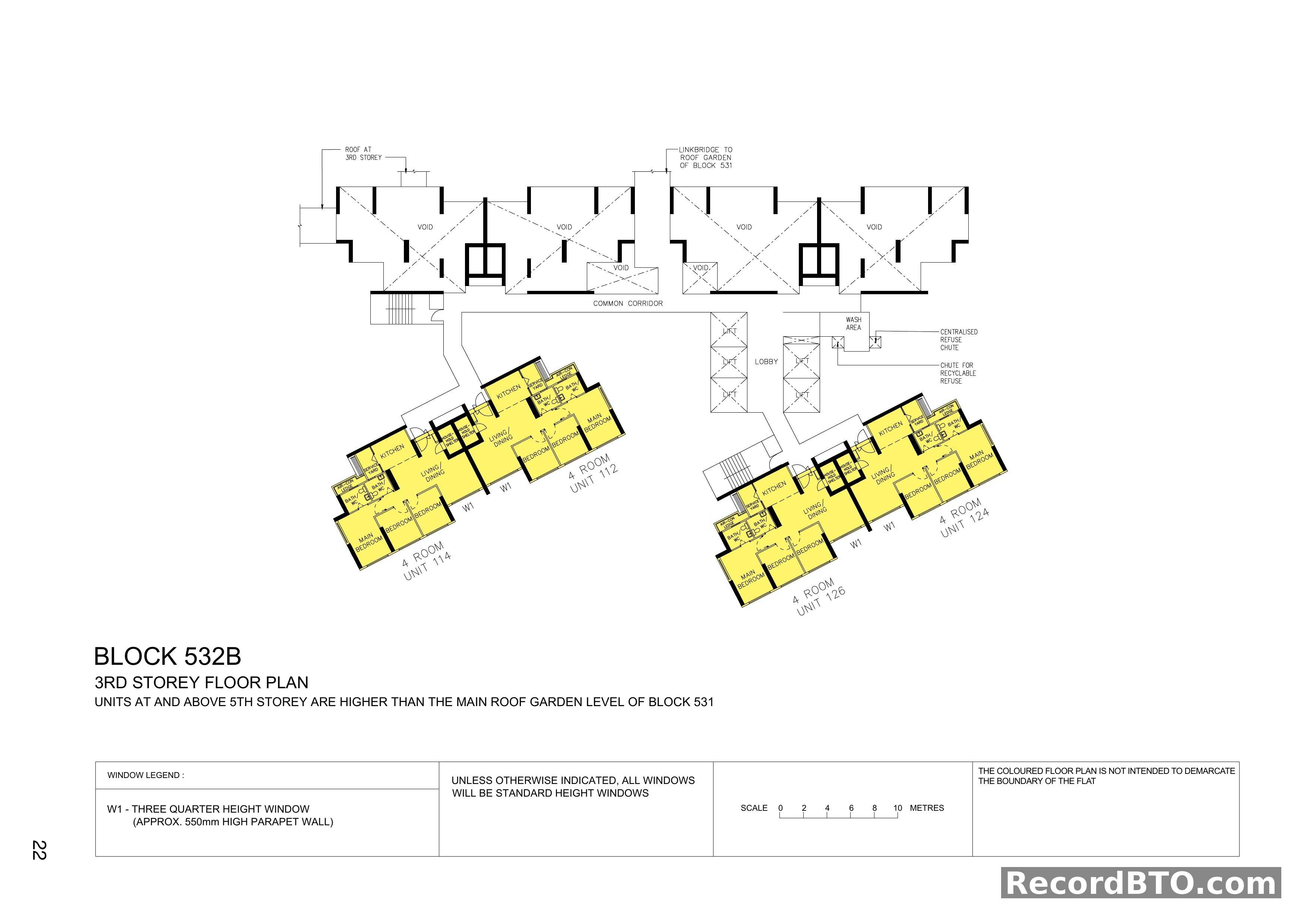

Block 532B: 3rd Storey 4-Room Floor Plan

3rd storey floor plan for Block 532B, featuring four 4-Room units: 112, 114, 124, and 126. Each 4-Room unit includes a kitchen, service yard, air-con ledge, household shelter, living/dining area, two common bedrooms, a main bedroom, and two bathrooms/WCs. The floor features a common corridor, a central lobby with multiple lifts, a wash area, and centralized refuse chutes for general and recyclable waste. An external linkbridge connects to the roof garden of Block 531. Units at and above the 5th storey are noted to be higher than the main roof garden level of Block 531. Window type "W1" denotes a three-quarter height window with an approximate 550mm high parapet wall; other windows are standard height.

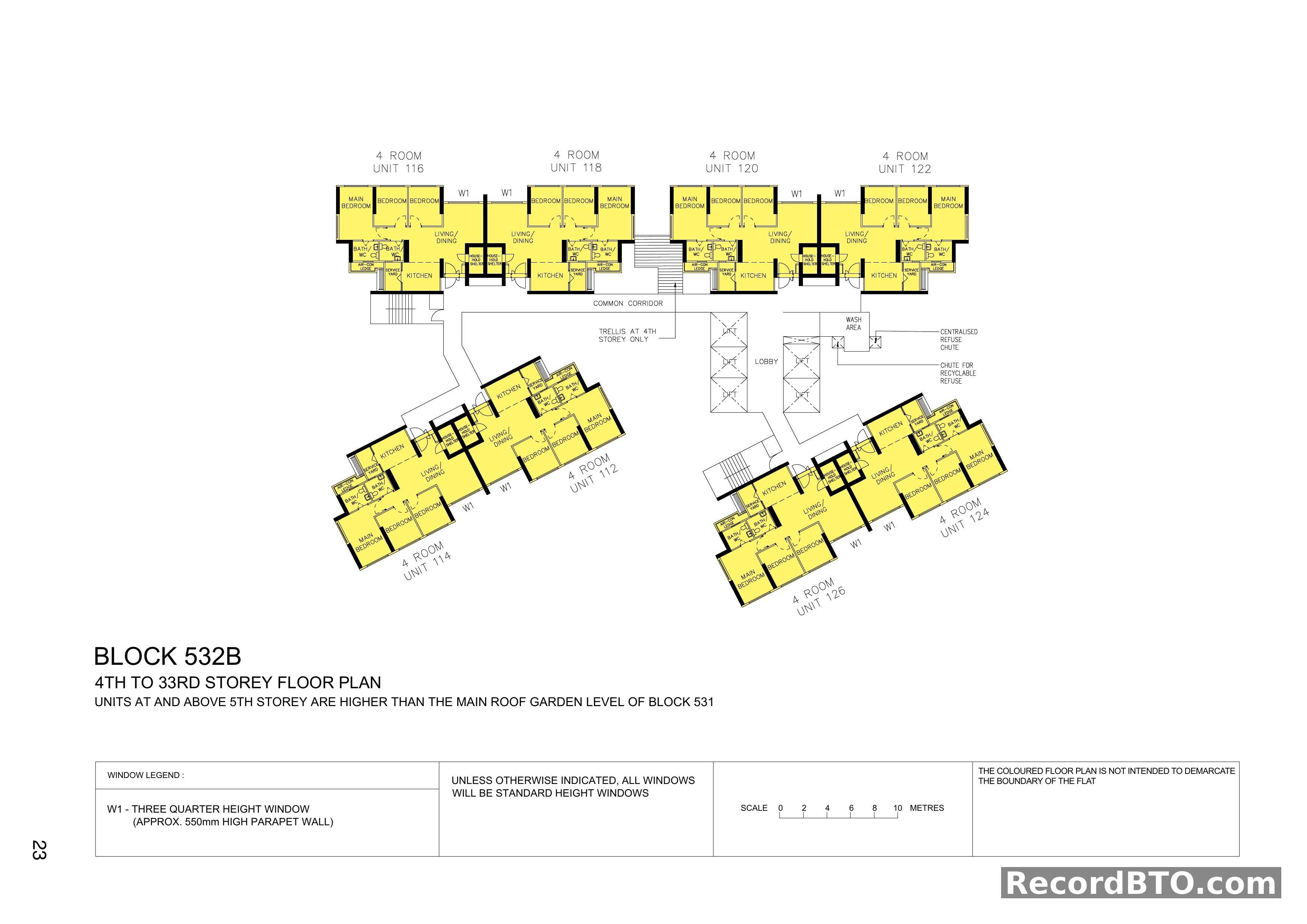

Block 532B: 4th to 33rd Storey 4-Room Floor Plans

Floor plan for Block 532B, covering the 4th to 33rd storeys. Units at and above the 5th storey are noted to be higher than the main roof garden level of Block 531. All units depicted are 4-Room flats, including unit numbers 112, 114, 116, 118, 120, 122, 124, and 126. Each 4-Room flat features a main bedroom, two additional bedrooms, a living/dining area, kitchen, two bathrooms/WCs, a household shelter, service yard, and air-conditioning ledge. Common facilities include a common corridor, a central lobby with multiple lifts, a wash area, and chutes for both centralised and recyclable refuse. A trellis is indicated specifically for the 4th storey only. Windows marked 'W1' are three-quarter height (approximately 550mm high parapet wall), while others are standard height unless specified.

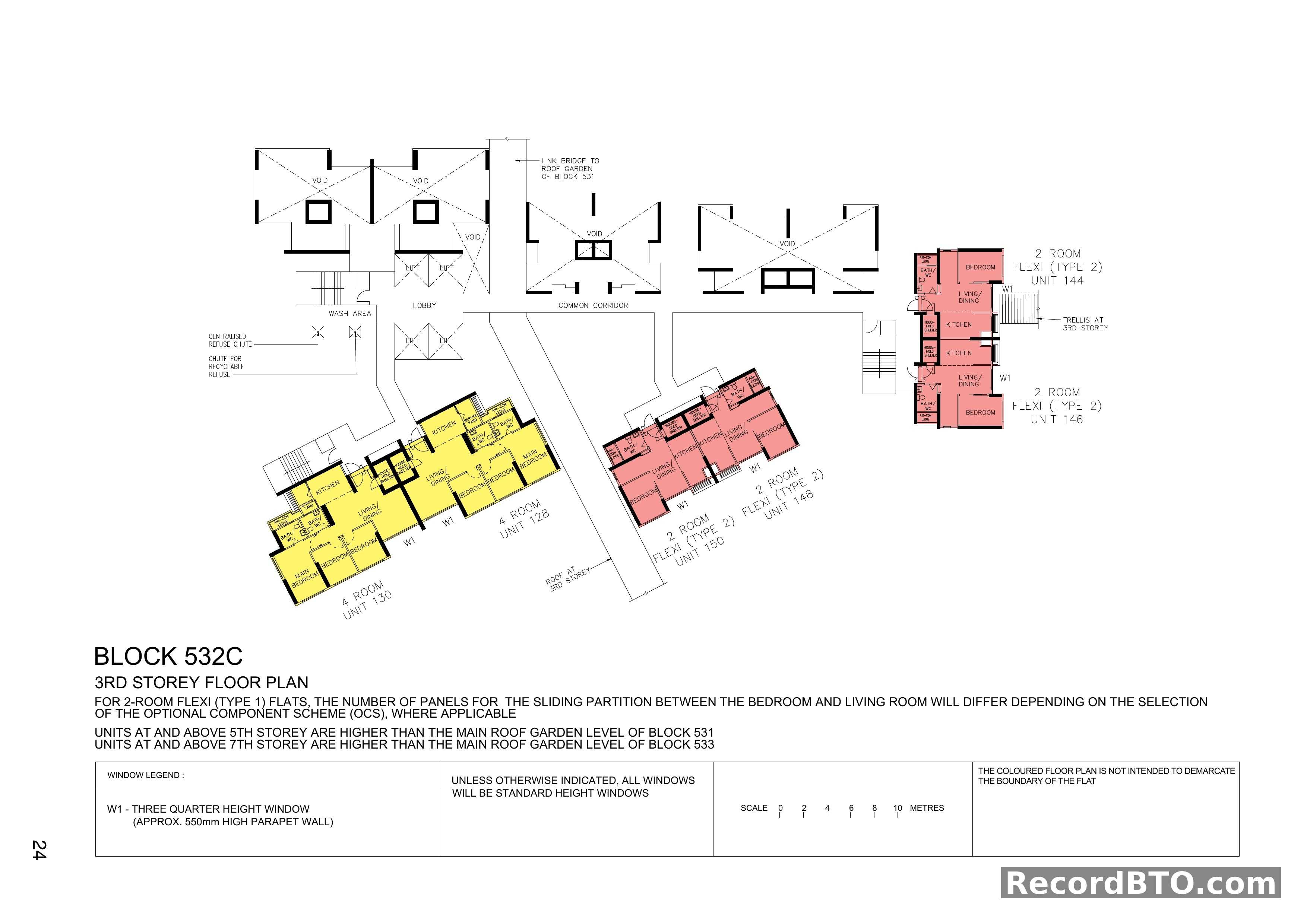

Block 532C: 3rd Storey Floor Plan

Floor plan for Block 532C, 3rd storey. Unit types available: - 4-Room flats: Units 130, 128. Each includes a main bedroom, two additional bedrooms, living/dining area, kitchen, two bathrooms (Bath/WC), household shelter, and service yard. - 2-Room Flexi (Type 2) flats: Units 150, 148, 144, 146. Each includes a bedroom, living/dining area, kitchen, one bathroom (Bath/WC), and household shelter. Unit 144 features a trellis at the 3rd storey. Common facilities on this floor include a lobby, wash area, common corridor, centralised refuse chute, and a chute for recyclable refuse. A link bridge connects to the roof garden of Block 531. Units 128 and 150 are situated adjacent to a roof area at the 3rd storey. Window type W1 denotes a three-quarter height window (approximately 550mm high parapet wall). All other windows are standard height unless otherwise indicated. For 2-Room Flexi (Type 1) flats, the number of panels for the sliding partition between the bedroom and living room depends on the selection of the Optional Component Scheme (OCS). Units at and above the 5th storey are higher than the main roof garden level of Block 531, and units at and above the 7th storey are higher than the main roof garden level of Block 533.

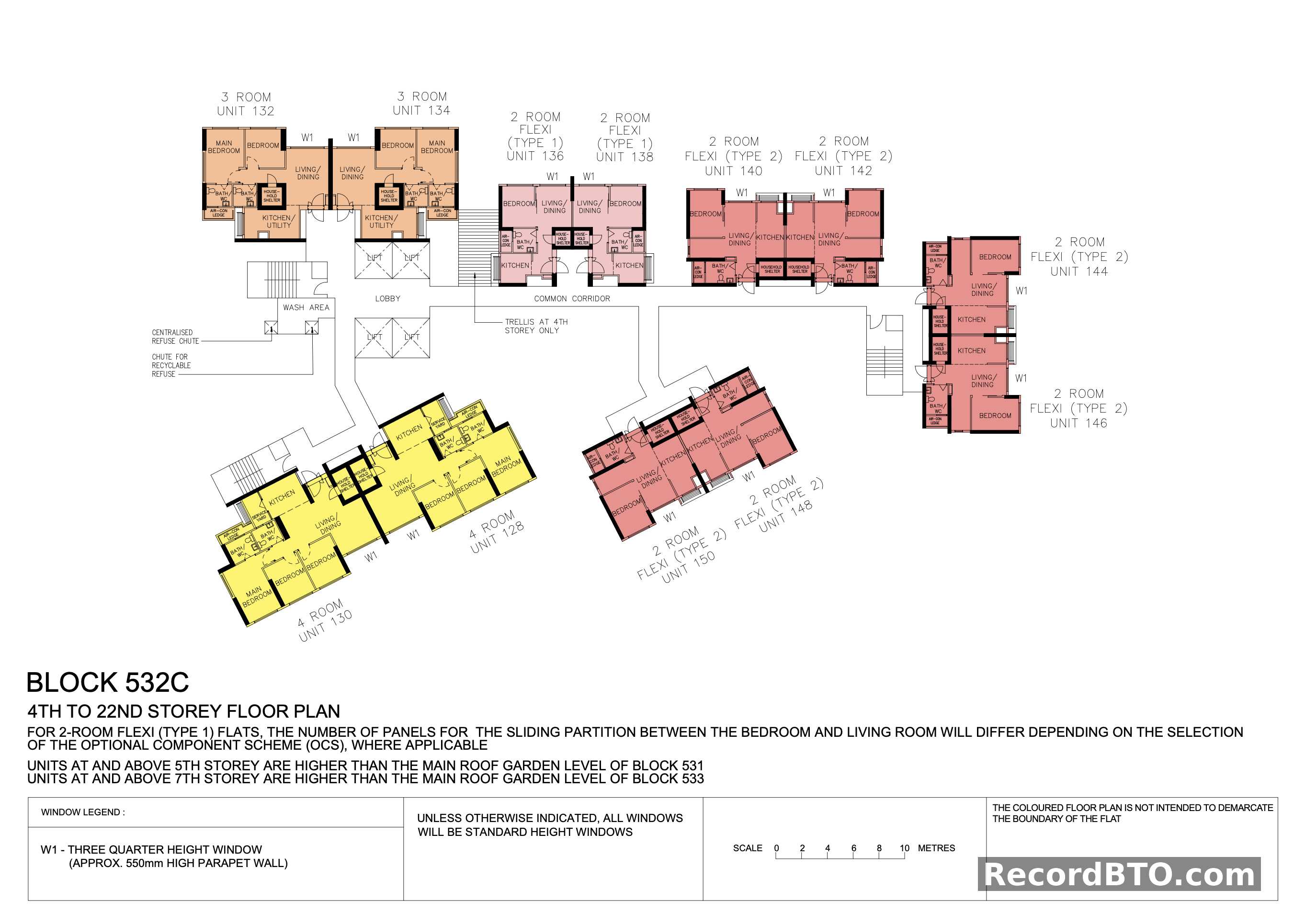

Block 532C: 4th-22nd Storey Floor Plan

Floor plan for Block 532C, applicable for levels 4 through 22. Unit types and numbers shown: - 3-Room: Units 132, 134 (2 bedrooms, 2 bathrooms, kitchen/utility, household shelter) - 2-Room Flexi (Type 1): Units 136, 138 (1 bedroom, 1 bathroom, kitchen, household shelter) - 2-Room Flexi (Type 2): Units 140, 142, 144, 146, 148, 150 (1 bedroom, 1 bathroom, kitchen, household shelter) - 4-Room: Units 128, 130 (3 bedrooms, 2 bathrooms, kitchen, service yard, household shelter) All units feature a living/dining area and an air-con ledge. Common facilities include a lobby, common corridor, wash area, and centralized refuse chutes. A trellis is present at the 4th storey only. Window 'W1' indicates a three-quarter height window (approx. 550mm high parapet wall); other windows are standard height. Notes indicate that units at and above 5th storey are higher than Block 531's main roof garden, and units at and above 7th storey are higher than Block 533's main roof garden.

Block 532C: 23rd Storey Floor Plan

23rd storey floor plan for Block 532C. The floor features four residential units: - Two 3-Room units (Unit 132, Unit 134), each with a main bedroom, one additional bedroom, living/dining area, kitchen/utility, household shelter, bath/WC, and air-con ledge. - Two 4-Room units (Unit 128, Unit 130), each with a main bedroom, two additional bedrooms, living/dining area, kitchen, service yard, household shelter, two bath/WCs, and air-con ledge. Common facilities include a central lobby, common corridor, wash area, centralised refuse chute, and a chute for recyclable refuse. The 23rd storey also features inaccessible green roofs and roof gardens. The roof gardens on the 23rd storey are accessible from the 24th storey. Units at and above the 5th storey are higher than the main roof garden level of Block 531. Units at and above the 7th storey are higher than the main roof garden level of Block 533. Windows marked 'W1' are three-quarter height (approx. 550mm high parapet wall), while others are standard height.

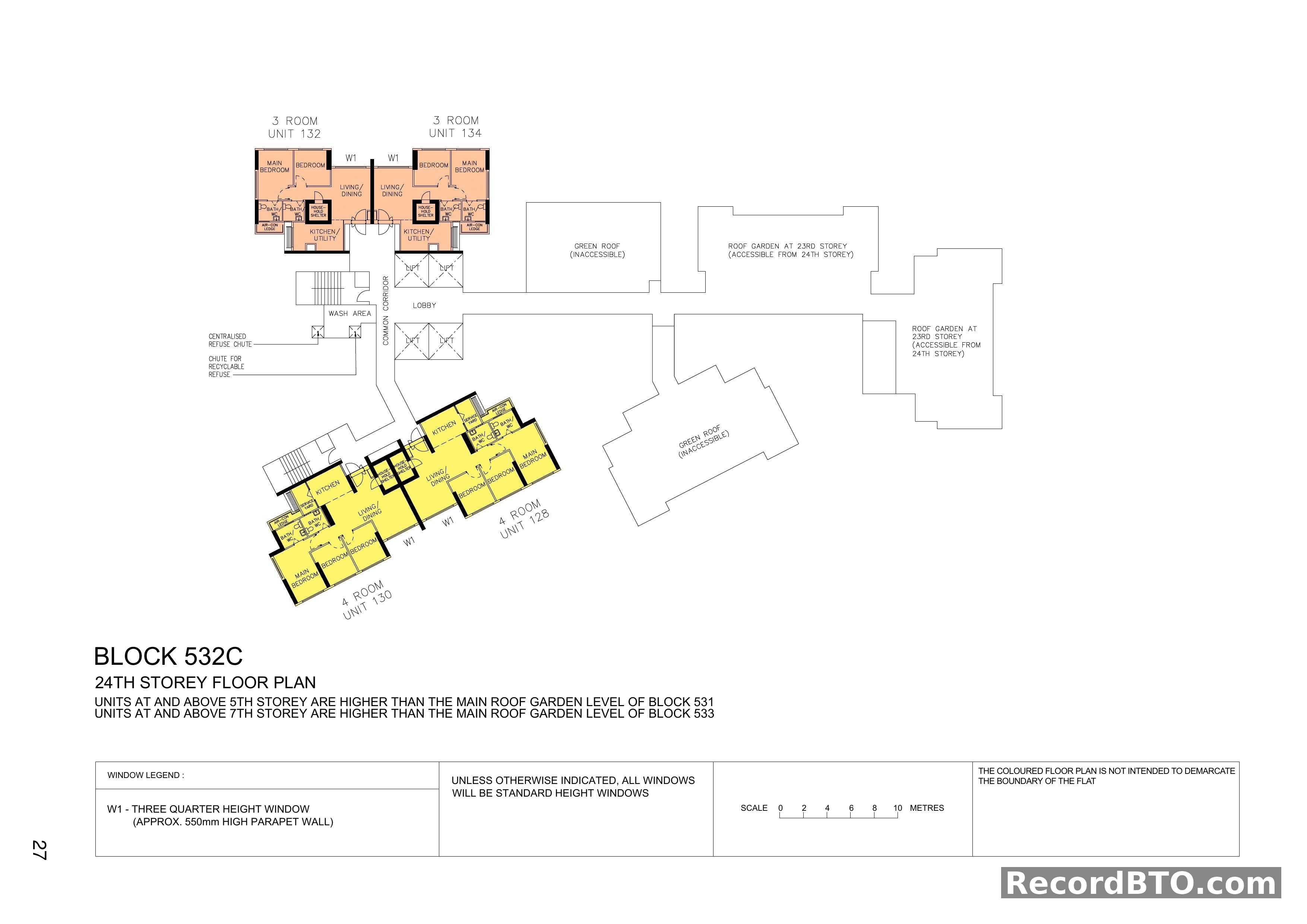

Block 532C: 24th Storey Floor Plan

24th storey floor plan for Block 532C, featuring four residential units and common facilities. Unit types and numbers: - 3-Room flats: Units 132 and 134, each with 1 Main Bedroom and 1 additional Bedroom. - 4-Room flats: Units 128 and 130, each with 1 Main Bedroom and 2 additional Bedrooms. All units include a Living/Dining area, Kitchen/Utility, Household Shelter, Bath/WC, and Air-con Ledge. 4-Room units also feature a Service Yard. Common areas shown are a central lobby, common corridor, wash area, centralised refuse chute, and recyclable refuse chute. The plan indicates surrounding 'Green Roof (Inaccessible)' areas and 'Roof Garden at 23rd Storey' which is accessible from the 24th storey. A window legend defines 'W1' as a three-quarter height window (approx. 550mm high parapet wall). Units at and above the 5th storey are higher than the main roof garden level of Block 531, and units at and above the 7th storey are higher than the main roof garden level of Block 533. A scale bar indicates measurements in metres.

Block 532C: 25th-30th Storey Floor Plan

Floor plan for Block 532C, covering levels 25 through 30. Unit types available: - 3-Room flats: Units 132, 134. Each includes a main bedroom, one additional bedroom, living/dining area, kitchen/utility, household shelter, and two bathrooms. - 4-Room flats: Units 128, 130. Each includes a main bedroom, two additional bedrooms, living/dining area, kitchen, service yard, air-con ledge, household shelter, and two bathrooms. The floor features a central lobby with lifts and stairs, a common corridor, a wash area, and centralized refuse chutes. A trellis is indicated at the 25th storey only. Units at and above the 5th storey are higher than the main roof garden level of Block 531, and units at and above the 7th storey are higher than the main roof garden level of Block 533. Windows marked W1 are three-quarter height (approx. 550mm high parapet wall), while others are standard height.

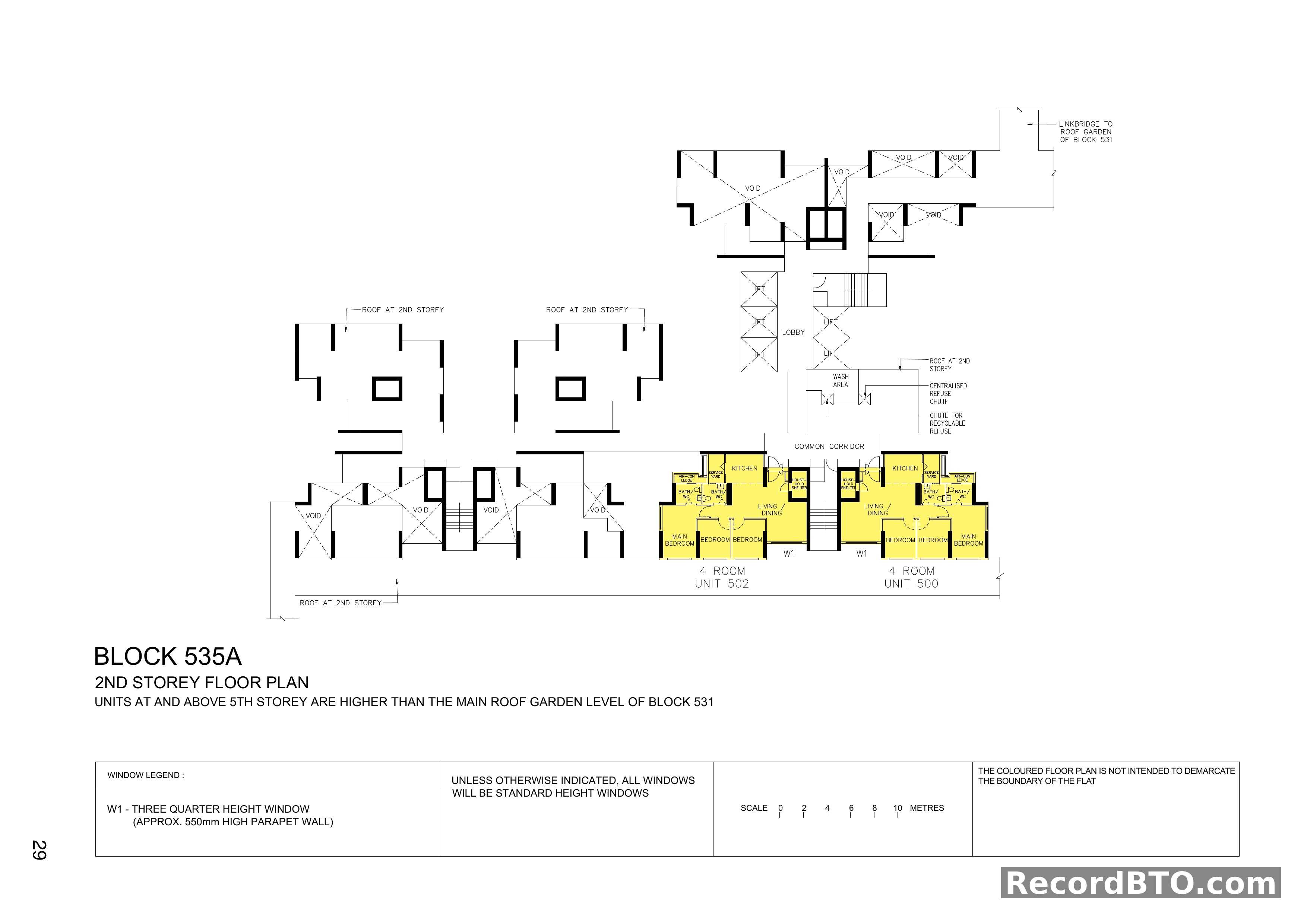

Block 535A: 2nd Storey Floor Plan

2nd storey floor plan for Block 535A. The plan details two 4-Room units, Unit 500 and Unit 502, both highlighted in yellow. Each 4-Room unit features a Kitchen, Living/Dining area, Main Bedroom, two additional Bedrooms, a Bath/WC, Service Yard, Household Shelter, and Air-Con Ledge. Common facilities on this level include a lift lobby with multiple lifts, a staircase, a wash area, a centralised refuse chute, and a chute for recyclable refuse, all accessible via a common corridor. The plan also indicates surrounding roof areas at the 2nd storey level and various 'VOID' spaces. A linkbridge connects to the roof garden of Block 531. Units at and above the 5th storey are noted to be higher than the main roof garden level of Block 531. A window legend specifies 'W1' as a three-quarter height window (approx. 550mm high parapet wall), with all other windows being standard height unless otherwise indicated. A scale bar from 0 to 10 metres is provided.

Block 535A: 3rd-27th Storey 4-Room Floor Plan

Floor plan for Block 535A, covering the 3rd to 27th storey. Units at and above the 5th storey are positioned higher than the main roof garden level of Block 531. All units shown are 4-Room flats, including units 500, 502, 504, 506, 508, 510, 512, and 514. Each 4-Room unit typically comprises a main bedroom, two common bedrooms, a living/dining area, kitchen, service yard, household shelter, and two bathrooms. Common facilities include a central lobby with lift access, a wash area, and centralized refuse chutes (both general and recyclable). Specific architectural features noted: - A linkbridge connects to the roof garden of Block 533 at the 4th storey only, adjacent to Unit 508. - A trellis is present at the 5th storey only, near Unit 506. - A roof section is indicated at the 3rd storey only, near Unit 514. Windows marked 'W1' are three-quarter height (approximately 550mm high parapet wall); otherwise, standard height windows are used.

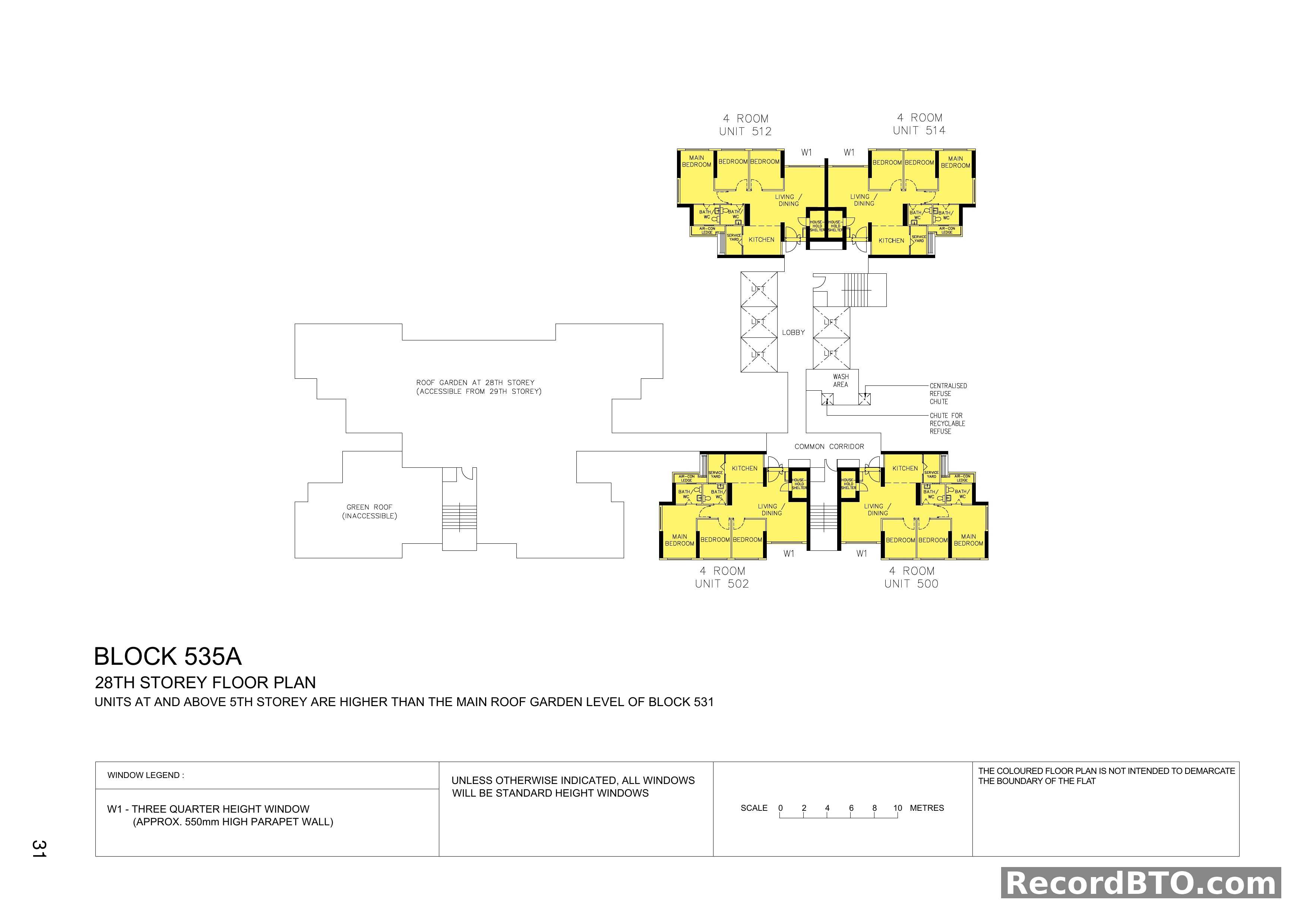

Block 535A: 28th Storey Floor Plan with 4-Room Units

Floor plan for Block 535A on the 28th storey. Four 4-Room units are depicted: Units 500, 502, 512, and 514. Each 4-Room unit includes: - 3 Bedrooms (including a Main Bedroom) - Living/Dining area - Kitchen - 2 Bathrooms (Bath/WC) - Household Shelter - Service Yard - Air-Con Ledge Common facilities on this floor include a lobby, lift access, wash area, centralized refuse chute, and a chute for recyclable refuse. The floor also features a roof garden at the 28th storey, accessible from the 29th storey, and an inaccessible green roof. A window legend indicates 'W1' as a three-quarter height window (approx. 550mm high parapet wall). Units at and above the 5th storey of Block 535A are higher than the main roof garden level of Block 531.

Block 535A: 29th Storey 4-Room Floor Plan

29th storey floor plan for Block 535A, featuring four 4-Room units. Unit types available: - 4-Room flats: Units 500, 502, 512, 514. Each 4-Room unit includes a main bedroom, two additional bedrooms, two bathrooms (one attached to the main bedroom), a living/dining area, kitchen, household shelter, service yard, and air-con ledge. Common facilities on this floor include a central lift lobby, common corridor, wash area, and centralised refuse chutes for general and recyclable waste. A roof garden on the 28th storey is accessible from this 29th storey. An inaccessible green roof is also depicted. Units on this floor are noted to be higher than the main roof garden level of Block 531. The window legend indicates 'W1' as a three-quarter height window (approx. 550mm high parapet wall), with all other windows being standard height unless specified.

Block 535A: 30th-34th Storey Floor Plan

Floor plan for Block 535A, covering the 30th to 34th storeys. Four 4-Room units are shown: Units 500, 502, 512, and 514. Each 4-Room unit features a main bedroom, two additional bedrooms, a living/dining area, kitchen, two bathrooms (one with bath/WC, one with WC), a household shelter, a service yard, and an air-con ledge. Common facilities include a central lobby with lifts, a wash area, and centralized refuse chutes for general and recyclable waste, accessible via a common corridor. Units at and above the 5th storey are noted to be higher than the main roof garden level of Block 531. A trellis is indicated at the 30th storey only. The window legend specifies 'W1' as a three-quarter height window (approx. 550mm high parapet wall), with all other windows being standard height unless indicated.

Block 535B: 2nd Storey Floor Plan and Common Areas

2nd storey floor plan for Block 535B, detailing residential units and common facilities. Five 4-Room units are displayed: Units 530, 528, 526, 524, and 522. Each 4-Room unit features a Living/Dining area, Kitchen, Service Yard, Household Shelter, Main Bedroom, two common Bedrooms, and two Bath/WCs (one attached to the Main Bedroom, one common). Common facilities on this level include a common corridor, lobby, staircase, centralized refuse chute, and a wash area. A linkbridge connects to the roof garden of Block 531. Units from the 5th storey upwards in Block 535B are positioned higher than the main roof garden level of Block 531. Windows marked 'W1' are three-quarter height (approx. 550mm high parapet wall), while others are standard height.

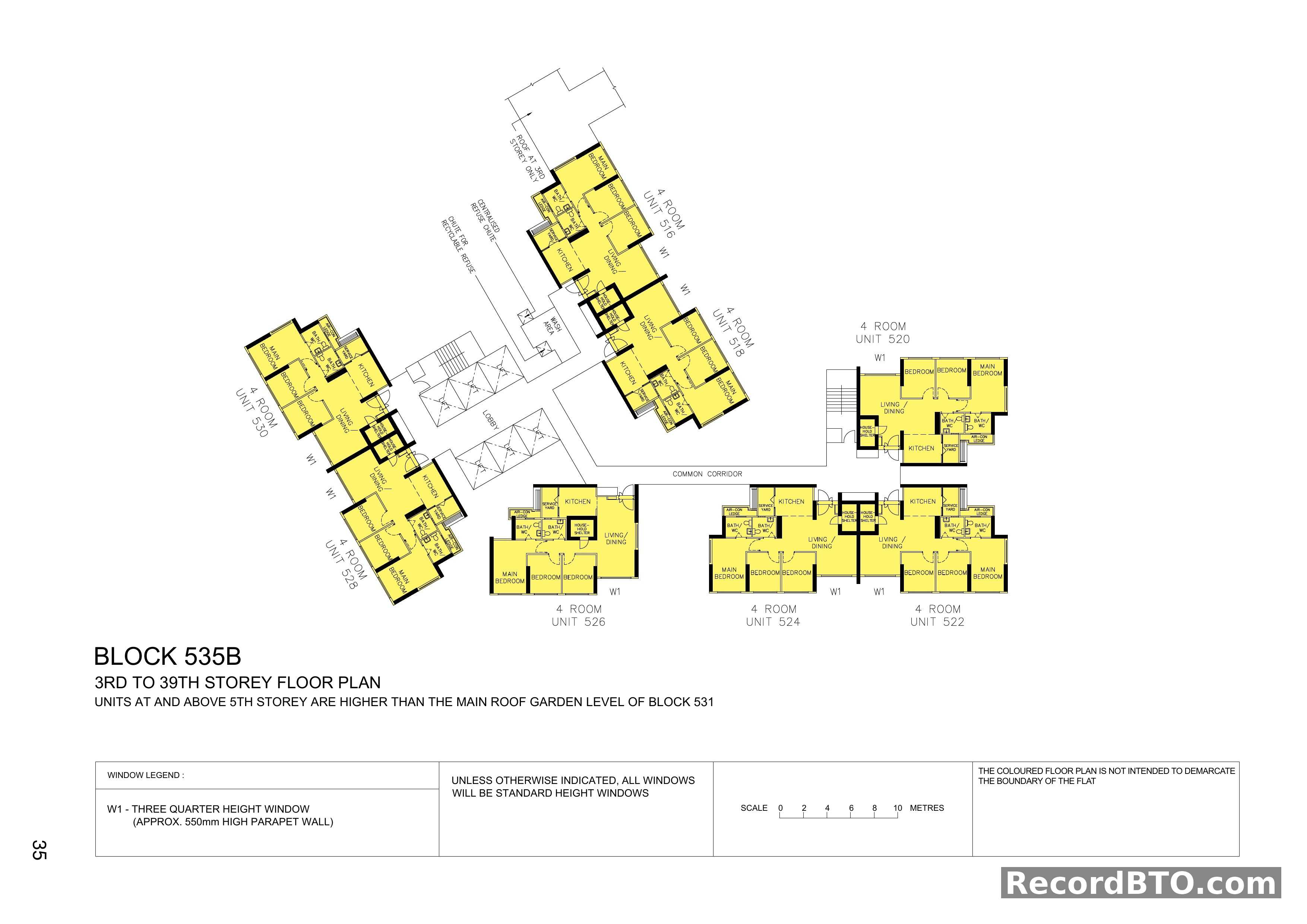

Block 535B: 3rd to 39th Storey Floor Plan

Floor plan for Block 535B, illustrating typical layouts for levels 3 to 39. Units at and above the 5th storey are noted to be higher than the main roof garden level of Block 531. All units shown are 4-Room flats, including unit numbers 516, 518, 520, 522, 524, 526, 528, and 530. Each 4-Room unit features a Living/Dining area, Kitchen, Main Bedroom, two additional Bedrooms, two Bathrooms (BATH/WC), Household Shelter, Service Yard, and Air-Con Ledge. Common facilities include a central lobby, staircase, centralised refuse chute, and a separate chute for recyclable refuse. Unit 516 specifically indicates a "ROOF AT 3RD STOREY ONLY" feature. The window legend defines "W1" as a three-quarter height window (approx. 550mm high parapet wall); otherwise, windows are standard height.

Block 535C: 2nd Storey Floor Plan with 3-Room and 4-Room Units

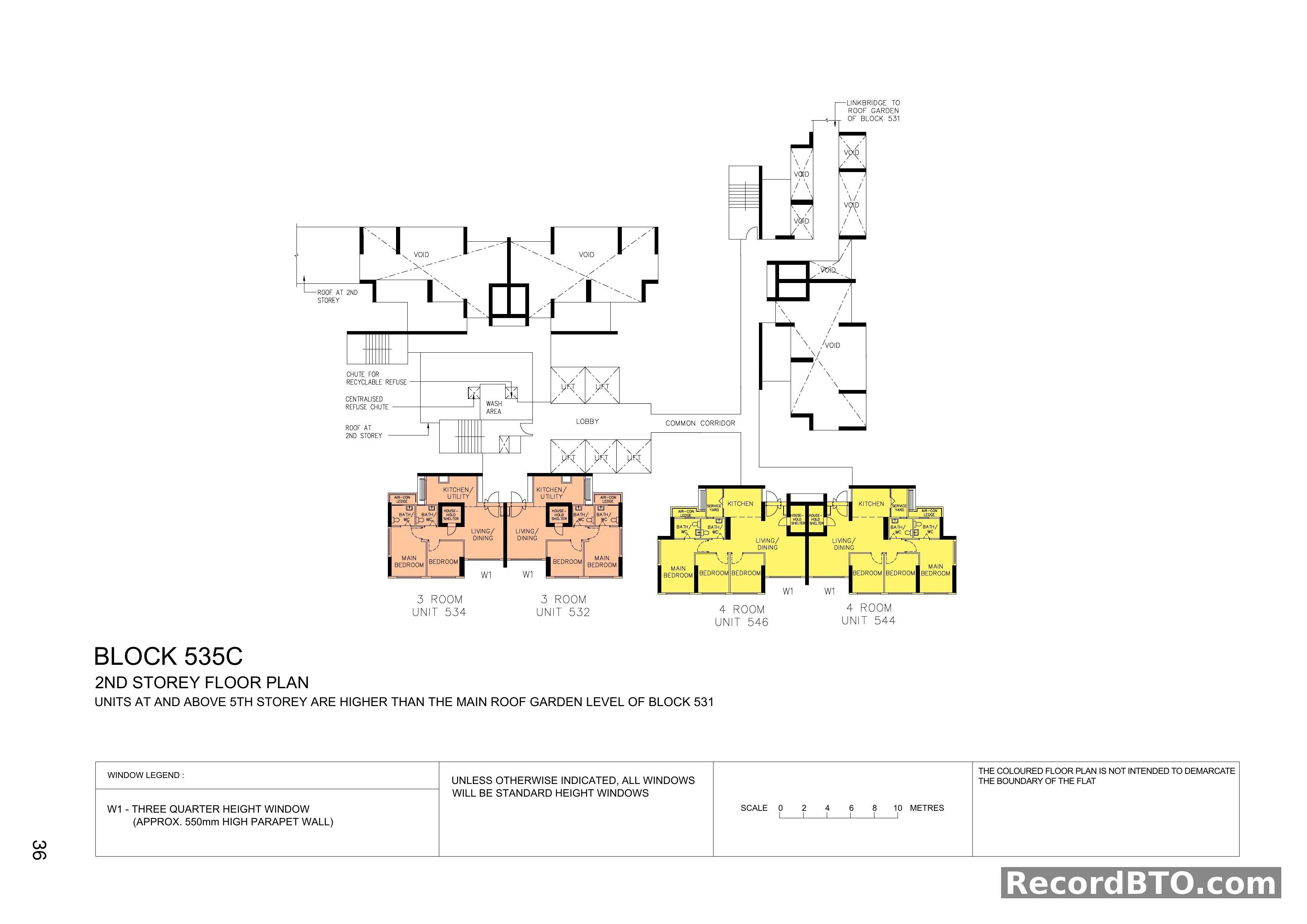

2nd storey floor plan for Block 535C. Units at and above the 5th storey are higher than the main roof garden level of Block 531. Unit types on this floor: - 3-Room flats: Units 532 and 534. Each includes a living/dining area, kitchen/utility, household shelter, bath/WC, and two bedrooms. - 4-Room flats: Units 544 and 546. Each includes a living/dining area, kitchen, service yard, household shelter, two bath/WCs, and three bedrooms. Common facilities on this level include a lobby, common corridor, centralised refuse chute, and wash area. A linkbridge connects to the roof garden of Block 531. Window W1 is a three-quarter height window (approx. 550mm high parapet wall).

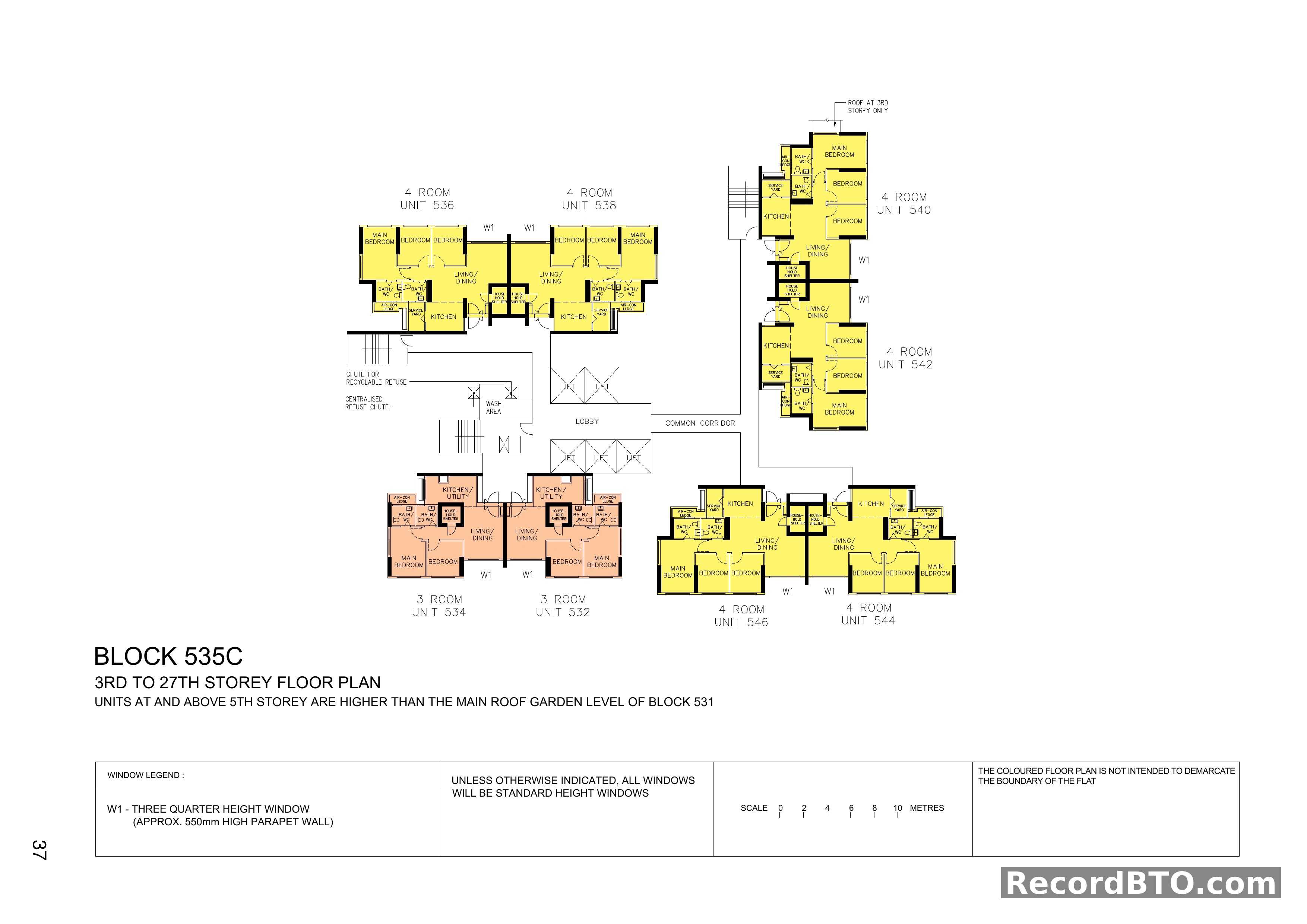

Block 535C: 3rd-27th Storey Floor Plan

Floor plan for Block 535C, covering levels 3 to 27. Units at and above the 5th storey are noted as being higher than the main roof garden level of Block 531. The floor layout includes eight units per floor: - Two 3-Room units (Unit 532, Unit 534) - Six 4-Room units (Unit 536, Unit 538, Unit 540, Unit 542, Unit 544, Unit 546) Each 3-Room unit features a Main Bedroom, one additional Bedroom, Living/Dining area, Kitchen/Utility, one Bath/WC, a Household Shelter, Service Yard, and Air-Con Ledge. Each 4-Room unit features a Main Bedroom, two additional Bedrooms, Living/Dining area, Kitchen, two Bath/WC, a Household Shelter, Service Yard, and Air-Con Ledge. Common facilities include a lobby, lifts, stairs, a common corridor, a centralised refuse chute, and a wash area. A window legend indicates 'W1' as a three-quarter height window (approx. 550mm high parapet wall), with other windows being standard height unless specified.

Block 535C: 28th Storey Floor Plan with 3- and 4-Room Units

28th storey floor plan for Block 535C. The floor features four residential units: - Two 4-Room units (Unit 536, Unit 538): Each includes a main bedroom, two additional bedrooms, living/dining area, kitchen, two bathrooms (bath/WC), household shelter, service yard, and air-con ledge. - Two 3-Room units (Unit 534, Unit 532): Each includes a main bedroom, one additional bedroom, living/dining area, kitchen/utility, two bathrooms (bath/WC), household shelter, service yard, and air-con ledge. Common facilities on this storey include a common corridor, a lobby with multiple lifts, a centralised refuse chute, and a wash area. External features depicted are a roof garden on the 28th storey (accessible from the 29th storey) and an inaccessible green roof. A window legend indicates 'W1' as a three-quarter height window (approx. 550mm high parapet wall). Units at and above the 5th storey are noted to be higher than the main roof garden level of Block 531. A scale bar is provided for measurements.

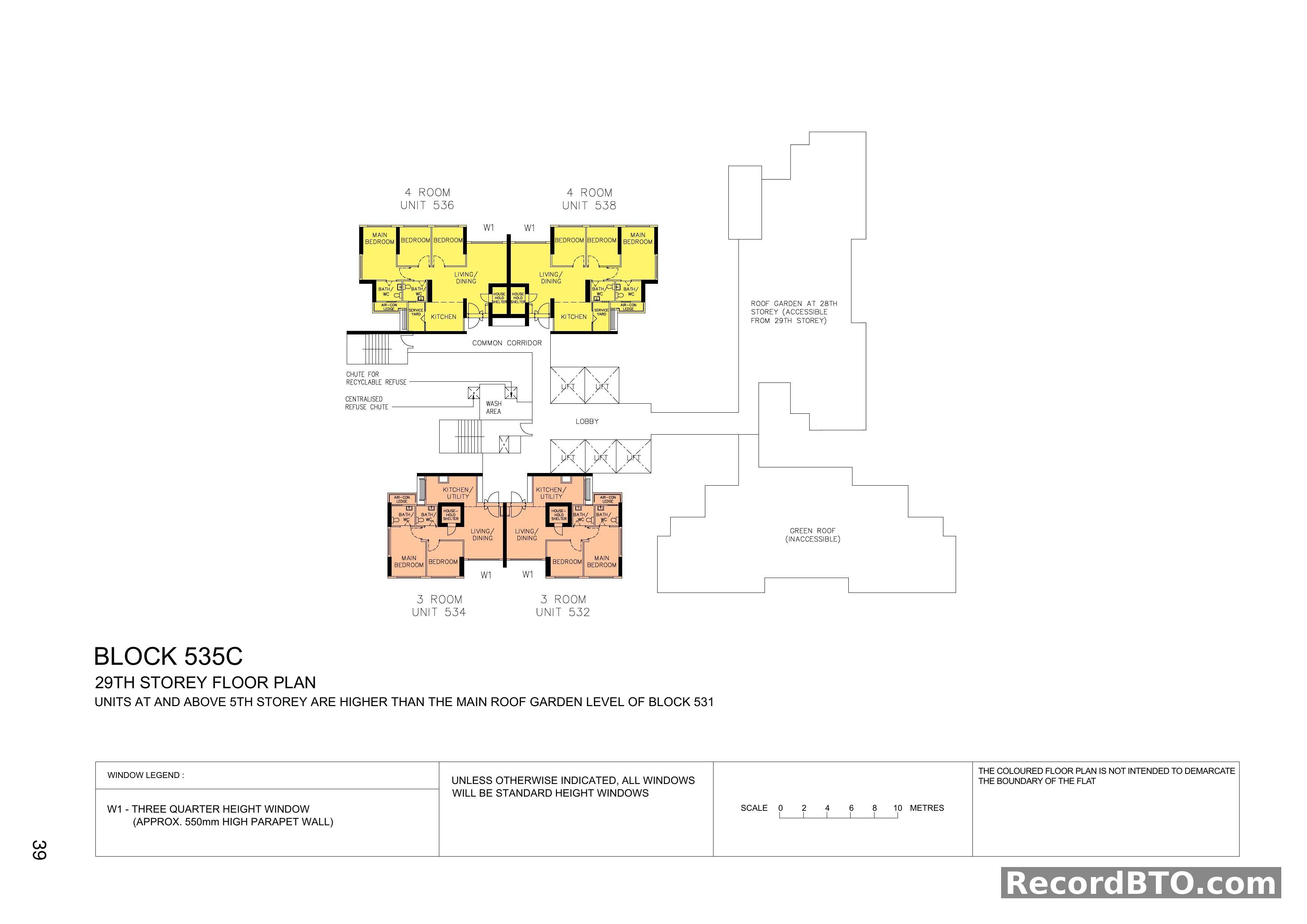

Block 535C: 29th Storey Floor Plan with 3- and 4-Room Units

29th storey floor plan for Block 535C. Unit types and numbers: - 4-Room units: 536 and 538. Each includes a main bedroom, two additional bedrooms, living/dining area, kitchen, two bathrooms (Bath/WC), household shelter, service yard, and air-con ledge. - 3-Room units: 534 and 532. Each includes a main bedroom, one additional bedroom, living/dining area, kitchen/utility, two bathrooms (Bath/WC), household shelter, and air-con ledge. Common facilities on this floor include a common corridor, lobby, wash area, and centralised refuse chute. A roof garden at the 28th storey is accessible from this 29th storey. An inaccessible green roof area is also shown. Units at and above the 5th storey are noted to be higher than the main roof garden level of Block 531. Windows marked 'W1' are three-quarter height (approx. 550mm high parapet wall); otherwise, windows are standard height.

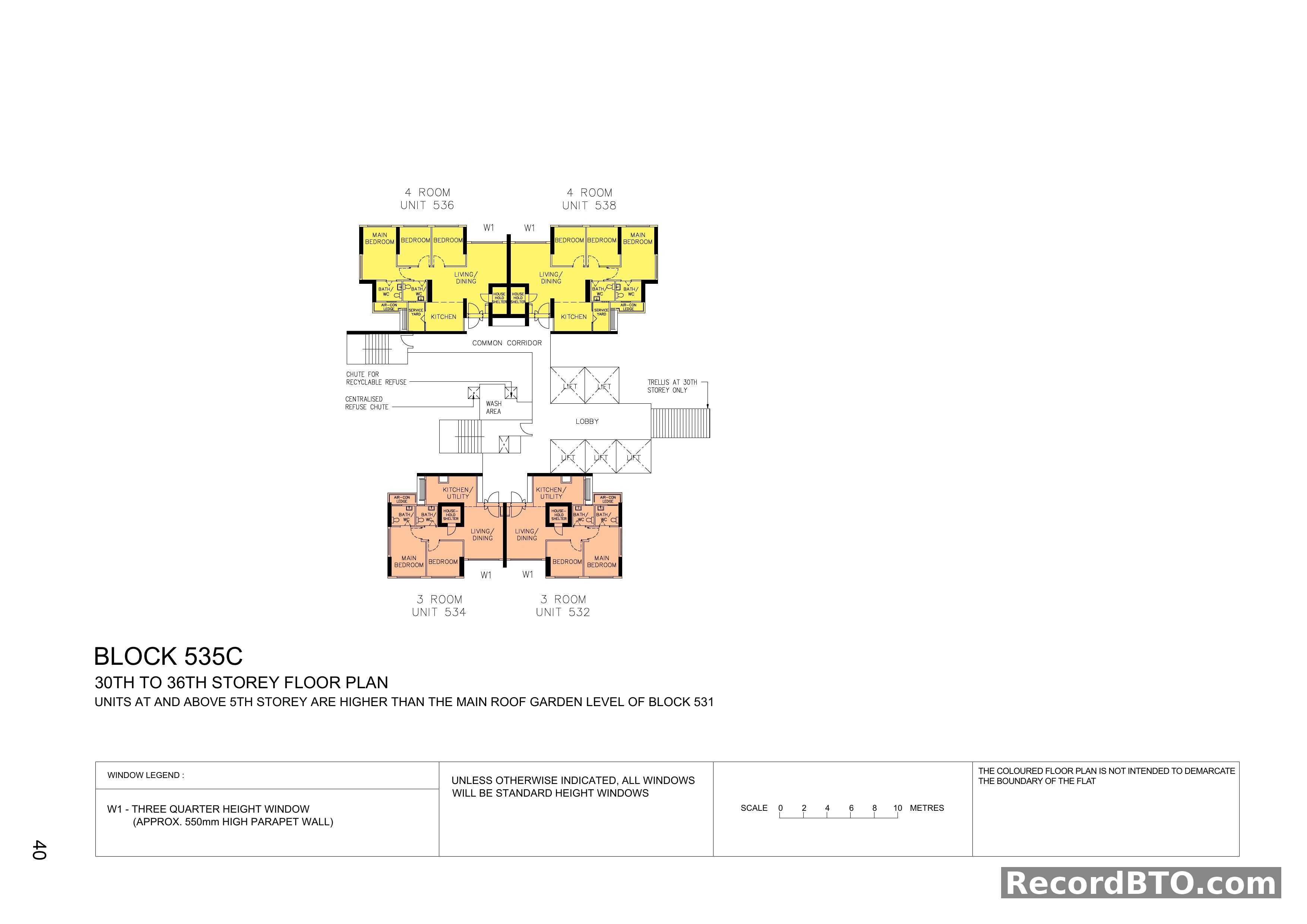

Block 535C: 30th-36th Storey Floor Plan

Floor plan for Block 535C, covering levels 30 through 36. Units at and above the 5th storey are noted as being higher than the main roof garden level of Block 531. Unit types and numbers shown: - 4-Room flats: Unit 536 and Unit 538 (each with 3 bedrooms, 2 bathrooms, living/dining, kitchen, household shelter, service yard, air-con ledge). - 3-Room flats: Unit 534 and Unit 532 (each with 2 bedrooms, 2 bathrooms, living/dining, kitchen/utility, household shelter, service yard, air-con ledge). Common facilities include a common corridor, lift lobby, staircase, wash area, and a centralised refuse chute. The floor plan indicates 'W1' as a three-quarter height window (approx. 550mm high parapet wall), with all other windows being standard height unless otherwise indicated. A scale bar is provided in metres.

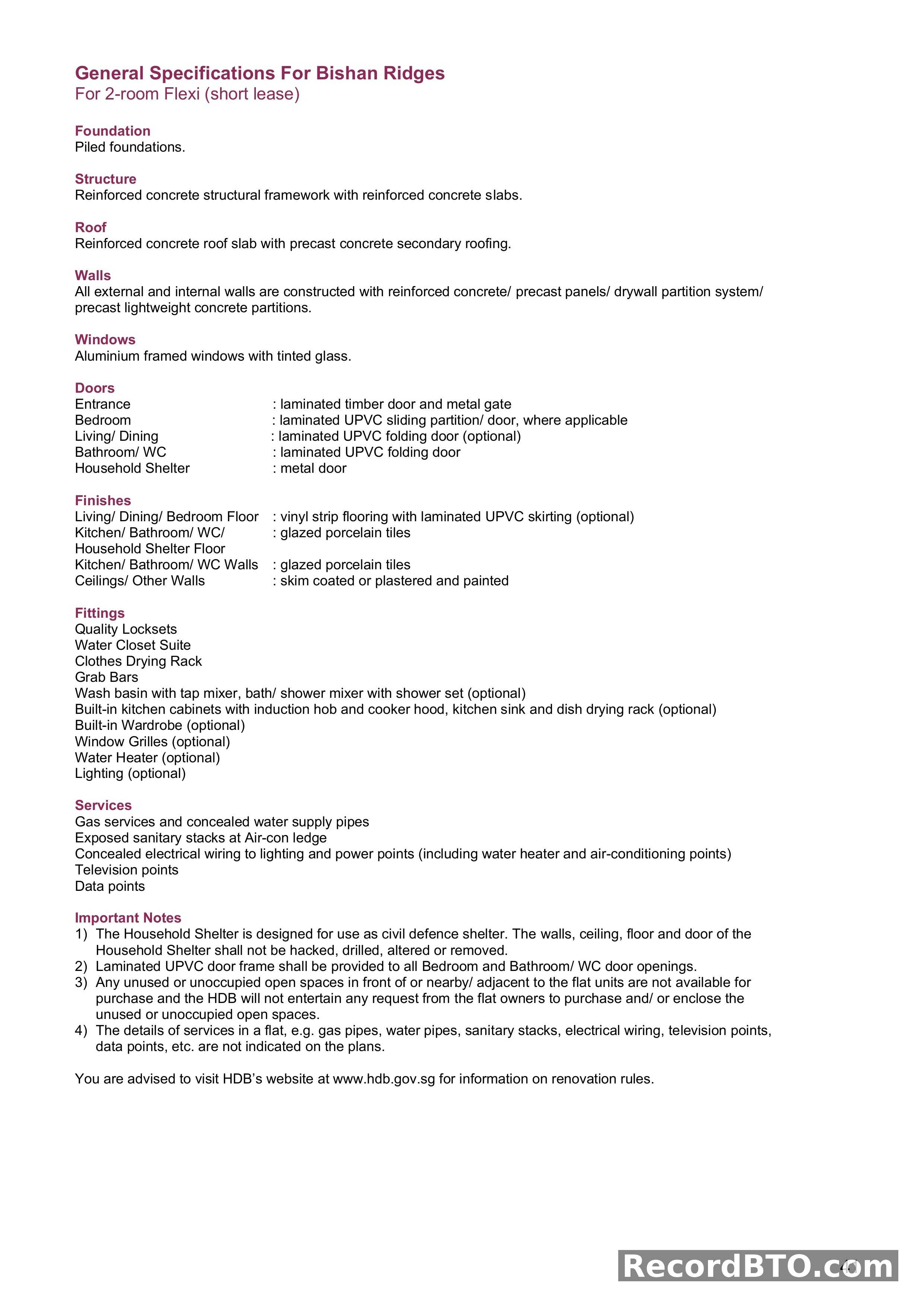

General Specifications for 2-Room Flexi (Short Lease) Units

General specifications for 2-room Flexi (short lease) units. **Construction & Structure:** - Foundation: Piled foundations. - Structure: Reinforced concrete structural framework with reinforced concrete slabs. - Roof: Reinforced concrete roof slab with precast concrete secondary roofing. - Walls: External and internal walls are reinforced concrete, precast panels, drywall partition system, or precast lightweight concrete partitions. - Windows: Aluminium framed with tinted glass. **Internal Features & Finishes:** - Doors: Laminated timber door and metal gate for entrance; laminated UPVC sliding partition/door for bedroom (where applicable); optional laminated UPVC folding door for living/dining and bathroom/WC; metal door for household shelter. - Floor Finishes: Vinyl strip flooring with optional laminated UPVC skirting for living/dining/bedroom; glazed porcelain tiles for kitchen/bathroom/WC/household shelter. - Wall Finishes: Glazed porcelain tiles for kitchen/bathroom/WC walls; skim coated or plastered and painted for ceilings/other walls. **Fittings & Services:** - Fittings: Quality locksets, water closet suite, clothes drying rack, grab bars, wash basin with tap mixer. Optional fittings include bath/shower mixer with shower set, built-in kitchen cabinets (induction hob, cooker hood, sink, dish drying rack), built-in wardrobe, window grilles, water heater, and lighting. - Services: Gas services, concealed water supply pipes, exposed sanitary stacks at air-con ledge, concealed electrical wiring (lighting, power, water heater, air-conditioning points), television points, and data points. **Important Notes:** - Household Shelter: Designed as a civil defence shelter; walls, ceiling, floor, and door must not be hacked, drilled, altered, or removed. - Door Frames: Laminated UPVC door frame provided for all bedroom and bathroom/WC door openings. - Open Spaces: Unused or unoccupied open spaces adjacent to units are not available for purchase or enclosure. - Plans: Details of services (gas, water, sanitary stacks, electrical wiring, TV, data points) are not indicated on the plans. - Renovation Rules: Advised to visit HDB's website for renovation rules.

General Specifications for 3- & 4-Room HDB BTO Flats

General specifications for 3-room and 4-room HDB BTO flats. **Construction:** - Foundation: Piled foundations. - Structure: Reinforced concrete structural framework and slabs. - Roof: Reinforced concrete roof slab with precast concrete secondary roofing. - Walls: Reinforced concrete, precast panels, drywall partition, or precast lightweight concrete. - Windows: Aluminium framed with tinted glass. **Doors:** - Entrance: Laminated timber door and metal gate. - Bedroom: Laminated UPVC door (optional). - Bathroom/WC: Laminated UPVC folding door (optional). - Household Shelter: Metal door. - Service Yard: Aluminium framed door with glass. **Finishes:** - Living/Dining Floor: Polished porcelain tiles with optional laminated UPVC skirting. - Bedroom Floor: Vinyl strip flooring with optional laminated UPVC skirting. - Wet Areas (Kitchen/Utility/Bathroom/WC/Household Shelter/Service Yard) Floors: Glazed porcelain tiles. - Wet Areas Walls: Glazed porcelain tiles with tile skirting. - Ceilings/Other Walls: Skim coated or plastered and painted. **Fittings:** - Quality locksets, water closet suite, clothes drying rack. - Wash basin with tap mixer, bath/shower mixer with shower set (optional). **Services:** - Gas services, concealed water supply pipes. - Exposed sanitary stacks (at Service Yard/Air-con ledge). - Concealed electrical wiring for lighting, power points (including water heater, air-conditioning). - Television and data points. **Important Notes:** - Household Shelter is for civil defence; not to be hacked, drilled, altered, or removed. - Laminated UPVC door frames provided for Bedroom and Bathroom/WC openings. - Unused/unoccupied open spaces are not available for purchase or enclosure by flat owners. - Details of services (e.g., pipes, wiring) are not indicated on floor plans.

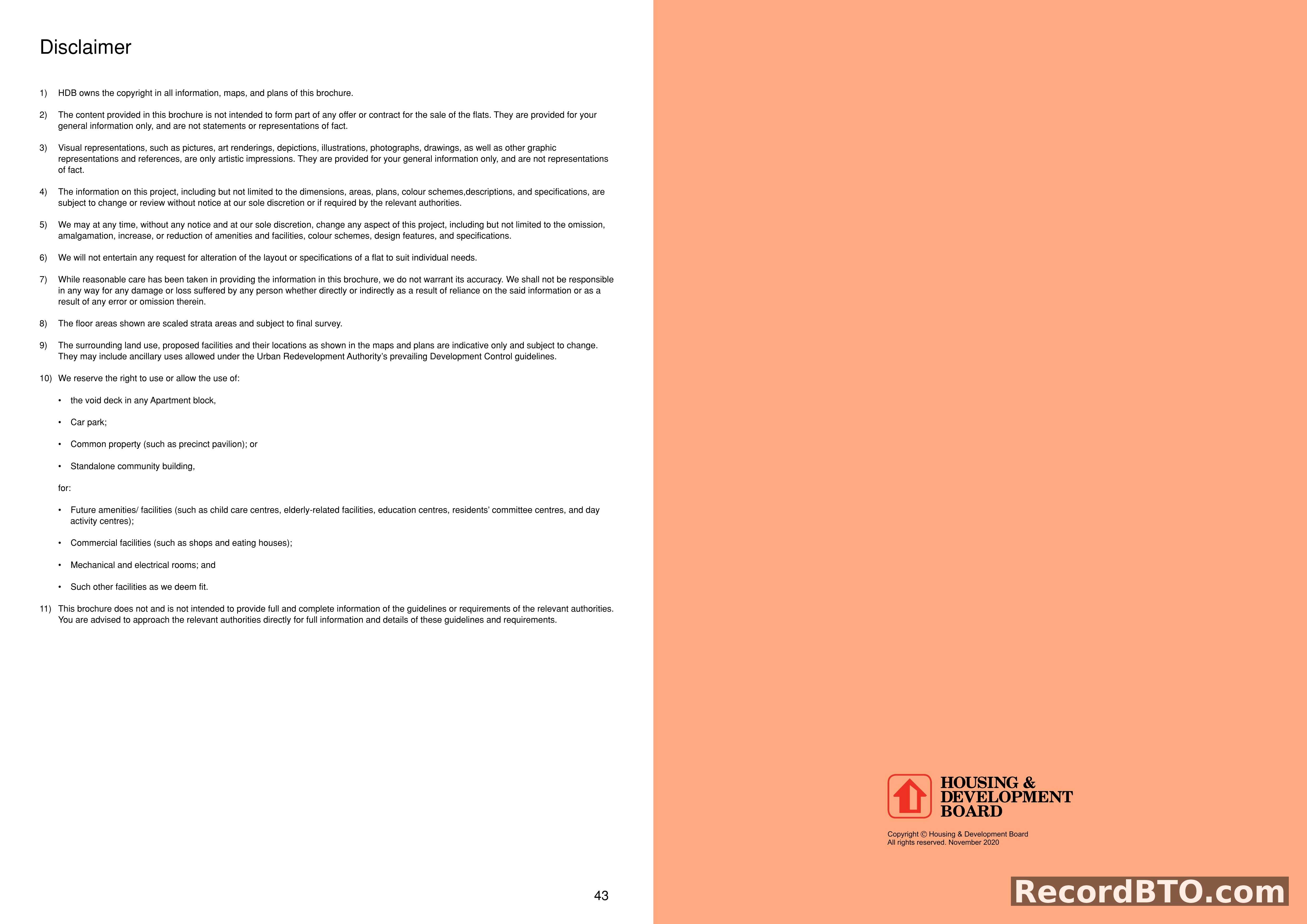

HDB BTO Brochure Disclaimer

This page presents the disclaimer for an HDB BTO property brochure. Key points include: - HDB holds copyright for all brochure content. - Information is for general guidance only, not an offer or contract, and visual representations are artistic impressions. - Project details, including dimensions, plans, and specifications, are subject to change without notice. - HDB does not entertain requests for flat layout alterations. - Accuracy of information is not warranted, and HDB is not liable for any loss from reliance on it. - Floor areas are scaled strata areas, subject to final survey. - Surrounding land use and proposed facilities are indicative and subject to change, including URA guidelines. - HDB reserves the right to use common areas (void decks, carparks, precinct pavilions, community buildings) for future amenities (childcare, elderly, education, RC, day activity centres), commercial facilities, and mechanical/electrical rooms. - The brochure does not provide full information; readers are advised to contact relevant authorities directly. The page is numbered 43 and includes the Housing & Development Board copyright information from November 2020.

Optional Component Scheme for 2-Room Flexi Flats

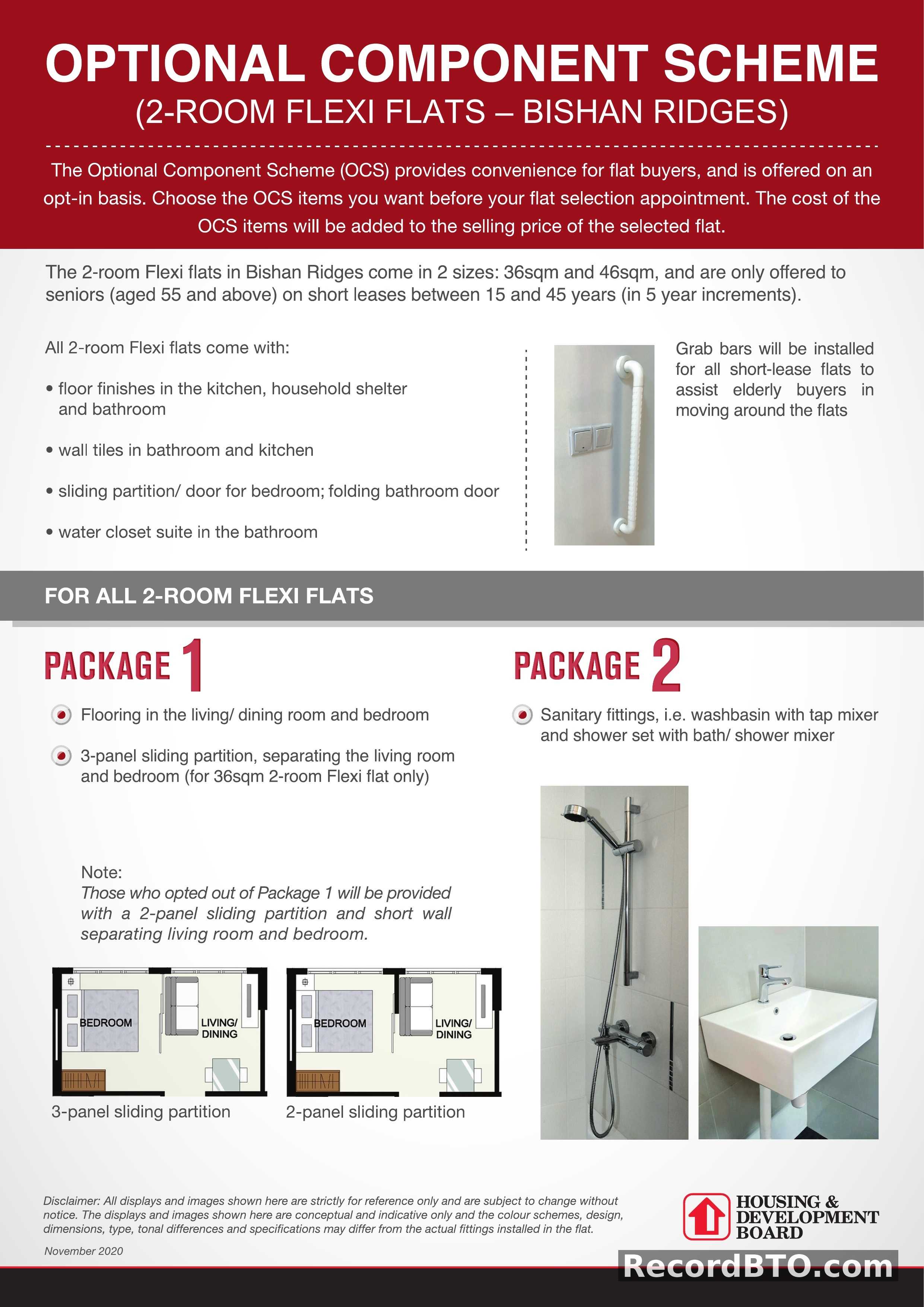

The Optional Component Scheme (OCS) for 2-Room Flexi flats in Bishan Ridges is detailed. These flats are available in two sizes: 36 sqm and 46 sqm, and are offered exclusively to seniors aged 55 and above on short leases between 15 and 45 years (in 5-year increments). All 2-room Flexi flats come with: - Floor finishes in the kitchen, household shelter, and bathroom. - Wall tiles in the bathroom and kitchen. - Sliding partition/door for the bedroom; folding bathroom door. - Water closet suite in the bathroom. - Grab bars installed for elderly buyers. Optional packages include: - **Package 1**: Flooring in the living/dining room and bedroom, and a 3-panel sliding partition for 36 sqm 2-room Flexi flats. Opting out of Package 1 provides a 2-panel sliding partition and short wall. - **Package 2**: Sanitary fittings, including a washbasin with tap mixer and a shower set with bath/shower mixer.

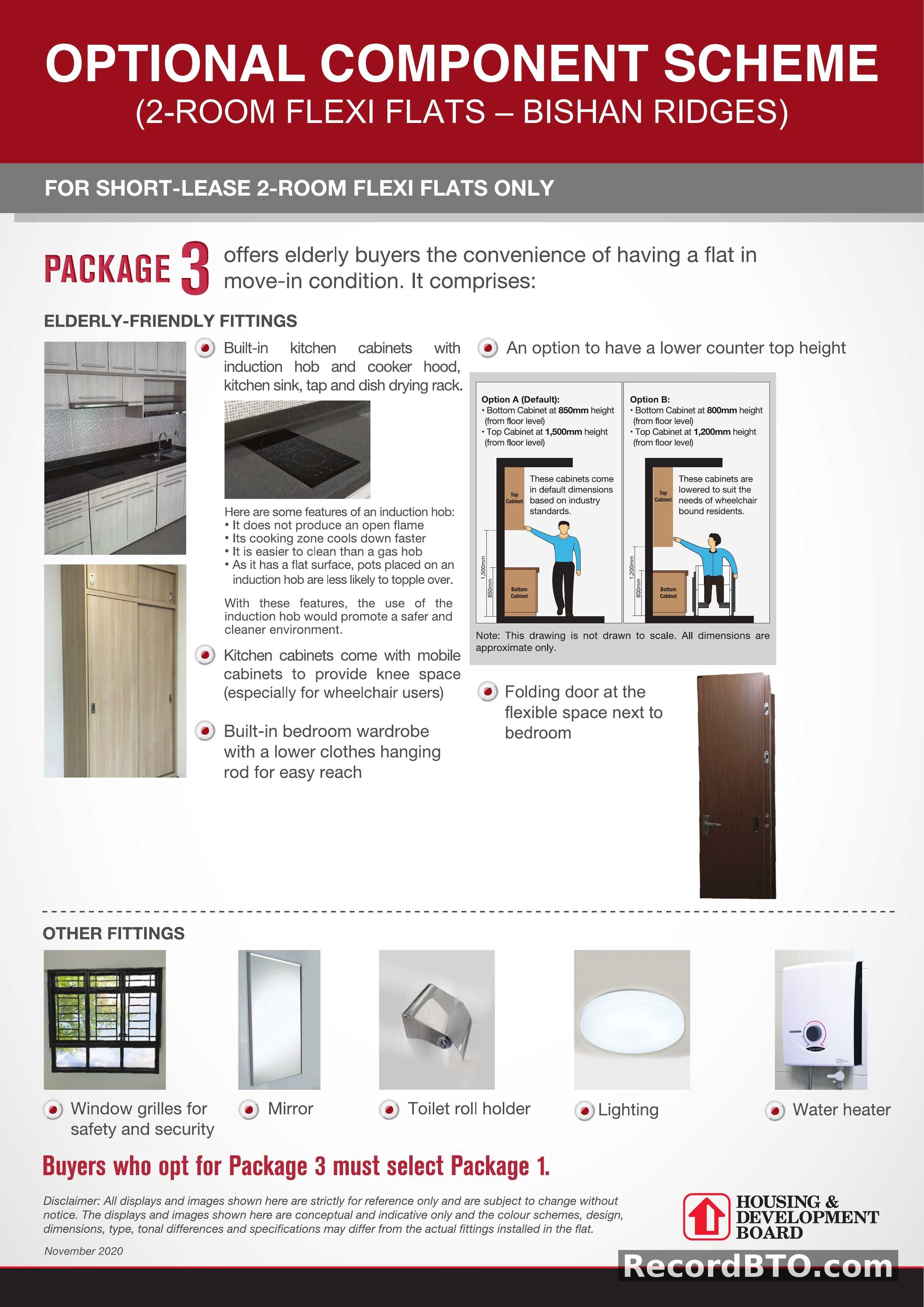

Optional Component Scheme: Package 3 Fittings for 2-Room Flexi Flats

Package 3 of the Optional Component Scheme for short-lease 2-Room Flexi Flats, targeting elderly buyers, offers move-in condition. Elderly-Friendly Fittings: - Built-in kitchen cabinets with induction hob, cooker hood, sink, tap, and dish drying rack. - Induction hob features: no open flame, faster cooling, easier cleaning, flat surface. - Kitchen counter height options: Default (bottom 850mm, top 1500mm) or lowered (bottom 800mm, top 1200mm) for wheelchair users. - Mobile kitchen cabinets for knee space. - Built-in bedroom wardrobe with lower clothes rod. - Folding door for flexible space next to bedroom. Other Fittings: - Window grilles. - Mirror. - Toilet roll holder. - Lighting. - Water heater. Note: Buyers selecting Package 3 must also select Package 1. Document dated November 2020.

Optional Component Scheme for 3- and 4-Room Flats

The Optional Component Scheme (OCS) is available for 3- and 4-room flats, offered on an opt-in basis, with costs added to the flat's selling price. This scheme is for the Bishan Ridges project. Flats come standard with: - Floor finishes in the kitchen, household shelter, service yard, and bathrooms. - Wall tiles in the bathrooms and kitchen. - A water closet suite in each bathroom. Optional items that can be installed include: - Floor finishes for the living/dining room and bedrooms. - Internal doors and sanitary fittings, specifically: - A wash basin with a tap mixer (two styles shown). - A shower set with a bath/shower mixer (handheld type shown). The brochure includes a disclaimer stating that displays and images are for reference only and subject to change, dated November 2020.

HDB BTO Project: Artistic Impression of Residential Blocks

Artistic impression of a high-rise residential development set against a natural landscape. The foreground features a calm river or canal bordered by extensive green spaces, including mature trees and grassy areas. A paved pathway runs along the riverbank, populated by several individuals, suggesting a recreational area. The development comprises multiple tall residential blocks with a modern architectural design. The building facades are characterized by a combination of white, dark brown, and golden-orange horizontal elements, creating a distinct visual pattern. Some blocks incorporate green rooftops or terraced gardens, indicating integrated natural elements. The scene is depicted under a clear blue sky with white clouds and a flock of birds, conveying a peaceful and integrated urban-natural environment. No specific block numbers, unit types, or floor plans are visible in this artistic rendering.

Artist's Impression of HDB BTO Development with Amenities

Artist's impression of a modern HDB BTO residential development, showcasing multiple high-rise apartment blocks with contemporary architectural designs and varying heights. The buildings feature facades primarily in brown and white, accented with yellow window frames. The central area is a large, landscaped communal space designed for residents. It includes a prominent children's playground with multiple zones, featuring various play equipment such as slides, climbing structures, and swings, set on colorful soft-fall surfacing (blue, orange, green). Extensive greenery, including mature trees, shrubs, and landscaped mounds, is integrated throughout the development. Paved walking paths wind through the green spaces, connecting different areas. Seating options, including benches and a sheltered rest point, are visible along the paths. The scene depicts residents of various ages utilizing the facilities for leisure and recreation.

Bishan Area Location and Amenities Map

Location map for the Bishan area, highlighting key amenities and transport links. Major transport infrastructure includes: - MRT Stations: Bishan MRT (North-South and Circle Lines), Marymount MRT (Circle Line), and Braddell MRT (North-South Line). - Expressways: Central Expressway (CTE) running north-south. - Main Roads: Marymount Road, Bishan Road, Ang Mo Kio Avenue 1, and Braddell Road. - Future Developments: North-South Corridor (under construction) and various future roads indicated by dashed lines. Notable amenities and landmarks shown: - Education: Catholic High School, Whitley Secondary School, Kuo Chuan Presbyterian Primary & Secondary, Raffles Institution (Sec & JC), Guangyang Primary & Secondary, Marymount Convent School, Raffles Girl's School, Beatty Secondary School, First Toa Payoh Primary School & MK@First Toa Payoh. - Green Spaces & Recreation: Bishan - Ang Mo Kio Park, Kallang River, ABC Waters, Bishan Sports Hall, Bishan Swimming Complex. - Commercial & Community: Bishan Town Centre, Bishan Bus Interchange, Library, CPF Building, Neighbourhood Centres. - Healthcare: Mount Alvernia Hospital, Thomson 800. - Religious Sites: Chinese Temple, Guide House Mosque, various Churches. The map includes a scale bar (0-500 meters) and a legend detailing symbols for MRT lines (existing and under construction), future roads, and under-construction projects.

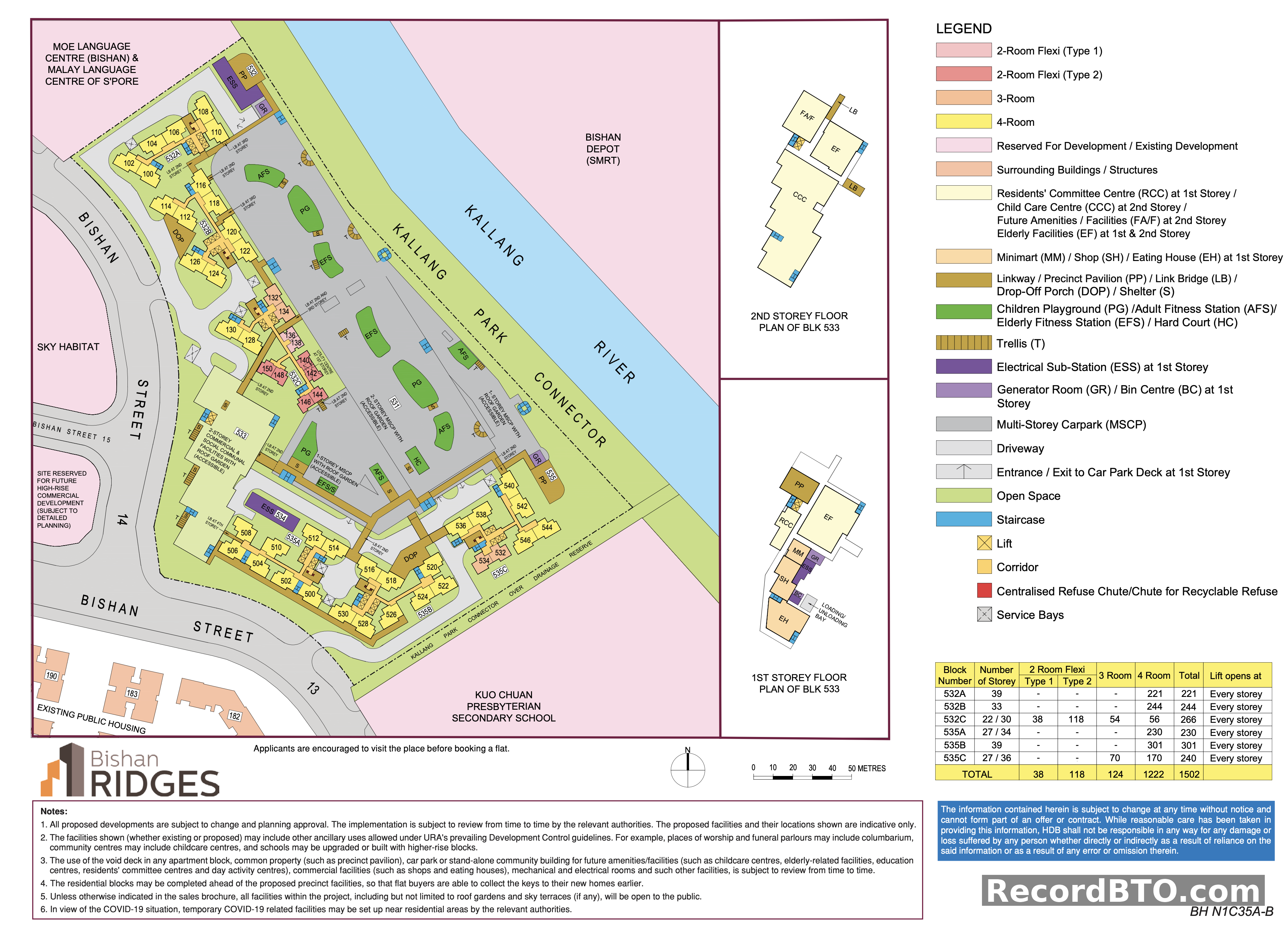

Site Plan with Block Layouts and Unit Summary

Master plan of a HDB BTO precinct featuring multiple residential blocks (531, 532A, 532B, 532C, 533, 534, 535A, 535B, 535C) alongside surrounding landmarks like Bishan Depot (SMRT), Kallang Park Connector, and Kallang River. The plan details various amenities including children's playgrounds, adult fitness stations, elderly fitness stations, hard courts, and linkways. Key facilities include: - Block 533: 2-storey commercial & social communal facilities with roof garden, housing a Minimart, Shop, Eating House, Residents' Committee Centre (RCC), Generator Room (GR), Electrical Sub-Station (ESS), Bin Centre (BC), and Elderly Facilities (EF) on the 1st storey; Child Care Centre (CCC), Future Amenities/Facilities (FA/F), and Elderly Facilities (EF) on the 2nd storey. - Blocks 531 & 533: Multi-Storey Carparks (MSCP). - Block 534: Electrical Sub-Station (ESS). - Block 535: Generator Room (GR) and Precinct Pavilion (PP). A summary table details residential blocks and unit counts: - Block 532A: 39 storeys, 221 4-Room units. - Block 532B: 33 storeys, 244 4-Room units. - Block 532C: 22/30 storeys, 38 2-Room Flexi Type 1, 118 2-Room Flexi Type 2, 54 3-Room, 56 4-Room units (Total 266). - Block 535A: 27/34 storeys, 230 4-Room units. - Block 535B: 39 storeys, 301 4-Room units. - Block 535C: 27/36 storeys, 70 3-Room, 170 4-Room units (Total 240). All lifts open at every storey. The total number of units across these blocks is 1502.

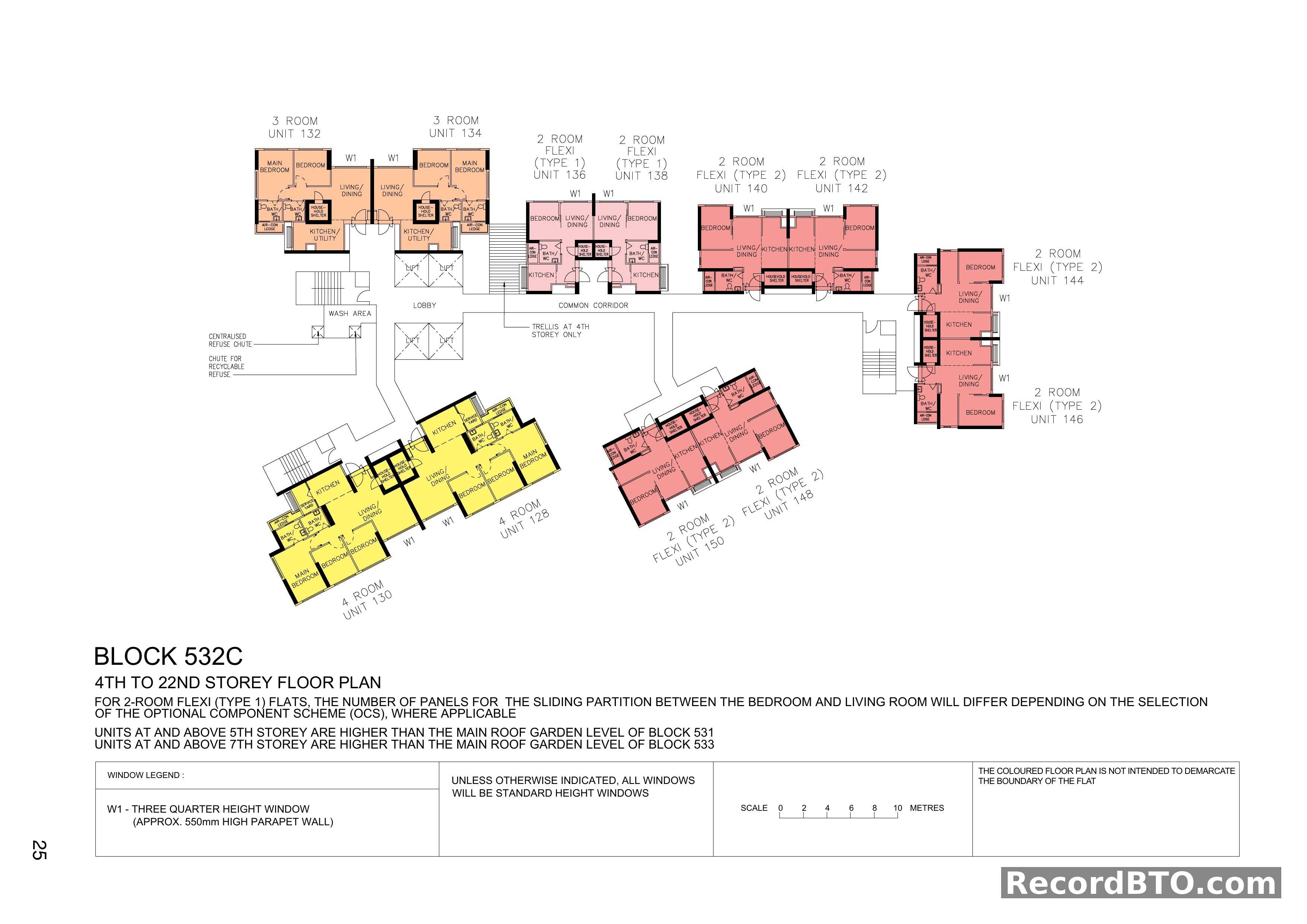

Block 532C: 4th-22nd Storey Floor Plan

Floor plan for Block 532C, applicable from the 4th to 22nd storey. Unit types available on this floor: - 3-Room flats: Units 132, 134 - 2-Room Flexi (Type 1) flats: Units 136, 138 - 2-Room Flexi (Type 2) flats: Units 140, 142, 144, 146, 148, 150 - 4-Room flats: Units 128, 130 Common facilities include a central lobby with lifts, a common corridor, a wash area, and centralised refuse chutes (general and recyclable). A trellis is indicated at the 4th storey only. Units at and above the 5th storey are higher than the main roof garden level of Block 531. Units at and above the 7th storey are higher than the main roof garden level of Block 533. W1 denotes a three-quarter height window (approx. 550mm high parapet wall). Unless otherwise indicated, all windows are standard height.
