Kallang Horizon

HDB BTO Sales Launch Announcement Cover

Cover page for the Kallang Horizon HDB BTO project. The brochure announces HDB's Sales Launch for November 2022. The visual features a modern residential development along a river, with multiple high-rise apartment blocks. A building with the 'Kallang Horizon' name and the HDB logo is visible, suggesting a commercial or community facility. An elevated structure, possibly an MRT track or highway, runs along the right side of the image. Two individuals are prominently featured in the foreground, smiling and facing the viewer. The image aims to convey a vibrant and modern living environment.

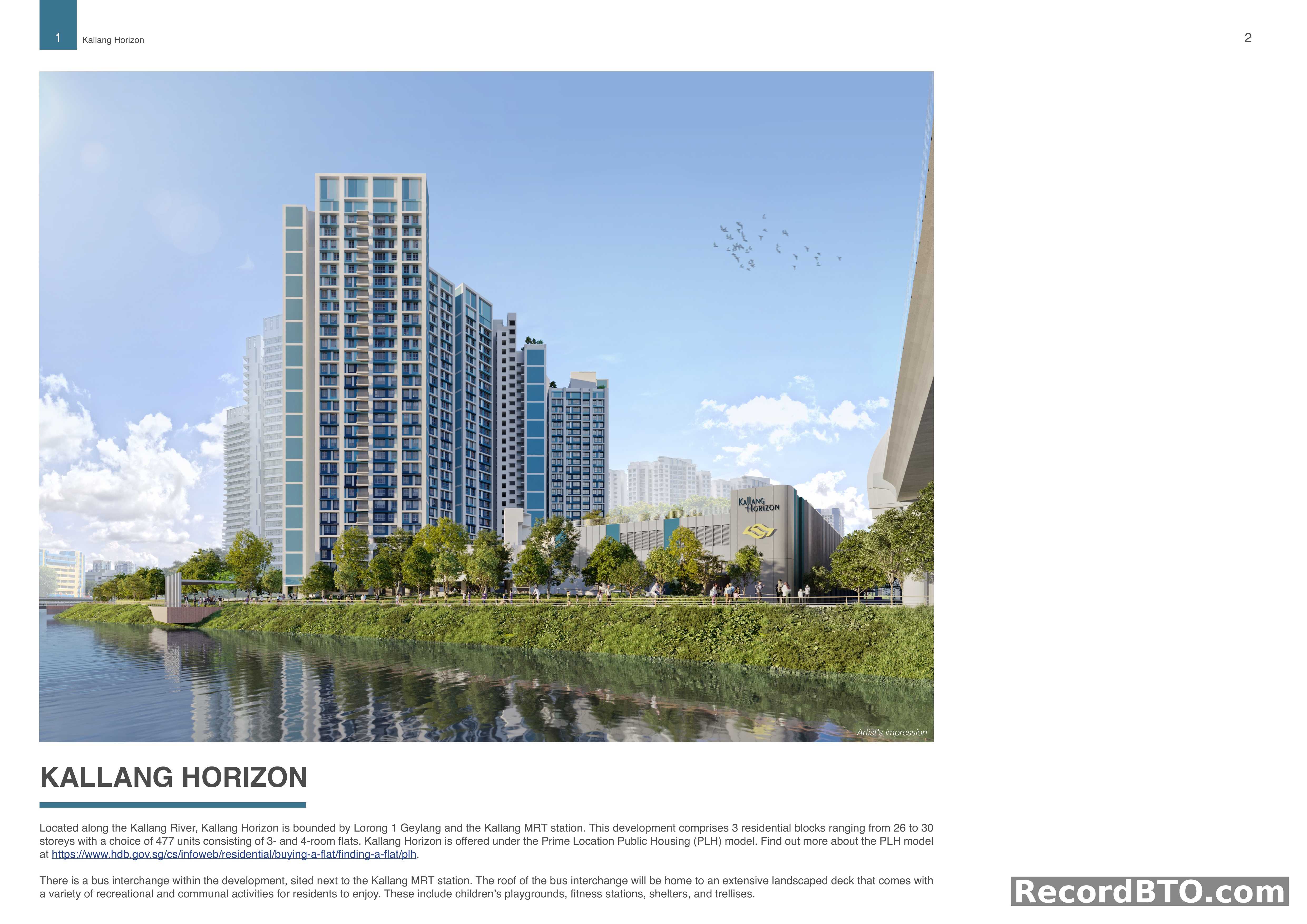

Artist's Impression & Project Overview for HDB BTO Development

Artist's impression and overview for a HDB BTO development. The development, Kallang Horizon, is located along the Kallang River, bounded by Lorong 1 Geylang and the Kallang MRT station. It comprises 3 residential blocks, ranging from 26 to 30 storeys, offering a total of 477 units. Unit types available are 3-room and 4-room flats. The project is offered under the Prime Location Public Housing (PLH) model. Amenities include a bus interchange within the development, situated next to the Kallang MRT station. The roof of the bus interchange will feature an extensive landscaped deck with children's playgrounds, fitness stations, shelters, and trellises.

Artist's Impression: Community Playground & Amenities

Artist's impression of a community playground and surrounding amenities within the Kallang Horizon development. The image features a vibrant children's play area with a yellow geometric climbing structure, an A-frame slide, and interactive play panels on a multi-colored soft-fall surface. Residential blocks with blue and white exteriors are visible in the background, alongside mature trees and landscaped areas. Key amenities mentioned in the accompanying text: - Precinct pavilion with an exercise deck on its roof, oriented towards Kallang River for views. - Roof gardens on two residential blocks, offering scenic river views. - Childcare centre. - Residents' network centre. - Residents will be served by the existing Multi-Storey Car Park at Block 8. All facilities within the development are stated to be accessible to the public.

General Important Notes for HDB BTO Projects

General important notes regarding HDB BTO projects. HDB precincts are designed to meet evolving community needs, incorporating future amenities and facilities. These include childcare centers, elderly-related facilities, education centers, residents' network centers, day activity centers, commercial facilities (shops, eating houses), and mechanical/electrical rooms. These spaces may be located in void decks, common property, car parks, or dedicated community buildings. Housing projects may be situated near sources of noise such as roads, railways, airbases, or land designated for non-residential purposes, which could result in higher noise levels for residents. Information provided on surrounding land use and proposed facilities is indicative, based on current planning intent, and is subject to change over time.

Kallang/Whampoa Area Location Map with MRT and Amenities

Location map for the Kallang/Whampoa area, highlighting the 'Kallang Horizon' project site in yellow, situated near Kallang MRT Station and the Kallang River. The map details surrounding infrastructure and amenities, including: - **MRT Stations:** Boon Keng, Bendemeer, Geylang Bahru, Kallang, Lavender, and Stadium MRT Stations are marked. - **Roads & Expressways:** Major roads like Kallang Road, Geylang Bahru, Serangoon Road, and expressways such as Pan Island Expressway (PIE) and Kallang-Paya Lebar Expressway (KPE) are shown. - **Water Bodies:** Kallang River, Pelton Canal, and Marina Reservoir are prominent. - **Community Facilities:** Neighbourhood Centres, Community Clubs (Kallang, Geylang West, Jalan Besar), schools (Bendemeer Primary), and religious sites (Sikh Temple, Chinese Temple, Church, Mosque) are indicated. - **Recreational Areas:** Whampoa Park Connector, Kallang Park Connector, Kallang Riverside Park, Singapore Sports Hub, and Leisure Park Kallang are visible. A scale bar indicates distances up to 500 metres. Notes at the bottom state that all information is indicative and subject to change.

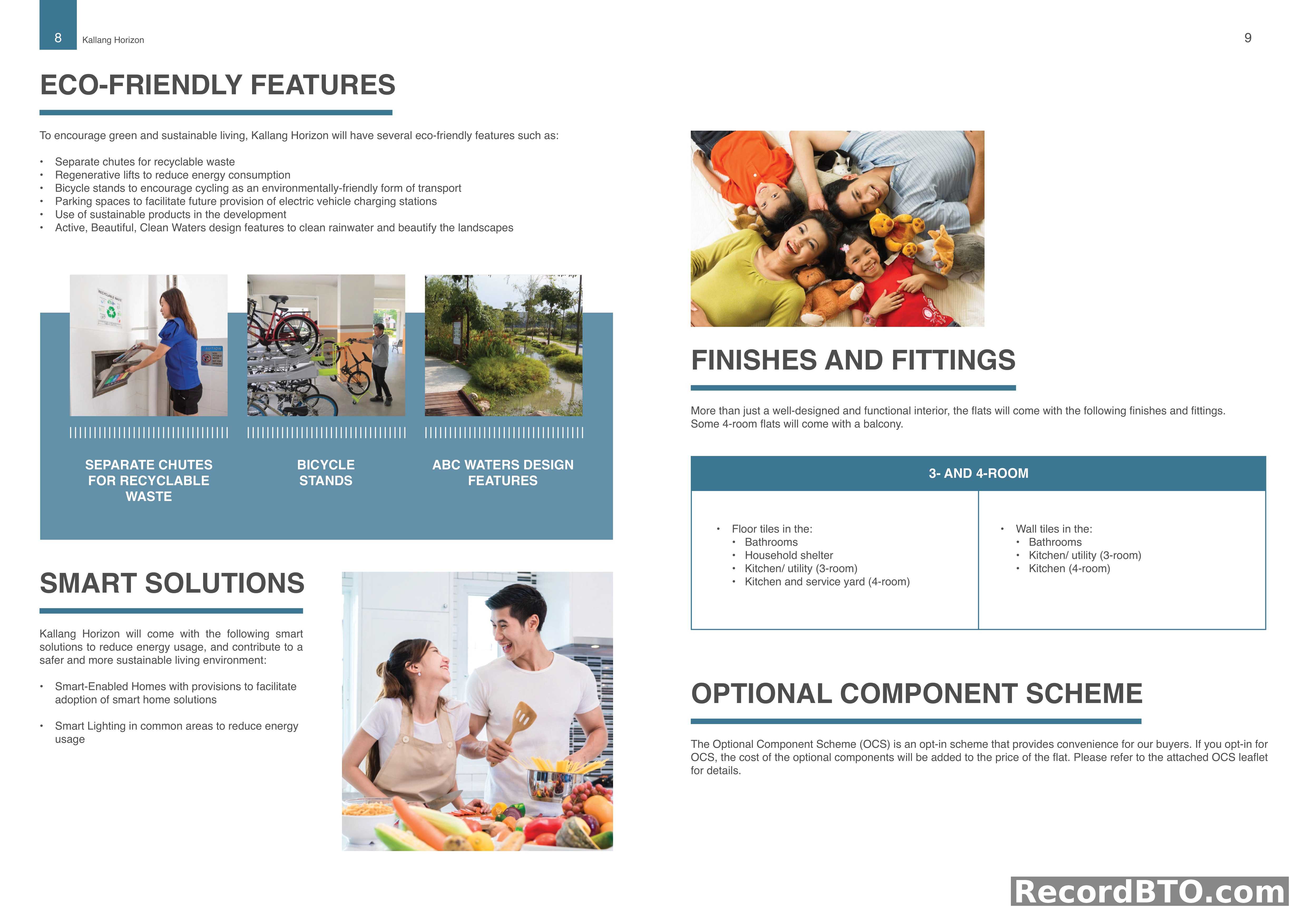

Eco-Friendly Features, Smart Solutions, and Finishes

This brochure page details the eco-friendly features, smart solutions, and standard finishes/fittings for the Kallang Horizon HDB BTO project. **Eco-Friendly Features:** - Separate chutes for recyclable waste - Regenerative lifts for energy reduction - Bicycle stands for environmentally-friendly transport - Parking spaces for future electric vehicle charging stations - Use of sustainable products - Active, Beautiful, Clean Waters (ABC Waters) design for rainwater management and landscaping **Finishes and Fittings (for 3- and 4-Room flats):** - Floor tiles in: Bathrooms, Household shelter, Kitchen/utility (3-room), Kitchen and service yard (4-room) - Wall tiles in: Bathrooms, Kitchen/utility (3-room), Kitchen (4-room) - Some 4-room flats will include a balcony. **Smart Solutions:** - Smart-Enabled Homes with provisions for smart home solutions - Smart Lighting in common areas to reduce energy usage **Optional Component Scheme (OCS):** - An opt-in scheme where the cost of selected components is added to the flat price. Buyers are advised to refer to an attached OCS leaflet for details.

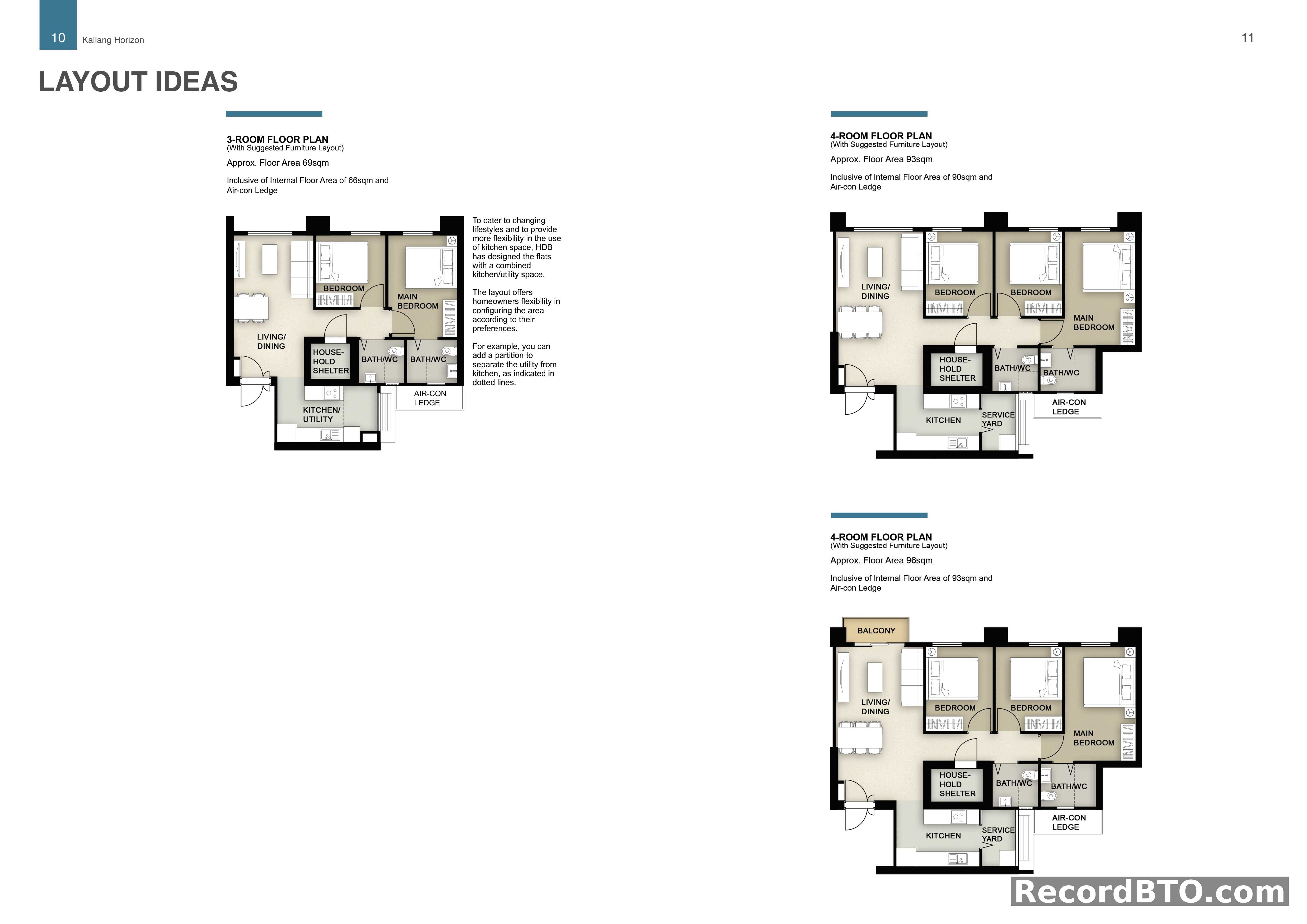

HDB BTO Layout Ideas: 3-Room and 4-Room Floor Plans

Detailed layout ideas for HDB BTO units, featuring three distinct floor plans with suggested furniture arrangements. The 3-Room floor plan has an approximate floor area of 69 sqm (66 sqm internal) and includes: - Living/Dining area - Two bedrooms (one main bedroom) - Two bathrooms - Household shelter - Flexible combined Kitchen/Utility space (with option to add partition) - Air-con ledge Two variations of the 4-Room floor plan are presented: 1. **Standard 4-Room:** Approx. 93 sqm (90 sqm internal), featuring Living/Dining, three bedrooms (one main), two bathrooms, household shelter, kitchen, service yard, and air-con ledge. 2. **4-Room with Balcony:** Approx. 96 sqm (93 sqm internal), similar to the standard 4-Room but includes an additional balcony accessible from the living area. All plans show essential areas like household shelter, kitchen, and bathroom facilities.

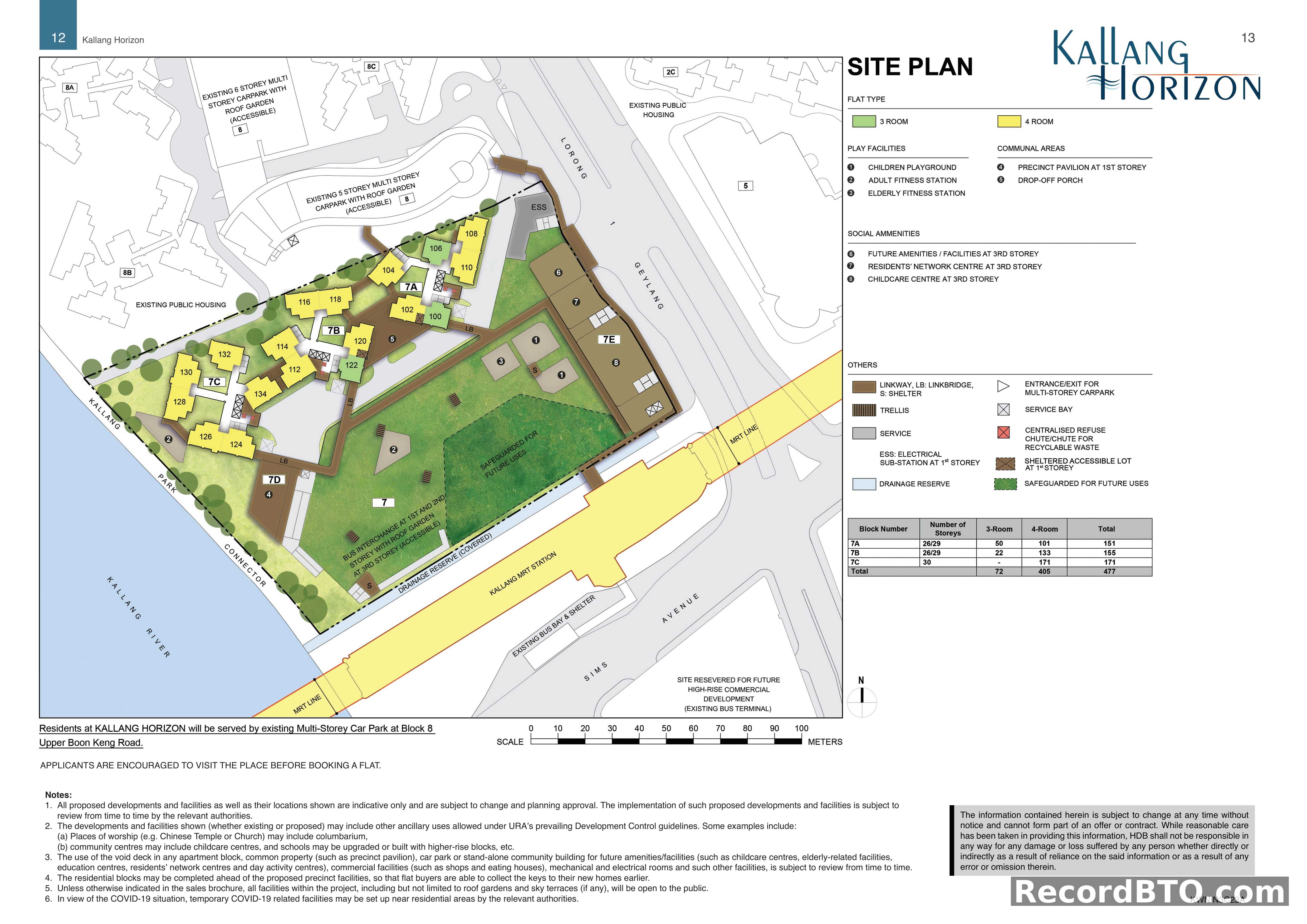

Kallang Horizon Site Plan with Block Details and Flat Mix

Site plan for the Kallang Horizon HDB BTO project, detailing residential blocks, amenities, and surrounding infrastructure. The project comprises residential blocks 7A, 7B, 7C, 7D, and 7E. Residential block details and unit mix: - Block 7A: 26/29 storeys, 50 x 3-Room, 101 x 4-Room (Total 151 units) - Block 7B: 26/29 storeys, 22 x 3-Room, 133 x 4-Room (Total 155 units) - Block 7C: 30 storeys, 171 x 4-Room (Total 171 units) The project offers a total of 72 x 3-Room and 405 x 4-Room units, summing to 477 units. Key amenities include: Children Playground (1), Adult Fitness Station (2), Elderly Fitness Station (3), Precinct Pavilion (4), and Drop-off Porch (5). Social amenities located at the 3rd storey are Future Amenities/Facilities (6), Residents' Network Centre (7), and a Childcare Centre (8). The site is situated adjacent to the Kallang River and Park Connector, with Lorong Geylang to the north and Sims Avenue to the south. Kallang MRT Station and an existing bus terminal are nearby. Residents will be served by an existing Multi-Storey Car Park at Block 8, Upper Boon Keng Road. The plan includes a scale bar indicating distances up to 100 meters.

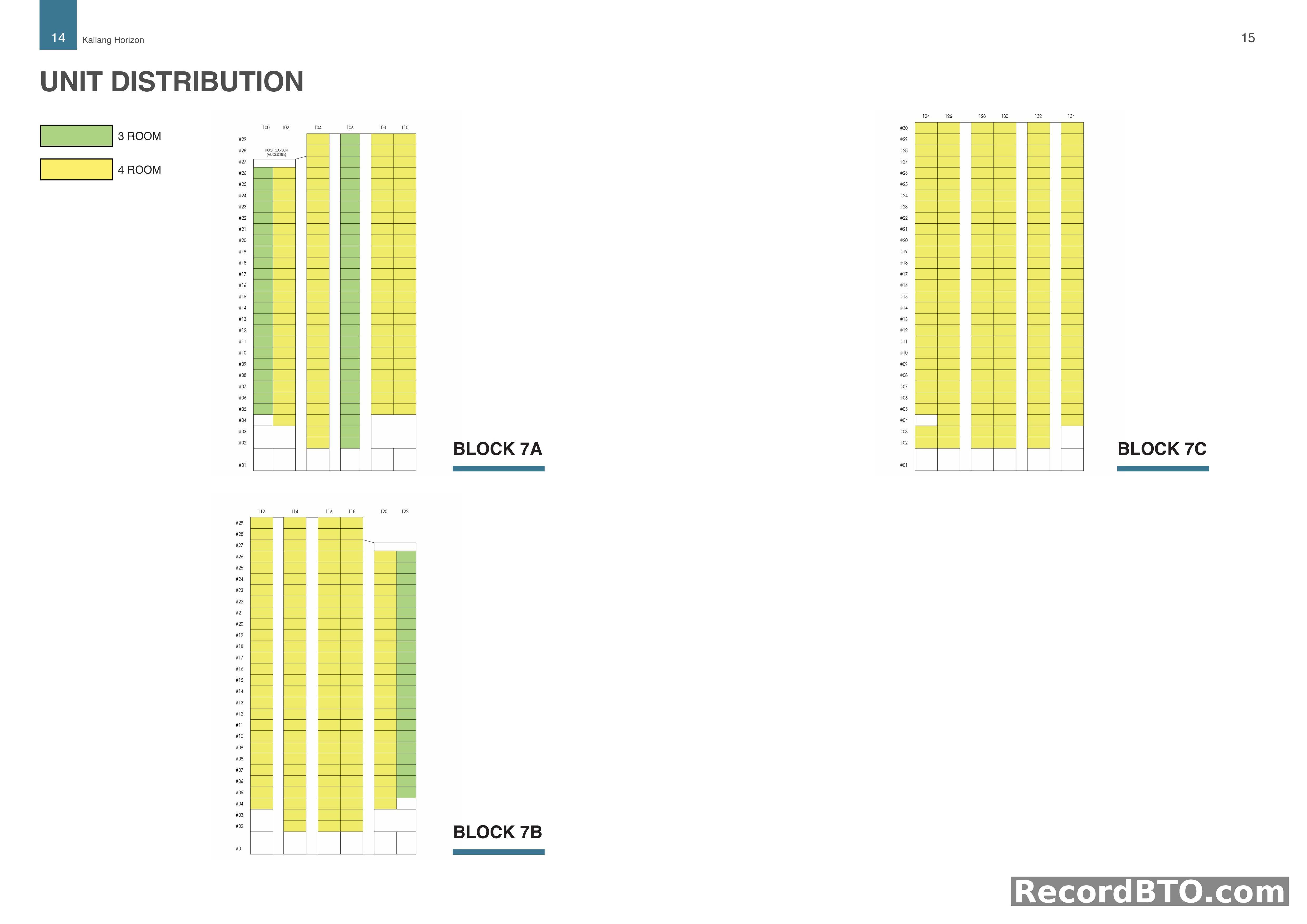

Unit Distribution: Blocks 7A, 7B, 7C Floor-by-Floor Breakdown

Unit distribution for HDB BTO Blocks 7A, 7B, and 7C, showing the allocation of 3-Room and 4-Room flats across different floor levels. Block 7A: - Total 30 storeys (#01 to #30). - Unit types: 3-Room (Units 104, 106) and 4-Room (Units 100, 102, 108, 110). - All residential units start from the 2nd storey (#02). - Features an accessible roof garden on the 29th storey (#29) for stacks 104 and 106. Block 7B: - Total 29 storeys (#01 to #29). - Unit types: 3-Room (Unit 122) and 4-Room (Units 112, 114, 116, 118, 120). - All residential units start from the 2nd storey (#02). Block 7C: - Total 30 storeys (#01 to #30). - Unit types: All 4-Room flats (Units 124, 126, 128, 130, 132, 134). - All residential units start from the 2nd storey (#02).

Block 7A: 2nd Storey Floor Plan

2nd storey floor plan for Block 7A. Unit types and layouts: - 4-Room Unit 104: Features a Main Bedroom, two additional Bedrooms, Living/Dining area, Kitchen, Service Yard, Household Shelter, two Bath/WCs, and an Air-con Ledge. - 3-Room Unit 106: Features a Main Bedroom, one additional Bedroom, Living/Dining area, Kitchen/Utility, Household Shelter, two Bath/WCs, and an Air-con Ledge. Common facilities include a common corridor, lobby, three lifts, stairs, a wash area, a centralised refuse chute, and a chute for recyclable refuse. The plan indicates 'ROOF AT 2ND STOREY ONLY' for certain perimeter areas and 'VOID' spaces. Window legend defines 'W1' as a three quarter height window (approx. 500mm high parapet wall); otherwise, windows are standard height. Units at and above 7th storey are higher than Block 7; units at and above 8th storey are higher than Block 7E; units at and above 9th storey are higher than Block 8.

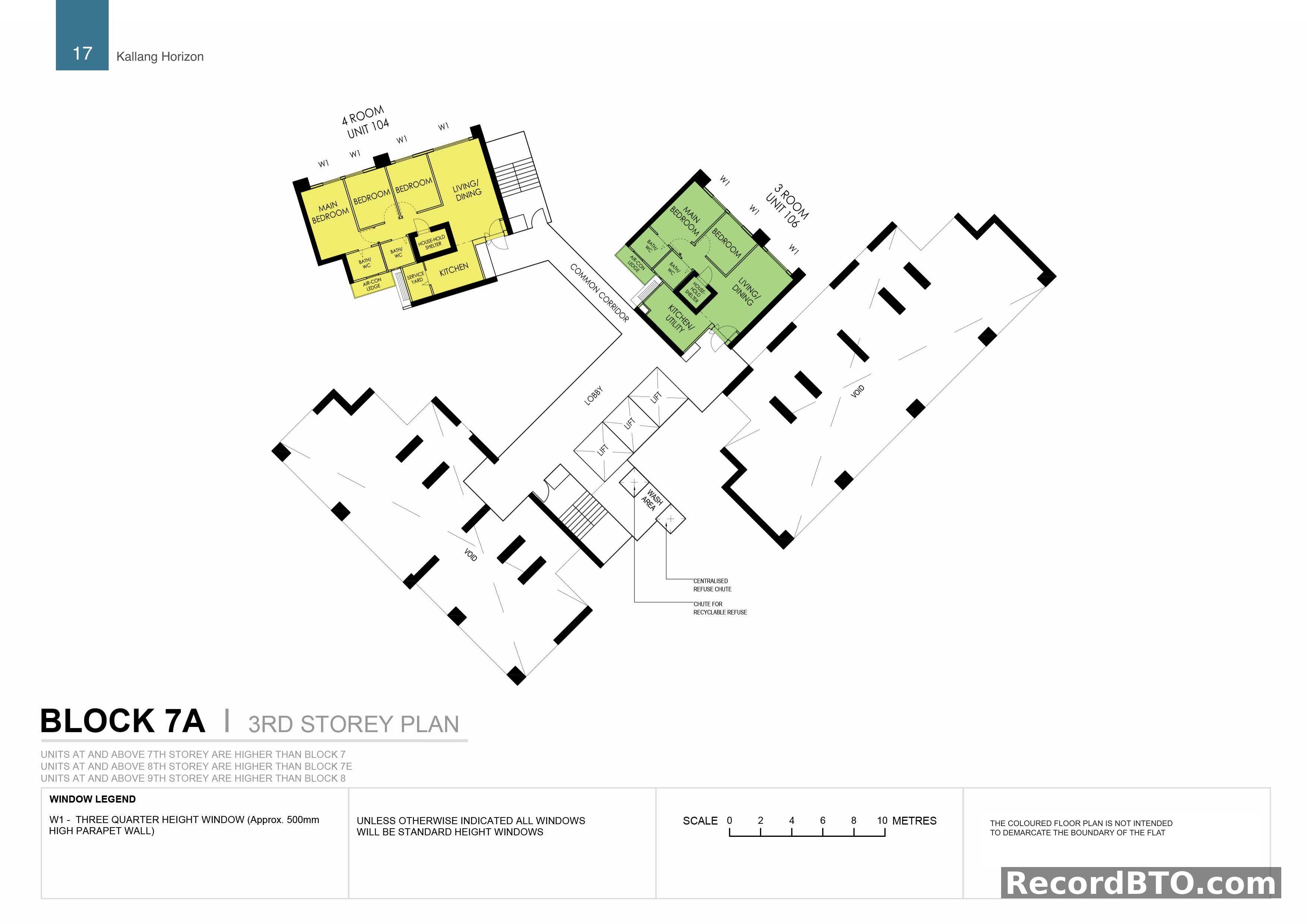

Block 7A: 3rd Storey Floor Plan

Floor plan for Block 7A, 3rd storey, within the Kallang Horizon development. Two unit types are detailed: - 4-Room Unit 104 (yellow): Features a main bedroom, two additional bedrooms, living/dining area, kitchen, service yard, two bathrooms (Bath/WC), and a household shelter. - 3-Room Unit 106 (green): Includes a main bedroom, one additional bedroom, living/dining area, kitchen/utility, two bathrooms (Bath/WC), and a household shelter. Common facilities on this floor include a lobby, three lifts, a staircase, a wash area, a centralised refuse chute, and a chute for recyclable refuse. Window specifications: "W1" denotes a three-quarter height window (approx. 500mm high parapet wall); all other windows are standard height unless indicated. Notes on building height: Units at and above the 7th storey are higher than Block 7. Units at and above the 8th storey are higher than Block 7E. Units at and above the 9th storey are higher than Block 8. The colored floor plan is not intended to demarcate the exact boundary of the flat.

Block 7A: 4th Storey Floor Plan

4th storey floor plan for Block 7A, featuring three residential units and common facilities. Unit types and layouts: - 4-Room (Unit 102, Unit 104): Comprises a main bedroom, two additional bedrooms, living/dining area, kitchen, household shelter, two bathrooms/WCs, service yard, and air-con ledge. - 3-Room (Unit 106): Includes a main bedroom, one additional bedroom, living/dining area, kitchen/utility, household shelter, two bathrooms/WCs, and air-con ledge. Common facilities include a central lobby with two lifts, a staircase, a wash area, a centralised refuse chute, and a chute for recyclable refuse. A common corridor connects the units. A link bridge connects this level to the 3rd storey of Block 7. Notes indicate that units at and above the 7th storey are higher than Block 7, units at and above the 8th storey are higher than Block 7E, and units at and above the 9th storey are higher than Block 8. Windows marked W1 are three-quarter height (approx. 500mm high parapet wall), while others are standard height. The scale bar ranges from 0 to 10 metres.

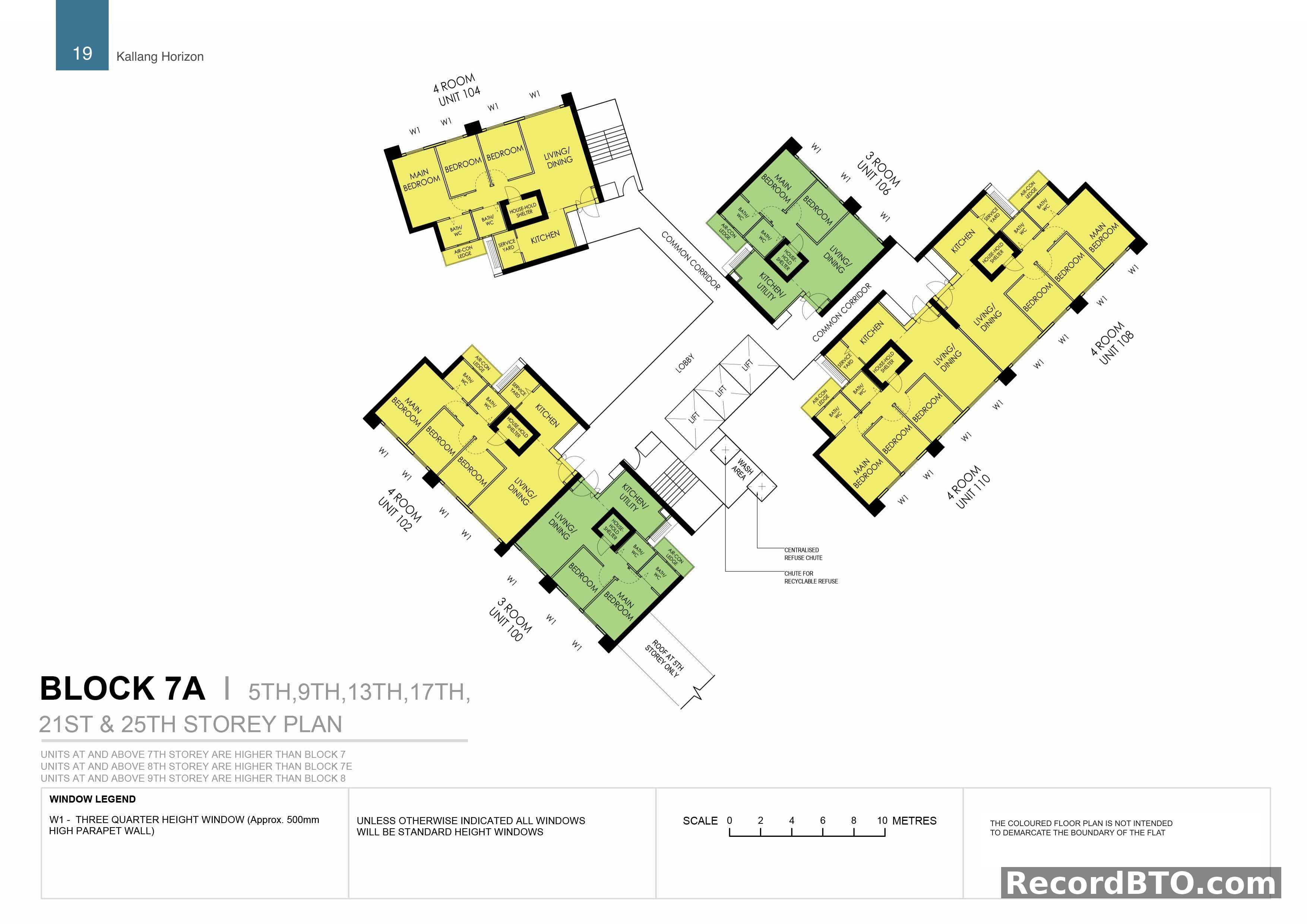

Block 7A: 5th, 9th, 13th, 17th, 21st & 25th Storey Floor Plans

Floor plan for Block 7A, applicable to the 5th, 9th, 13th, 17th, 21st, and 25th storeys. The floor features six units: - Two 3-Room units (100, 106) with kitchen/utility. - Four 4-Room units (102, 104, 108, 110) with kitchen. All units include a main bedroom, additional bedrooms, living/dining area, household shelter, service yard, air-con ledge, and two bathrooms (bath/WC). The central core provides access to three lifts, stairs, a wash area, and centralised refuse chutes. A window legend indicates W1 as a three-quarter height window (approx. 500mm high parapet wall), with other windows being standard height. Units at and above the 7th, 8th, and 9th storeys are noted to be higher than specific adjacent blocks.

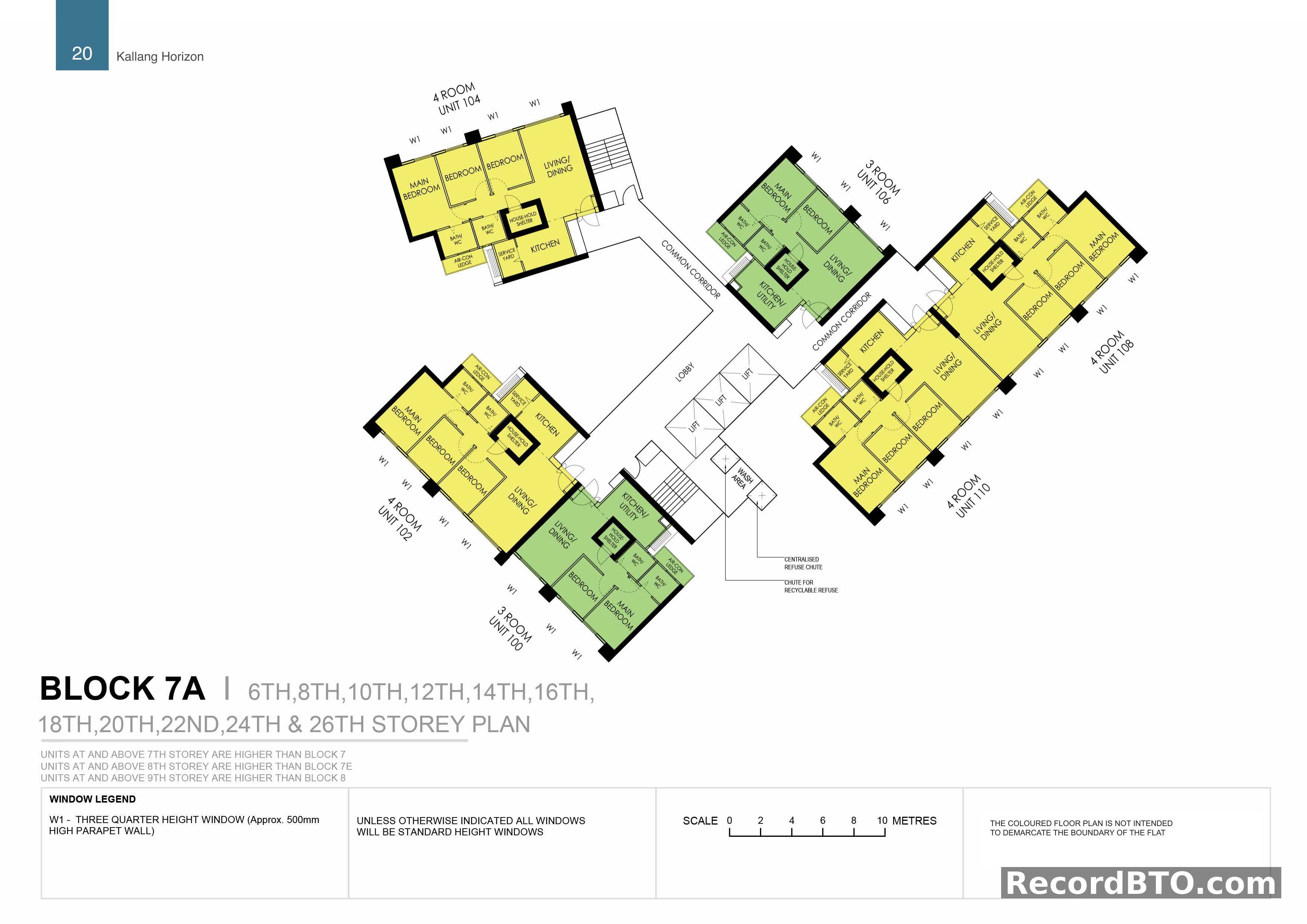

Block 7A: 6th-26th Storey Floor Plans

Floor plan for Block 7A, applicable to the 6th, 8th, 10th, 12th, 14th, 16th, 18th, 20th, 22nd, 24th, and 26th storeys. The layout features six units per floor arranged around a central common corridor, lobby, and three lifts. Unit types and numbers: - 3-Room flats: Units 100 and 106. These include a main bedroom, one additional bedroom, living/dining area, kitchen/utility, two bathrooms, and a household shelter. - 4-Room flats: Units 102, 104, 108, and 110. These comprise a main bedroom, two additional bedrooms, living/dining area, kitchen, two bathrooms, a household shelter, and a service yard. Common amenities shown include a wash area, centralised refuse chute, and a chute for recyclable refuse. Window legend indicates 'W1' as a three-quarter height window (approx. 500mm high parapet wall), with all other windows being standard height unless specified. Units at and above the 7th storey are higher than Block 7, units at and above the 8th storey are higher than Block 7E, and units at and above the 9th storey are higher than Block 8.

Block 7A Floor Plans: 7th, 11th, 15th, 19th & 23rd Storey

Floor plan for Block 7A, covering the 7th, 11th, 15th, 19th, and 23rd storeys. Unit types available: - 3-Room flats: Units 100 and 106. Each includes a main bedroom, one additional bedroom, living/dining area, kitchen/utility, two bath/WCs, household shelter, and air-con ledge. - 4-Room flats: Units 102, 104, 108, and 110. Each features a main bedroom, two additional bedrooms, living/dining area, kitchen, service yard, two bath/WCs, household shelter, and air-con ledge. The central core provides access to all units via a lobby with three lifts and common corridors. Amenities include a wash area, centralised refuse chute, and a separate chute for recyclable refuse. Units at and above the 7th storey are noted as being higher than Block 7, above 8th storey higher than Block 7E, and above 9th storey higher than Block 8. Windows marked 'W1' are three-quarter height (approx. 500mm high parapet wall), with all other windows being standard height unless specified.

Block 7A: 27th Storey Floor Plan with 3- and 4-Room Units

Floor plan for Block 7A on the 27th storey. The floor features four residential units: - Three 4-Room units (Units 104, 108, 110), each comprising a main bedroom, two additional bedrooms, living/dining area, kitchen, household shelter, service yard, and two bathrooms/WCs. - One 3-Room unit (Unit 106), comprising a main bedroom, one additional bedroom, living/dining area, kitchen/utility, household shelter, and two bathrooms/WCs. Common facilities include a central lobby with three lifts, common corridors, a wash area, and centralised refuse chutes (including a chute for recyclable refuse). A roof garden is located on the 27th storey, accessible from the 28th storey. Window type 'W1' indicates a three-quarter height window (approximately 500mm high parapet wall). All other windows are standard height unless specified. The colored floor plan is not intended to demarcate the flat boundary.

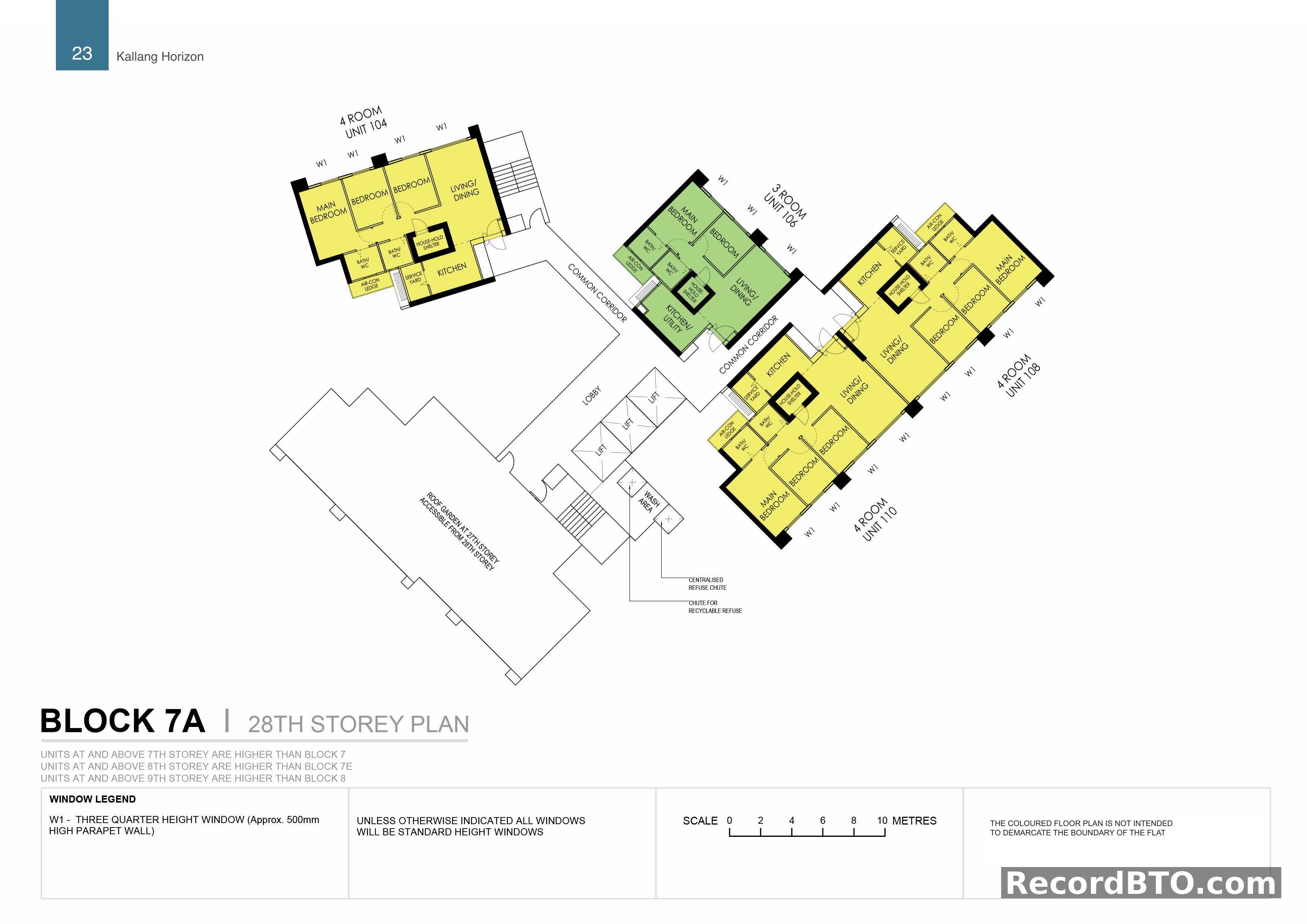

Block 7A: 28th Storey Floor Plan

Floor plan for Block 7A, 28th storey, featuring four residential units and common facilities. Unit types include: - 4-Room flats: Unit 104, Unit 108, Unit 110. Each contains a main bedroom, two additional bedrooms, living/dining area, kitchen, service yard, household shelter, two bathrooms, and an air-con ledge. - 3-Room flat: Unit 106. Features a main bedroom, one additional bedroom, living/dining area, kitchen/utility, household shelter, two bathrooms, and an air-con ledge. Common facilities on this floor include a lobby with three lifts, a wash area, and centralized refuse chutes. A roof garden on the 27th storey is accessible from this level. Windows marked 'W1' are three-quarter height (approx. 500mm high parapet wall).

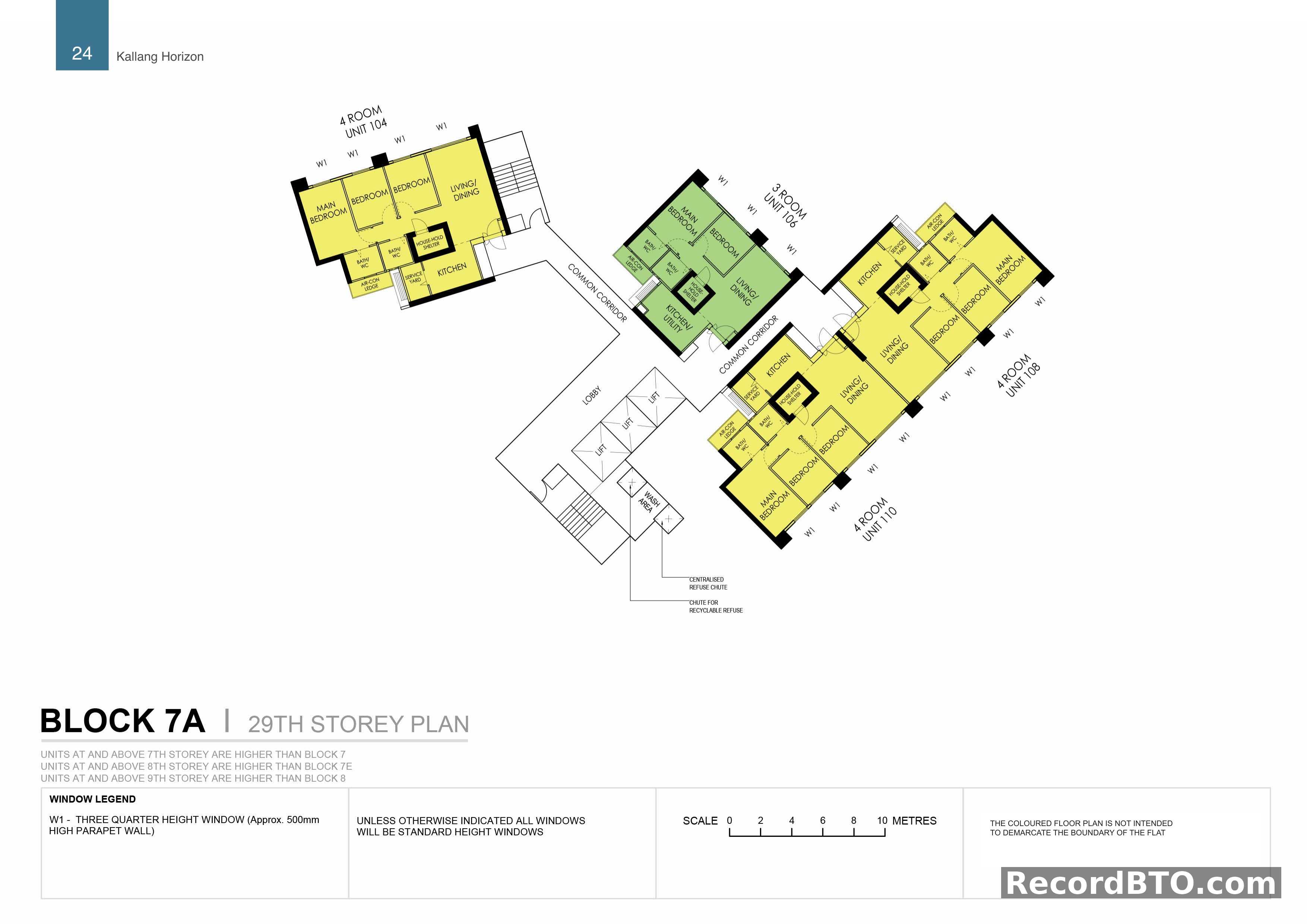

Block 7A: 29th Storey Floor Plans for 3- and 4-Room Units

Floor plan for Block 7A, 29th storey, featuring four residential units. Unit types and layouts: - 4-Room (Units 104, 108, 110): Each includes a main bedroom, two additional bedrooms, living/dining area, kitchen, two bathrooms, household shelter, service yard, and air-con ledge. - 3-Room (Unit 106): Features a main bedroom, one additional bedroom, living/dining area, kitchen/utility, two bathrooms, household shelter, and air-con ledge. The units are arranged around a common corridor and lobby area, which provides access to three lifts, a staircase, and a wash area. Centralised refuse chutes are also located in the common area. Windows marked 'W1' are three-quarter height (approximately 500mm high parapet wall), while others are standard height. The plan notes that units at and above the 7th, 8th, and 9th storeys are higher than Blocks 7, 7E, and 8 respectively. A scale bar indicates measurements in meters.

Block 7B: 2nd Storey Floor Plan with 4-Room Units

2nd storey floor plan for Block 7B, featuring three 4-Room residential units: Unit 114, Unit 116, and Unit 118. Each 4-Room unit includes: - Main Bedroom - Two additional Bedrooms - Living/Dining area - Kitchen - Household Shelter - Service Yard - Two Bath/WCs - Air-con ledge Common facilities on this level comprise a lobby with three lifts, a common corridor, a wash area, and centralised refuse chutes for general and recyclable waste. Portions of the floor plan indicate roof areas at the 2nd storey level. Windows marked W1 are three-quarter height (approx. 500mm high parapet wall). Units at and above the 7th storey are noted to be higher than Block 7, and units at and above the 9th storey are higher than Block 8.

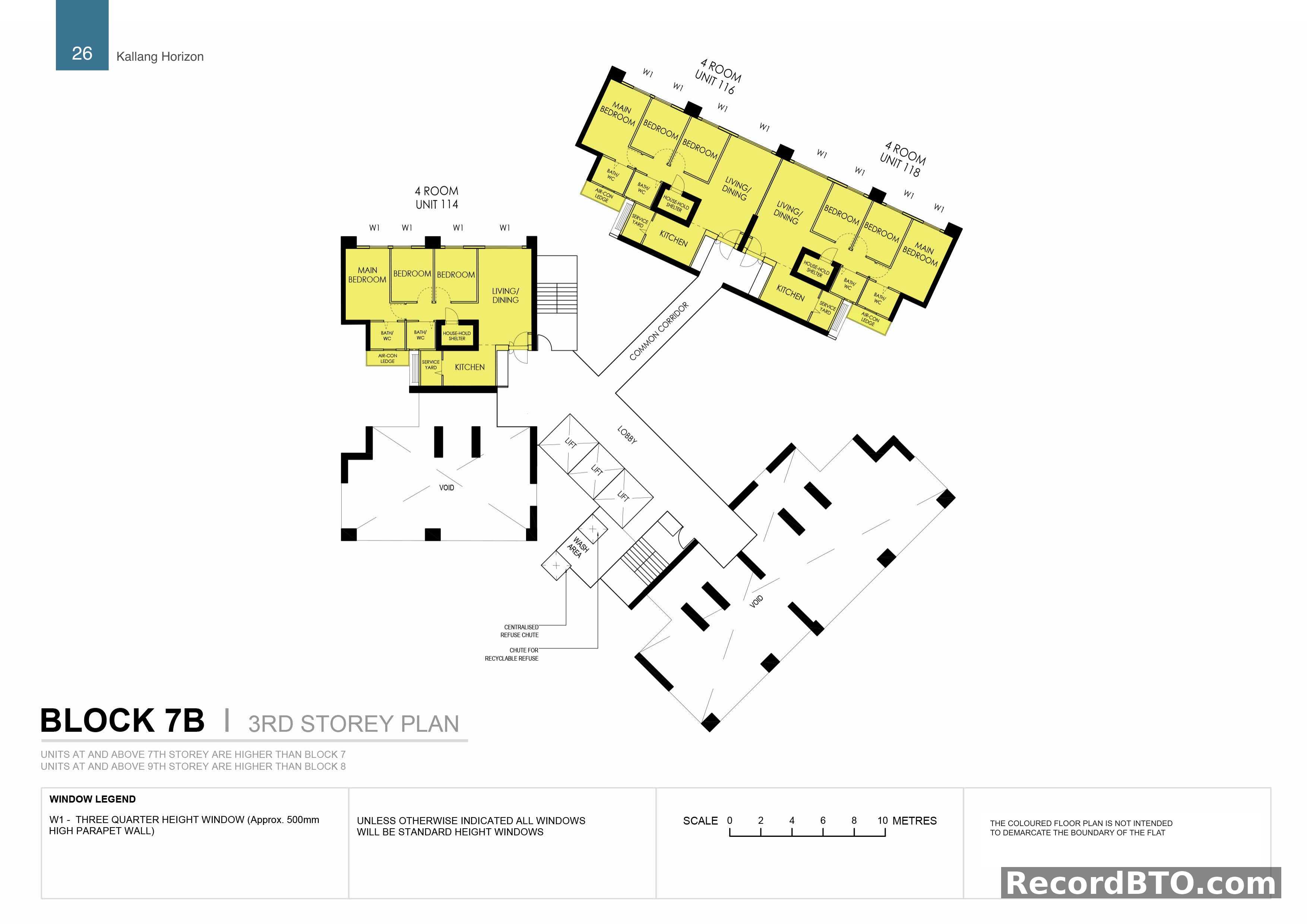

Block 7B: 3rd Storey Floor Plan with 4-Room Units

Floor plan for Block 7B, specifically the 3rd storey. Three 4-Room units are displayed: Unit 114, Unit 116, and Unit 118. Each 4-Room unit features a main bedroom, two additional bedrooms, a living/dining area, a kitchen, two bathrooms (Bath/WC), a household shelter, a service yard, and an air-con ledge. The common area includes a lobby with three lifts, a staircase, and a wash area. Centralised refuse chutes are available, with a separate chute for recyclable refuse. Units at and above the 7th storey are higher than Block 7, and units at and above the 9th storey are higher than Block 8. Window W1 indicates a three-quarter height window (approx. 500mm high parapet wall); all other windows are standard height.

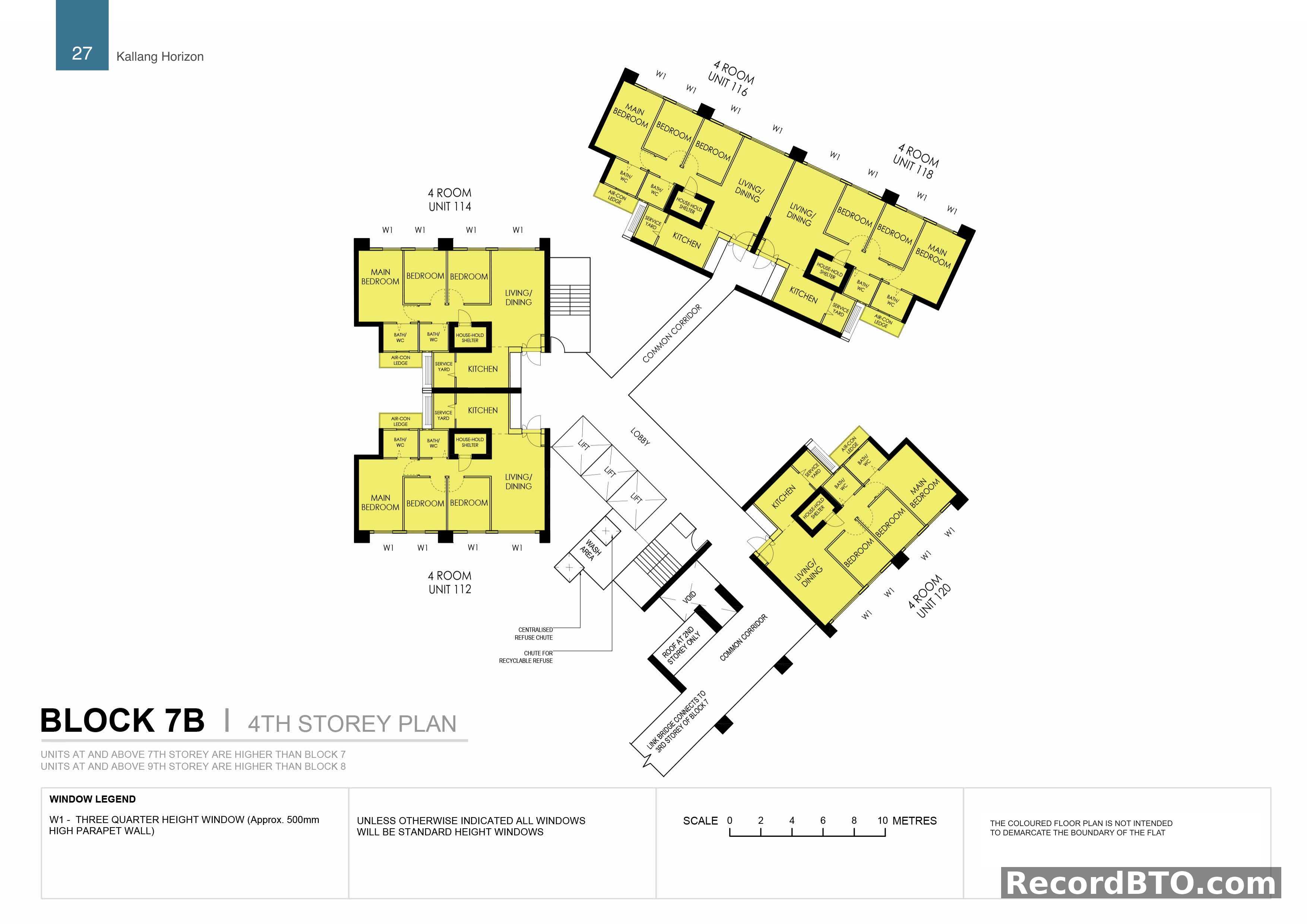

Block 7B: 4th Storey 4-Room Floor Plan

Floor plan for Block 7B, 4th storey, featuring four 4-Room units. Units available: 112, 114, 116, and 120. Each 4-Room unit includes a main bedroom, two additional bedrooms, two bathrooms (Bath/WC), a living/dining area, kitchen, household shelter, service yard, and air-con ledge. Common facilities on this floor include a central lobby with three lifts, a staircase, a wash area, and centralized refuse chutes (both general and recyclable). Notes indicate that units at and above the 7th storey are higher than Block 7, and units at and above the 9th storey are higher than Block 8. A link bridge connects to the 3rd storey of Block 7. The plan also specifies W1 windows as three-quarter height (approx. 500mm high parapet wall).

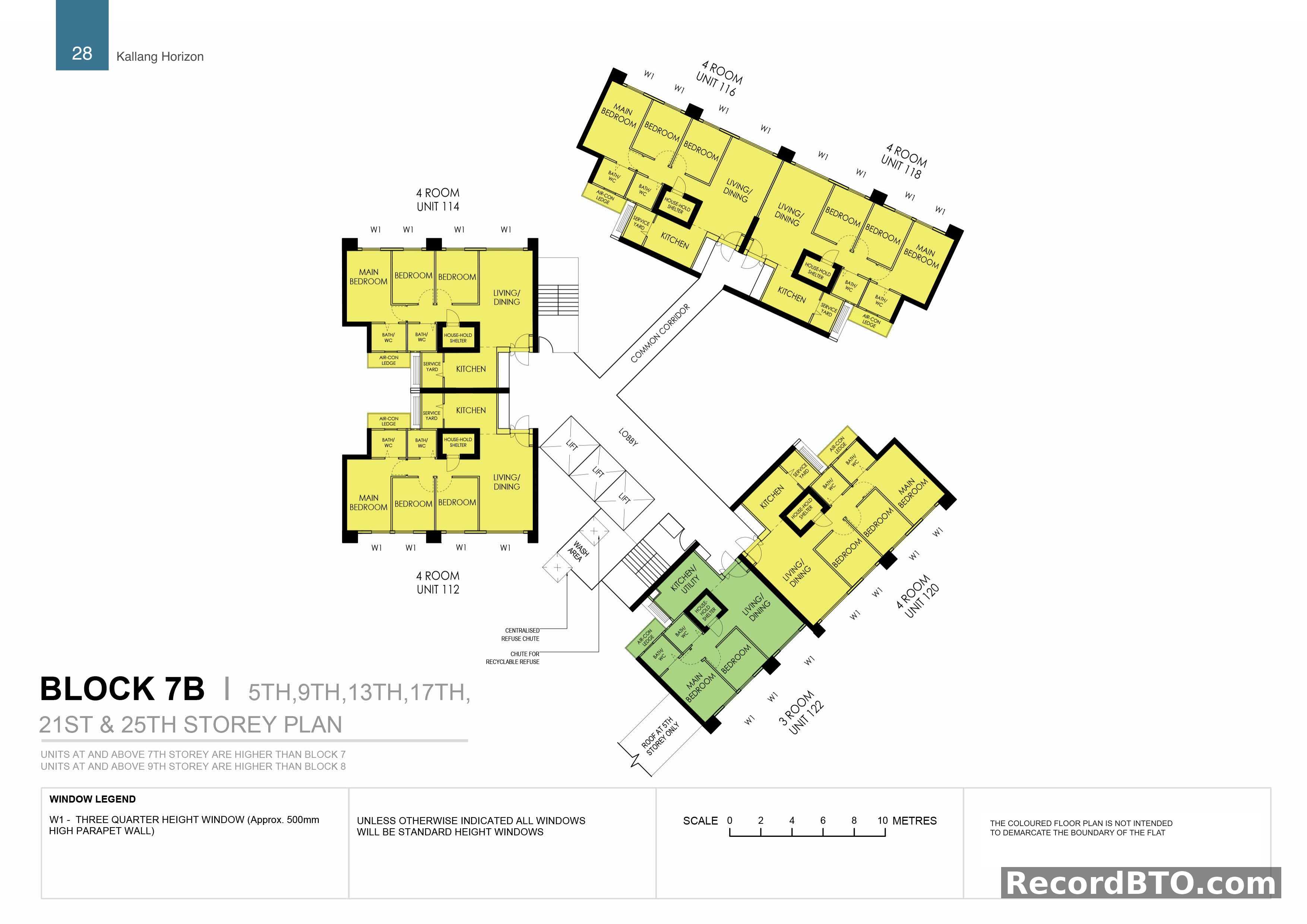

Block 7B: 5th, 9th, 13th, 17th, 21st & 25th Storey Floor Plans

Floor plans for Block 7B, covering the 5th, 9th, 13th, 17th, 21st, and 25th storeys. Unit types available: - 4-Room flats: Units 112, 114, 116, 118, 120. Each typically includes a main bedroom, two additional bedrooms, living/dining area, kitchen, service yard, household shelter, and two bathrooms. - 3-Room flat: Unit 122. This unit features a main bedroom, one additional bedroom, living/dining area, kitchen/utility, service yard, household shelter, and two bathrooms. Common facilities on these floors include a central lobby with lifts and stairs, a common corridor, a wash area, and chutes for both general and recyclable refuse. Window specifications note 'W1' as a three-quarter height window (approx. 500mm high parapet wall), with other windows being standard height unless indicated. Units at and above the 7th storey are higher than Block 7, and units at and above the 9th storey are higher than Block 8. A scale bar indicates measurements up to 10 metres.

Block 7B: Multi-Storey Floor Plan for 3- and 4-Room Units

Floor plan for Block 7B covering the 6th, 8th, 10th, 12th, 14th, 16th, 18th, 20th, 22nd, 24th & 26th storeys. Unit types and numbers shown: - 4-Room flats: Units 112, 114, 116, 118, 120 - 3-Room flat: Unit 122 All 4-Room units feature a main bedroom, two additional bedrooms, living/dining area, kitchen, service yard, household shelter, and two bathrooms (bath/WC). The 3-Room unit (122) includes a main bedroom, one additional bedroom, living/dining area, kitchen/utility, household shelter, and two bathrooms. Common facilities include a central lobby with three lifts, staircases, a wash area, and centralized refuse chutes (including one for recyclable refuse). Window Legend: W1 indicates a three-quarter height window (approx. 500mm high parapet wall). All other windows are standard height unless indicated. Note: Units at and above 7th storey are higher than Block 7. Units at and above 9th storey are higher than Block 8. The scale bar indicates measurements up to 10 metres.

Block 7B: 7th, 11th, 15th, 19th & 23rd Storey Floor Plans

Floor plans for Block 7B, covering the 7th, 11th, 15th, 19th, and 23rd storeys. The layout features six units per floor, arranged around a central core with lifts, stairwells, and a common corridor. Unit types include: - 4-Room flats (Units 112, 114, 116, 118, 120): Each comprises a main bedroom, two additional bedrooms, living/dining area, kitchen, two bathrooms, household shelter, and service yard. - 3-Room flat (Unit 122): Features a main bedroom, one additional bedroom, living/dining area, kitchen/utility, two bathrooms, household shelter, and service yard. All units include air-con ledges. Windows marked 'W1' are three-quarter height (approx. 500mm high parapet wall), with others being standard height. Centralised refuse chutes and a chute for recyclable refuse are located near the common areas. A scale bar indicates dimensions up to 10 metres. Units on these floors are noted to be higher than adjacent blocks 7 and 8.

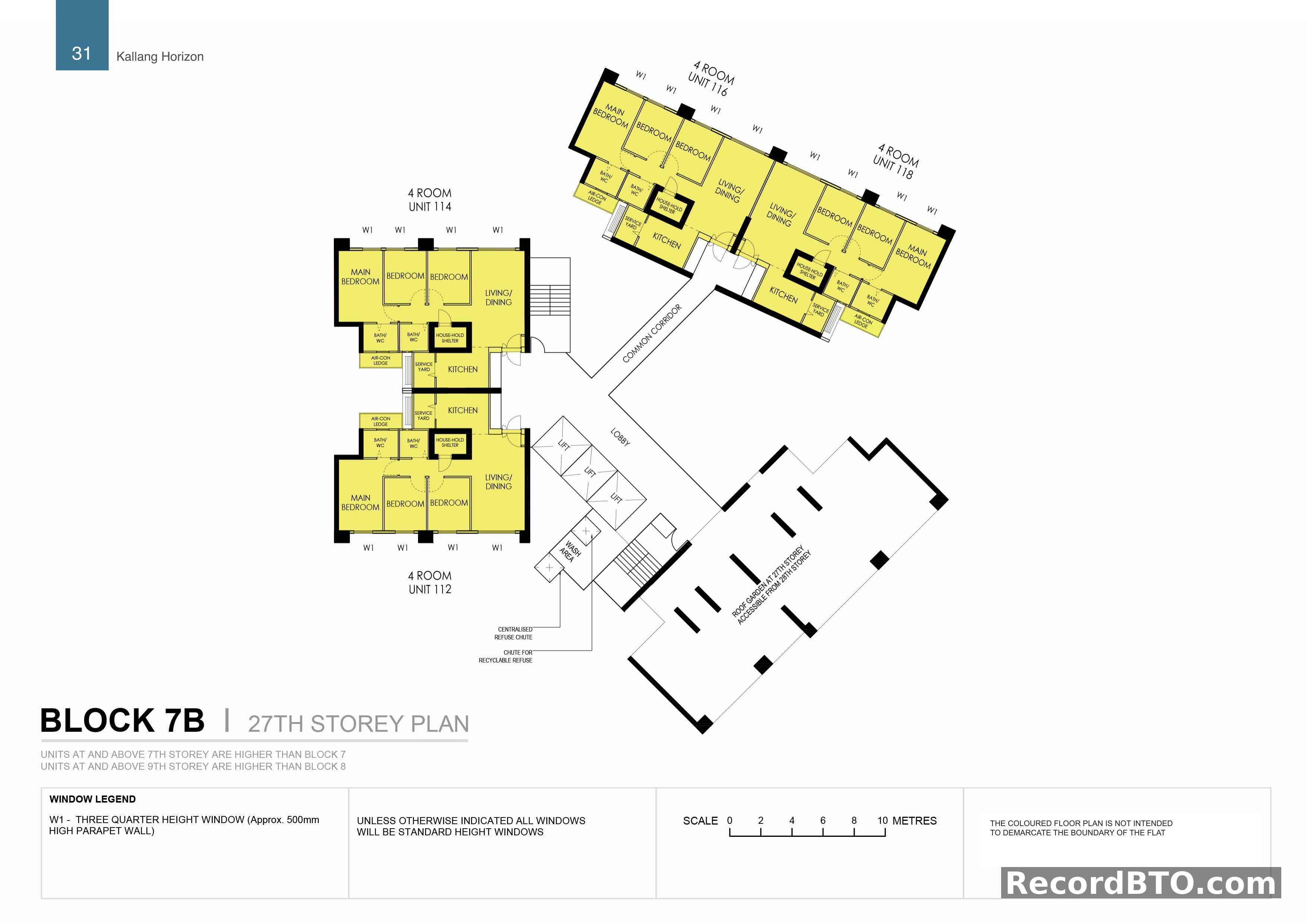

Block 7B: 27th Storey Floor Plan for 4-Room Units

27th storey floor plan for Block 7B. Unit types available on this floor are 4-Room flats, specifically Units 112, 114, 116, and 118. Each 4-Room unit includes a main bedroom, two additional bedrooms, a living/dining area, kitchen, two bathrooms (BATH/WC), a household shelter, service yard, and an air-con ledge. Common facilities on this level feature a lobby with three lifts, a common corridor, a wash area, a centralised refuse chute, and a chute for recyclable refuse. A roof garden is located on the 27th storey, accessible from the 28th storey. Units on this floor are higher than Block 7 (from 7th storey upwards) and Block 8 (from 9th storey upwards). Windows marked 'W1' are three-quarter height (approx. 500mm high parapet wall), while others are standard height. A scale bar indicates measurements in metres.

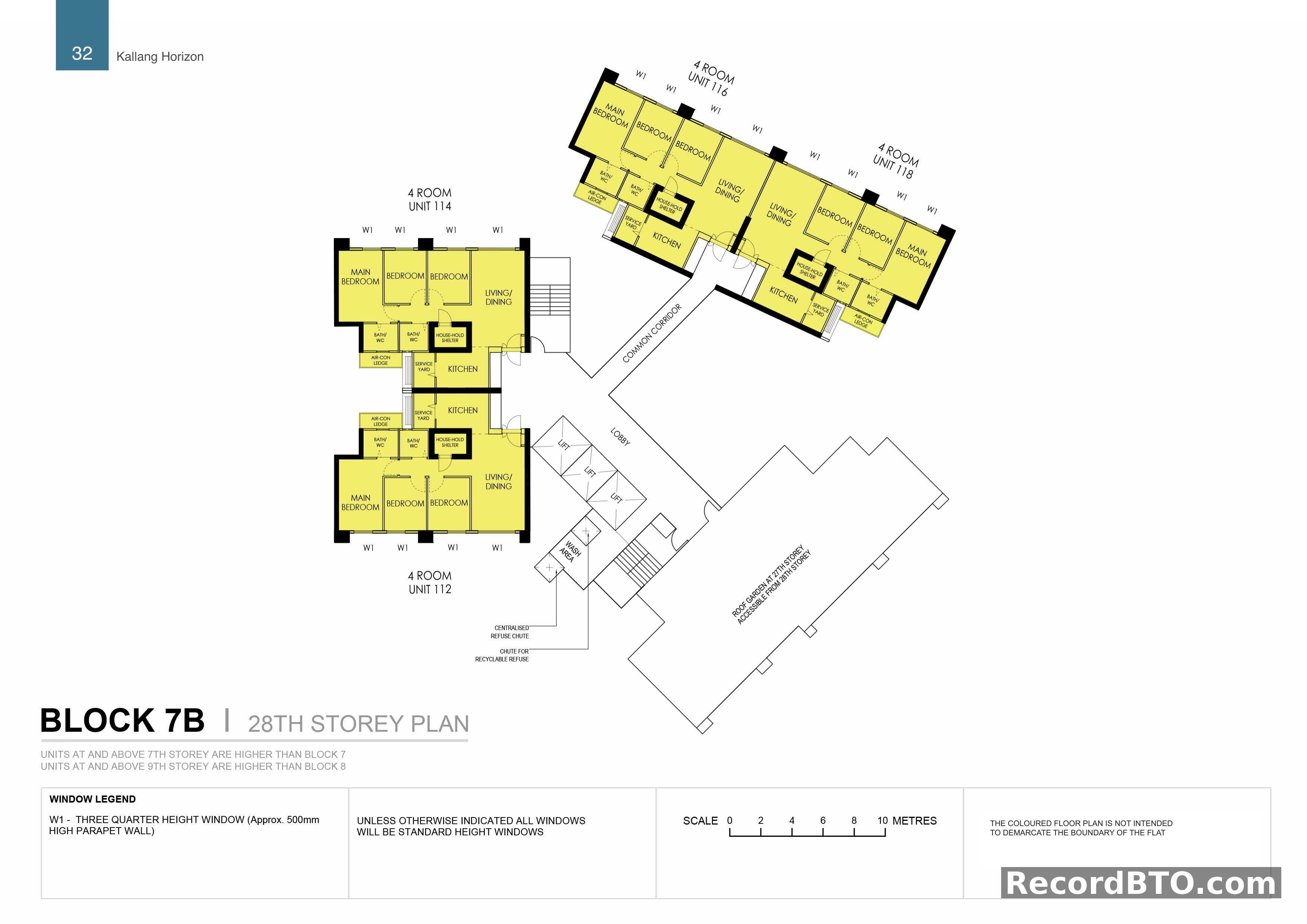

Block 7B: 28th Storey Floor Plan with 4-Room Units

28th storey floor plan for Block 7B, featuring four 4-Room units: 112, 114, 116, and 118. Each 4-Room unit includes a main bedroom, two common bedrooms, living/dining area, kitchen, two bathrooms, a household shelter, service yard, and air-con ledge. The floor's common facilities comprise a lobby with three lifts, a common corridor, and a wash area with centralized refuse chutes for both general and recyclable refuse. A roof garden is located on the 27th storey and is accessible from this 28th storey. Units on this floor are noted to be higher than specific lower blocks (Block 7 from 7th storey, Block 8 from 9th storey). W1 indicates a three-quarter height window (approx. 500mm parapet wall).

Block 7B: 29th Storey Floor Plan

29th storey floor plan for Block 7B. The floor features four 4-Room units: Units 112, 114, 116, and 118. Each 4-Room unit includes a main bedroom, two common bedrooms, a living/dining area, kitchen, household shelter, service yard, two bathrooms (BATH/WC), and an air-con ledge. Common facilities on this floor include a central lift lobby with multiple lifts, a common corridor, a wash area, a centralised refuse chute, and a separate chute for recyclable refuse. Notes indicate that units at and above the 7th storey are higher than Block 7, and units at and above the 9th storey are higher than Block 8. The window legend specifies "W1" as a three-quarter height window (approx. 500mm high parapet wall), with all other windows being standard height unless indicated. A scale bar is provided for reference.

Block 7C: 2nd Storey Floor Plan

2nd storey floor plan for Block 7C. All units are 4-Room flats, specifically units 124, 126, 128, 130, and 132. Each 4-Room unit features a living/dining area, kitchen, household shelter, service yard, one main bedroom, two common bedrooms, and two bathrooms. Units 126 and 130 include a balcony. Common facilities on this level comprise a lobby with three lifts, a wash area, and a centralised refuse chute with a separate chute for recyclable refuse. Areas marked "ROOF AT 2ND STOREY ONLY" indicate non-habitable roof space. A note indicates that units at and above the 7th storey are higher than Block 7. Windows marked W1 are three-quarter height (approx. 500mm high parapet wall).

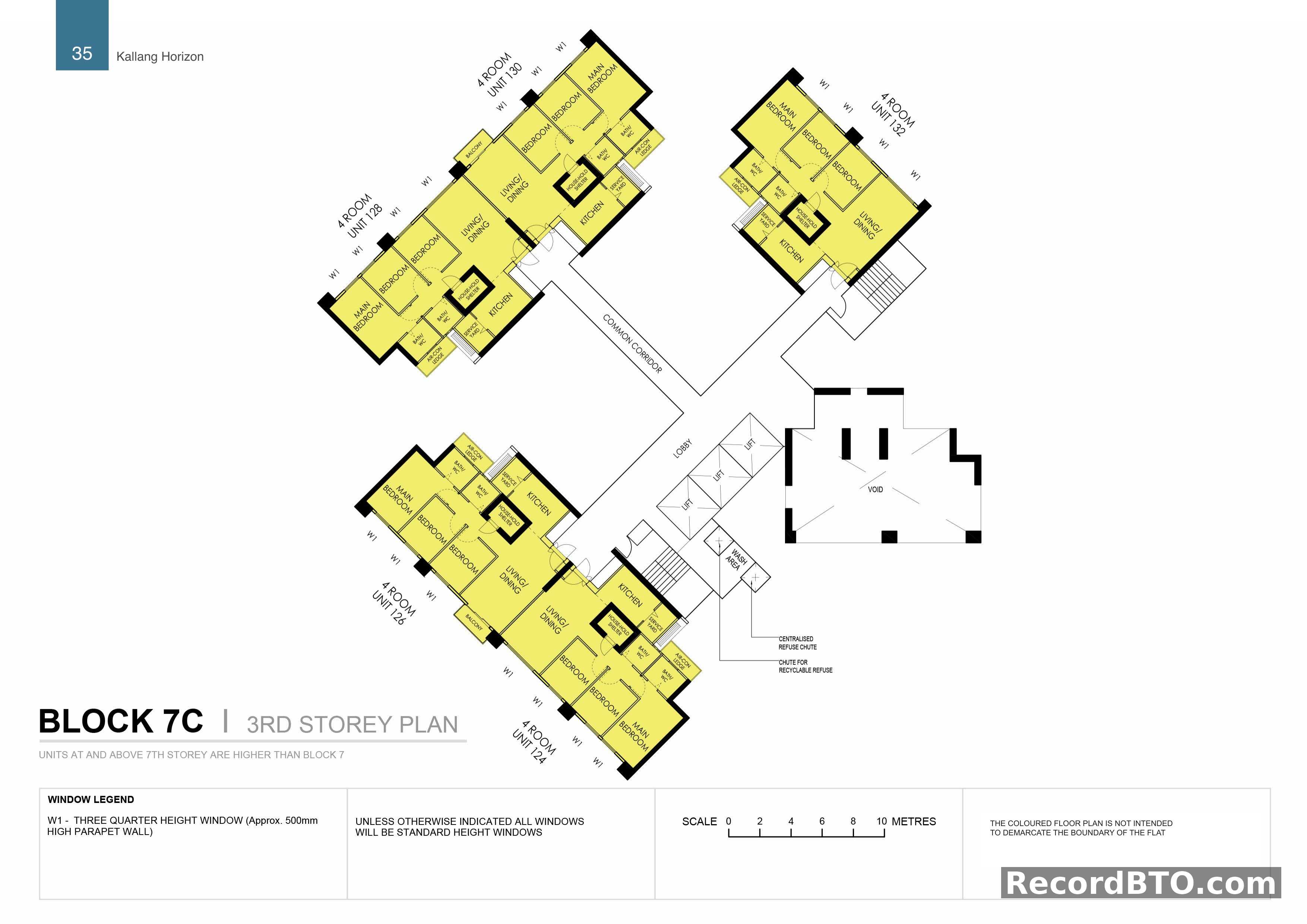

Block 7C: 3rd Storey Floor Plan

3rd storey floor plan for Block 7C, part of the Kallang Horizon project. This level features five 4-Room units: Units 124, 126, 128, 130, and 132. Each 4-Room unit includes: Living/Dining area, Kitchen, Main Bedroom, two additional Bedrooms (total 3 bedrooms), two Bath/WC, a Household Shelter, Service Yard, and Air-con Ledge. Units 126 and 130 also feature a Balcony. Common facilities include a central lobby with three lifts, stairwells, a wash area, a centralised refuse chute, and a separate chute for recyclable refuse. Units at and above the 7th storey are noted to be higher than Block 7. Windows labeled 'W1' are three-quarter height (approx. 500mm high parapet wall), while all other windows are standard height.

Block 7C: 4th Storey Floor Plan

4th storey floor plan for Block 7C, featuring five 4-Room units. Unit types and numbers: - 4-Room flats: Units 126, 128, 130, 132, 134. Each 4-Room unit includes a living/dining area, kitchen, household shelter, service yard, air-con ledge, two bathrooms (Bath/WC), a main bedroom, and two additional bedrooms. Units 126 and 130 also feature a balcony. The common area comprises a lobby with three lifts, stairwells, common corridors, a wash area, a centralised refuse chute, and a chute for recyclable refuse. A linkbridge connects this level to the 3rd storey of Block 7. Units at and above the 7th storey in Block 7C are noted to be higher than Block 7. Windows marked 'W1' are three-quarter height (approx. 500mm high parapet wall); all other windows are standard height.

Block 7C: 5th, 9th, 13th, 17th, 21st, 25th & 29th Storey Floor Plans

Floor plan for Block 7C, applicable to the 5th, 9th, 13th, 17th, 21st, 25th, and 29th storeys. Six 4-Room units are displayed: Units 124, 126, 128, 130, 132, and 134. Each 4-Room unit includes a Living/Dining area, Kitchen, Main Bedroom, two additional Bedrooms, two Bath/WCs, a Household Shelter, Service Yard, and Air-Con Ledge. Units 126 and 130 also feature a balcony. The central common area provides access to three lifts, stairs, a wash area, and a centralised refuse chute with a separate chute for recyclable refuse. Units at and above the 7th storey are noted as being higher than Block 7. Unit 124 specifically indicates 'ROOF AT 5TH STOREY ONLY' for its 5th storey configuration. Windows marked 'W1' are three-quarter height (approx. 500mm high parapet wall).

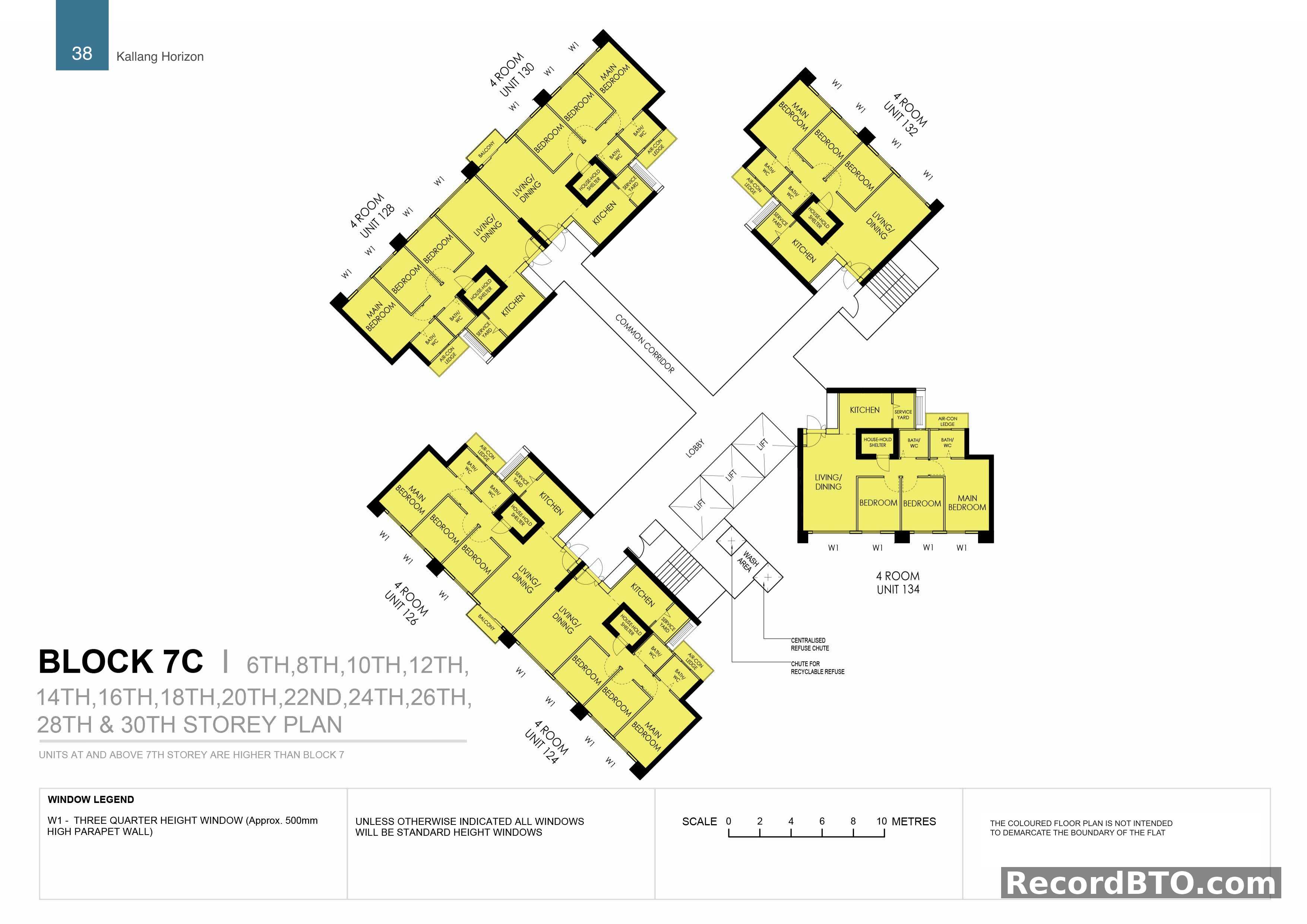

Block 7C: 4-Room Unit Floor Plans for Multiple Storeys

Floor plan for Block 7C, covering the 6th, 8th, 10th, 12th, 14th, 16th, 18th, 20th, 22nd, 24th, 26th, 28th, and 30th storeys. All units depicted are 4-Room flats. The specific units shown are 124, 126, 128, 130, 132, and 134. Each 4-Room unit layout includes a Living/Dining area, Kitchen, Household Shelter, Service Yard, Air-Con Ledge, two Bath/WCs, a Main Bedroom, and two additional Bedrooms. Units 126 and 130 are designed with a balcony. The central common area features a lobby with three lifts, staircases, a wash area, and a centralized refuse chute with a dedicated chute for recyclable refuse. A window legend specifies 'W1' as a three-quarter height window (approximately 500mm high parapet wall), with all other windows being standard height unless noted. Units at and above the 7th storey are higher than Block 7.

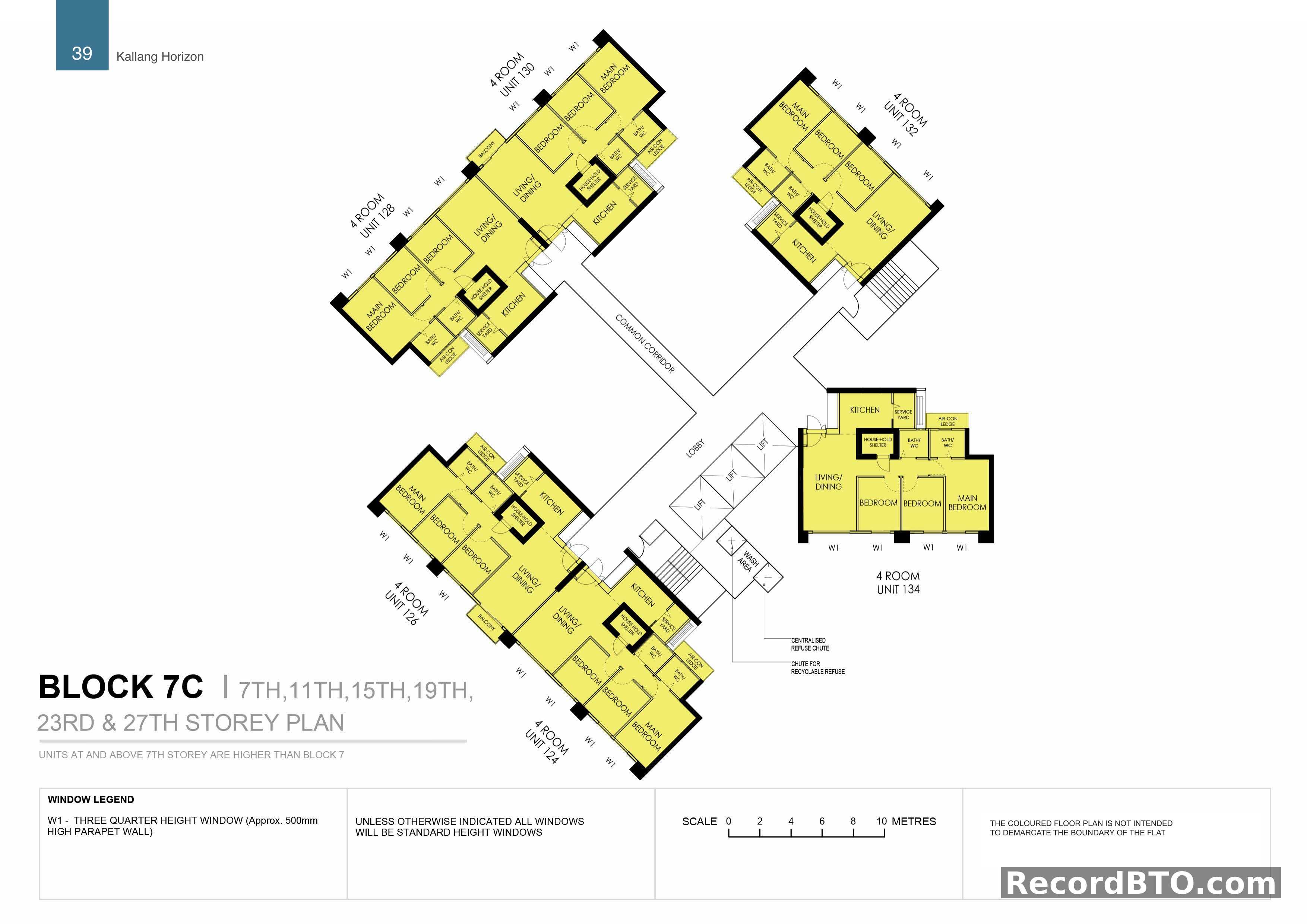

Block 7C: Multi-Storey 4-Room Floor Plans

Floor plan for Block 7C, covering the 7th, 11th, 15th, 19th, 23rd, and 27th storeys. All units shown are 4-Room flats, including units 124, 126, 128, 130, 132, and 134. Each 4-Room unit typically features a Living/Dining area, Kitchen, Main Bedroom, two additional Bedrooms, two Bath/WCs, a Household Shelter, Service Yard, and Air-con Ledge. Units 124, 126, 128, and 130 also include a Balcony. The floor layout includes a common corridor, a central lobby with three lifts, stairs, a wash area, and a centralised refuse chute with a separate chute for recyclable refuse. Units at and above the 7th storey are noted to be higher than Block 7. Windows marked 'W1' are three-quarter height (approx. 500mm high parapet wall), while others are standard height.

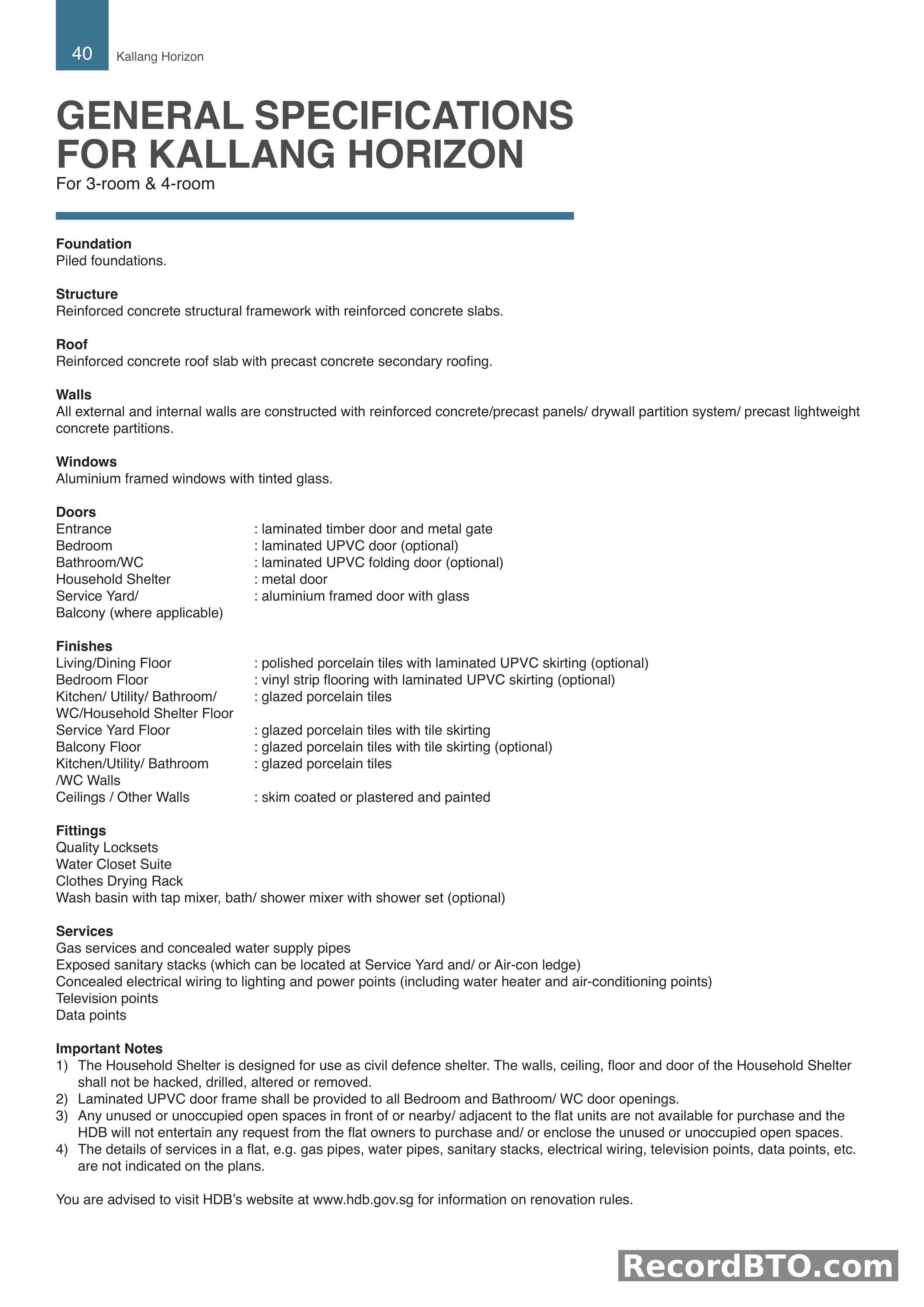

HDB BTO General Specifications: 3-room & 4-room Flats

General specifications for 3-room and 4-room HDB flats. Foundation: Piled. Structure: Reinforced concrete framework and slabs. Roof: Reinforced concrete slab with precast secondary roofing. Walls: Reinforced concrete, precast panels, drywall, or lightweight concrete partitions. Windows: Aluminium framed with tinted glass. Doors: Laminated timber/metal gate for entrance; optional laminated UPVC for bedrooms/bathrooms; metal for household shelter; aluminium framed glass for service yard/balcony. Finishes: Polished porcelain tiles for living/dining; vinyl strip flooring for bedrooms; glazed porcelain tiles for wet areas and household shelter. Walls are glazed porcelain tiles or skim coated/plastered. Fittings: Quality locksets, water closet suite, clothes drying rack, wash basin with tap/mixer, and optional bath/shower mixer. Services: Gas, concealed water supply, exposed sanitary stacks, concealed electrical wiring (lighting, power, water heater, air-con), TV, and data points. Important Notes: Household Shelter is for civil defence and cannot be altered. Unused open spaces are not for purchase/enclosure. Specific service details are not on plans. Refer to HDB website for renovation rules.

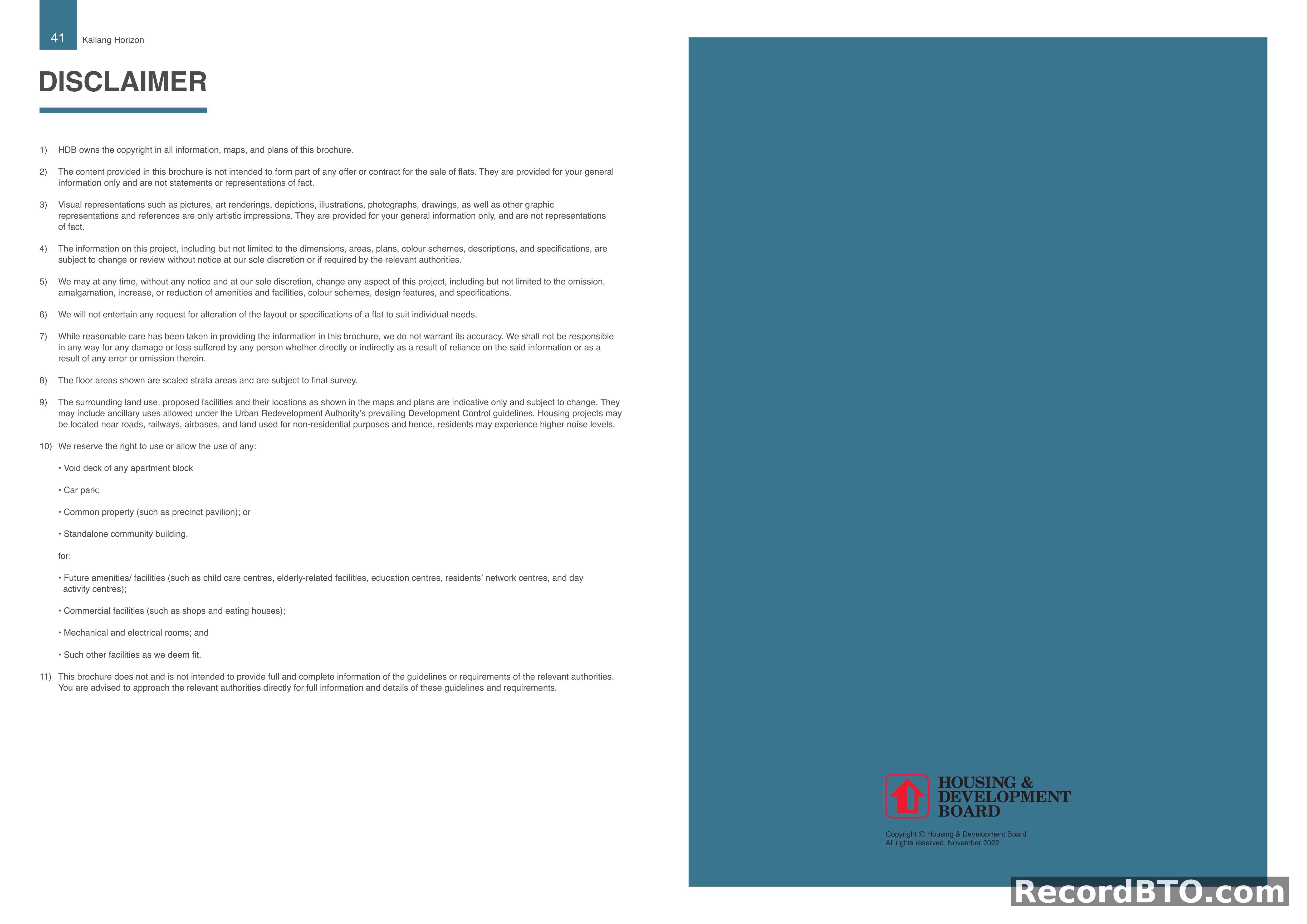

HDB BTO Brochure Disclaimer and Copyright Page

This page contains the official disclaimer and copyright information for the HDB BTO brochure. Key disclaimer points include: - HDB owns copyright of all brochure content. - Content is for general information only, not an offer or contract. - Visual representations are artistic impressions, not factual representations. - Project information (dimensions, plans, colors, specifications) is subject to change. - HDB reserves the right to change project aspects without notice. - No alterations to flat layouts or specifications for individual needs. - HDB does not warrant accuracy and is not responsible for reliance on information. - Floor areas are scaled strata areas, subject to final survey. - Surrounding land use and facilities are indicative and subject to change, potentially leading to higher noise levels. - HDB reserves the right to use void decks, car parks, common property, and standalone community buildings for various amenities (child care, elderly facilities, commercial, mechanical/electrical rooms). - The brochure is not intended to provide full information; users are advised to contact relevant authorities. The page is numbered 41 and indicates the project as 'Kallang Horizon'. Copyright is held by the Housing & Development Board, with all rights reserved as of November 2022.

Optional Component Scheme for 3-Room and Larger Flats

Details of the Optional Component Scheme (OCS) for 3-room and larger HDB flats. This scheme offers optional items for flat buyers on an opt-in basis, with costs added to the flat's selling price. Standard flat inclusions are: - Floor finishes in bathrooms, household shelter, kitchen, and service yard. - Wall tiles in bathrooms and kitchen. - Water closet suite in each bathroom. Optional items available for installation through OCS include: - Floor finishes for living/dining room and bedrooms. - Internal doors. - Sanitary fittings, specifically a wash basin with tap mixer and a shower set with bath/shower mixer. The brochure includes images of a wash basin with tap mixer (two variations) and a handheld shower set with bath/shower mixer. All displays are for reference and subject to change, dated August 2022.
